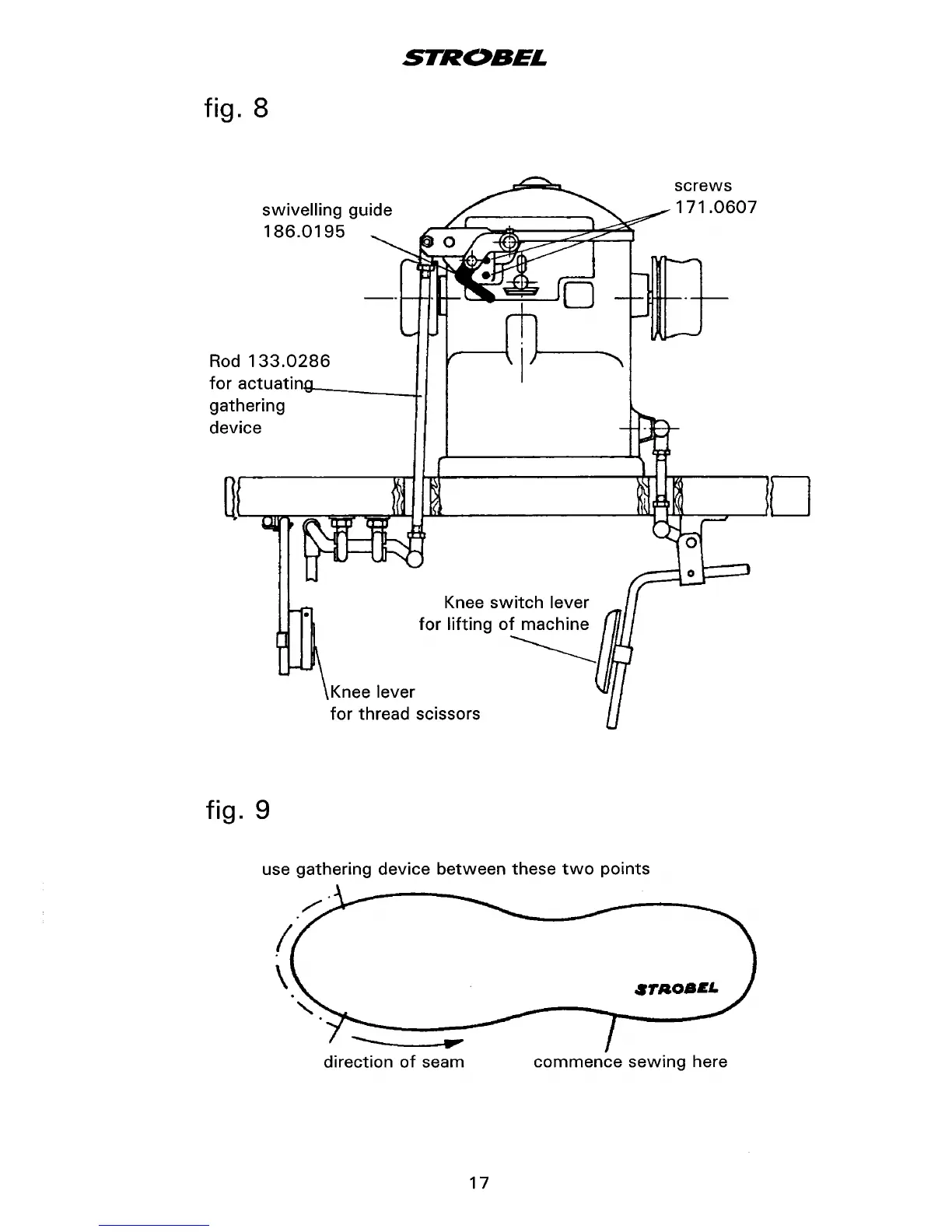

fig. 8
swivelling guide
186.0195
Rod 133.0286
for actuatin,,__ ____ ..J..
gathering
device
fig. 9
Knee lever
Knee switch lever
for lifting of machine
--------
for thread scissors
use gathering device
between these two points
screws
171.0607
direction of seam
commence sewing here
