20 BA_VTD410EV_A2_180706_en

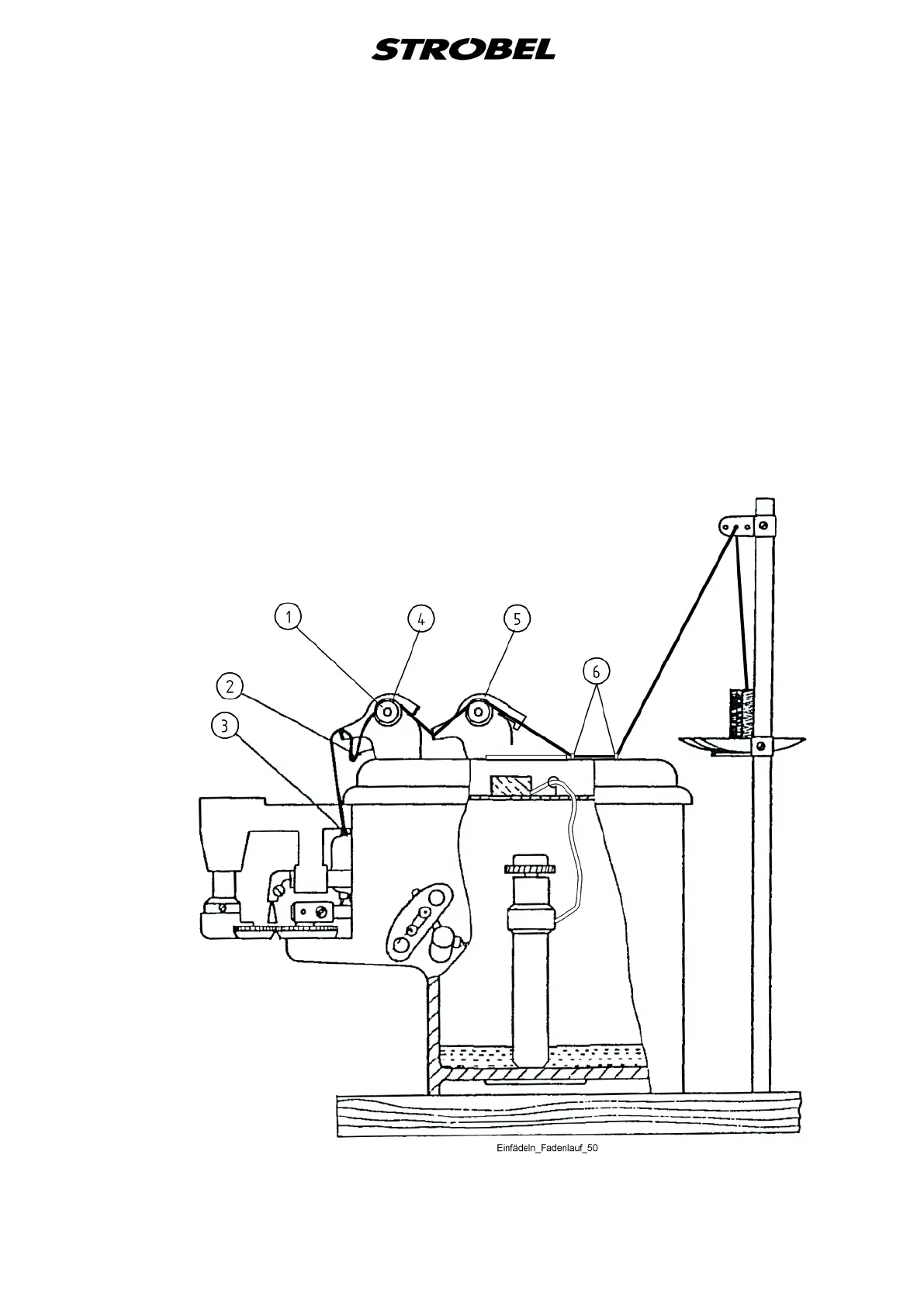

The thread course is as follows (Fig. 11):
Put the thread reel over the supporting bolt of the reel stand and pull the thread
end through the eye of bow. Next, the yarn is passed through two thread guides
(6), and then through the rear eyelets of the yarn guide (8) out (depending on
thread through 1-3 holes) and the thread tension discs (1), through the anterior
eye of the thread guide (8) to the thread tension discs (1) of the front thread
tension, and from there through the thread take-up spring (2) (on certain
materials it may be possible that the thread take-up spring are not threaded
must (2)) and to the front of the thread guide eyelet (7). (Fig. 12).
Then guide the thread through the thread guide tube to the needle bar head;
from there below pin (2) and above the thread clamping screw (3). After guiding
it through the needle clamp plate (4) from the left to the right, guide the thread
through the needle eye from below (Fig. 9).
Fig. 11
