Strong SRT 8211 - Page 3

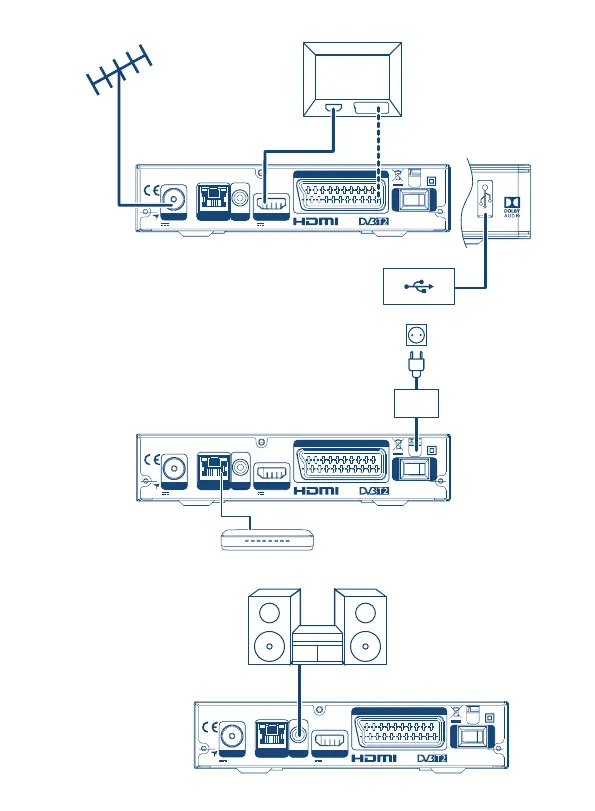

Fig. 7
Fig. 6
Model: Digital Terrestrial HD Receiver SRT 8211
Supplied by STRONG Austria
50 mA max.5 V
ANT IN
500 mA max.USB: 5 V
TV SCART
ETHERNET
HDMI
COAXIAL
S/PDIF
OFF
ON
AC 100-240 V ~
50/60 Hz, 12 W max.
Coaxial cable
Fig. 8
Model: Digital Terrestrial HD Receiver SRT 8211
Supplied by STRONG Austria
50 mA max.5 V
ANT IN
500 mA max.USB: 5 V
TV SCART
ETHERNET
HDMI
COAXIAL
S/PDIF
OFF
ON
AC 100-240 V ~
50/60 Hz, 12 W max.
Router
100-240V~
/12V
Model: Digital Terrestrial HD Receiver SRT 8211
Supplied by STRONG Austria
50 mA max.5 V
ANT IN
500 mA max.USB: 5 V
TV SCART
ETHERNET
HDMI
COAXIAL
S/PDIF
OFF
ON
AC 100-240 V ~
50/60 Hz, 12 W max.
Antenna
Coaxial
cable
HDMI
cable
SCART cable
USB device
