Structural Concepts ENCORE Series - Applicable to Your Case)

10
This unit is self-contained and is designed to allow thorough defrost and interior cleaning.
 Default system of this unit (from manufacturer) is WITHOUT internal evaporator pan.
 Note: Fully assembled Dipwell™ unit MAY NOT reflect your setup at shipment. See illustration below
for specifics on components that may need to attached at installation.
 See CLEANING SCHEDULE (TO BE PERFORMED BY STORE PERSONNEL) section in this
operating manual for Dipwell™ cleaning instructions.

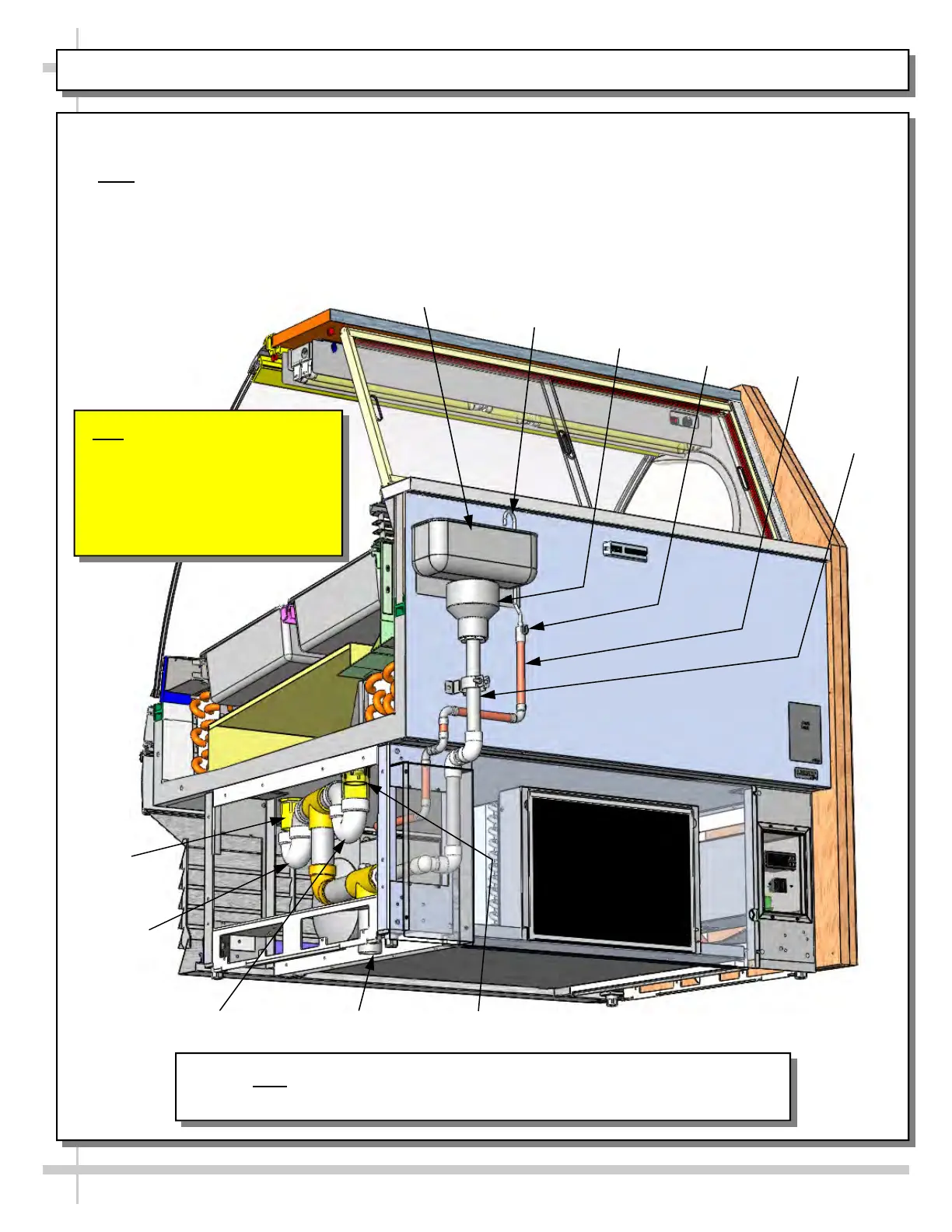

MODEL G12F.5150 DRAIN SYSTEM (Dipwell™ Configuration May Not Be Applicable To Your Case)
Note: Model G12F.5150 Dipwell™ Drain System Shown Above.
Fully Assembled Dipwell™ Drain System May Not Be Applicable To Your Case.
Floor Drain
Front
P-Trap
Front
Drain
Rear Drain Rear P-Trap
*Drain
Funnel
Stainless Steel
Dipwell™ Cistern
*Water
Supply
Piping
*Water
Spout
*Dipwell™
Drain
Piping
*Note: Most Cases Are Shipped With
Dipwell™ Cistern ONLY where
Customers Must Supply Their Own
Drain and Water Connection
Components (Water Spout, Drain
Funnel, Spigot, Water Supply
Piping, Dipwell™ Drain Piping, Etc.)
*Spigot
