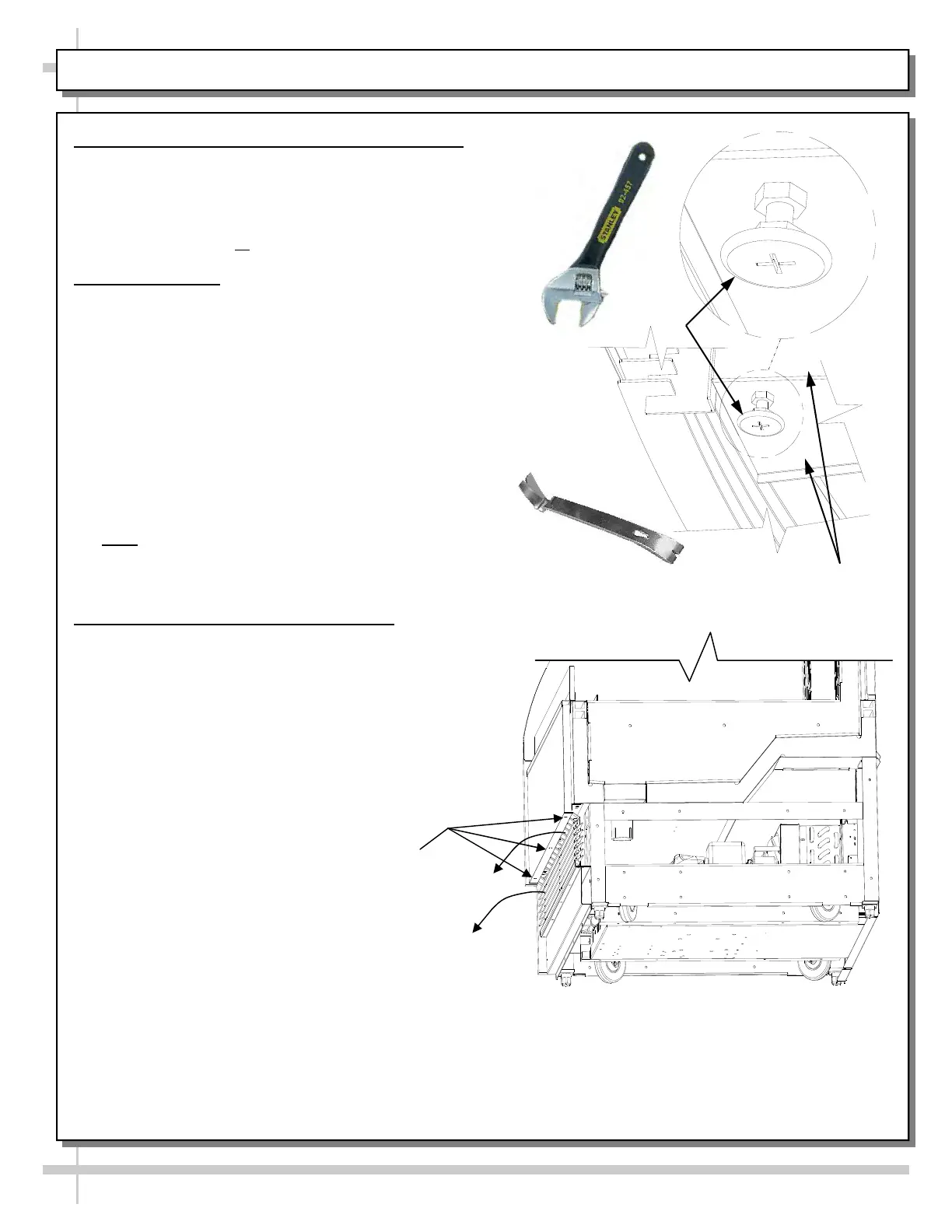

POSITIONING, ALIGNING, LEVELING UNIT, REMOVING FRONT GRILLE
Pry Bar
Base
Frame
Leveler
Adjustable
Wrench
1. Position & Align Case Alongside Other Cases
 Before adjusting levelers, make certain that the
case is in proper position and, if required,
aligned with adjoining case.
 This may require the repositioning of the case
you are installing or
the already positioned case.
2. Adjust Levelers
 After case is in proper position, adjust case so it
is level and plumb (see illustration at right).
 You may need to remove front and/or rear
Toe-Kick to access levelers.
 Use adjustable wrench to adjust leveler.
 Depending upon case weight it may be necessary
to use a Pry Bar to accomplish this task.
 Do not use Pry Bar on Toe-Kick as it may buckle.
 Do not use Pry Bar on End Panel; it may chip.
 Use Pry Bar ONLY on Base Frame to avoid
damaging case.
 See illustration and photos at right.
Note
: Depending upon options and features
chosen, illustrations may not exactly reflect your
particular case’s features.
3. Removing Front Grille (If Necessary)
 Remove screws located at underside of front
panel to access drain or refrigeration lines.

Front Grille will fall forward and can be lifted up
and away from case.

Replace Front Grille in reverse order it was
removed from case.
 See illustration at lower right (may not exactly
reflect every feature or option of your case).
(3) Front Grille
Retainer Screws
