Structural Concepts Harmony HMO7536R - Maintenance Fundamentals - Shelf Assembly; Light Fixtures

13
1. Shelf Assembly Removal
 Remove glass shelves
 For lighted shelving, unplug the light cord.
 Lift light shelf straight up to separate from
brackets.
 Remove rear shelf support
 Remove brackets. Note it may be necessary
to remove the nylon shipping bracket retainer.
Pliers will be required to accomplish this task.
2. Light Fixtures
Removal of lamp:
 Rotate lamp (1/4-turn) either direction to
disengage (upper or lower) pins/contacts from
lamp mounting sockets.
 Remove bulb by applying even pressure from
the back side at the bulb ends and pulling the
remaining contact from the sockets.
Installation of lamp:
 Align pins with slot.
 Insert pins into socket by rotating the bulb
1/4-turn to secure either the (upper or lower)
pinned contacts into the sockets.
 Rotate the remaining bulb contacts (1/4 turn)
into the remaining lamp-mounting socket
contacts.

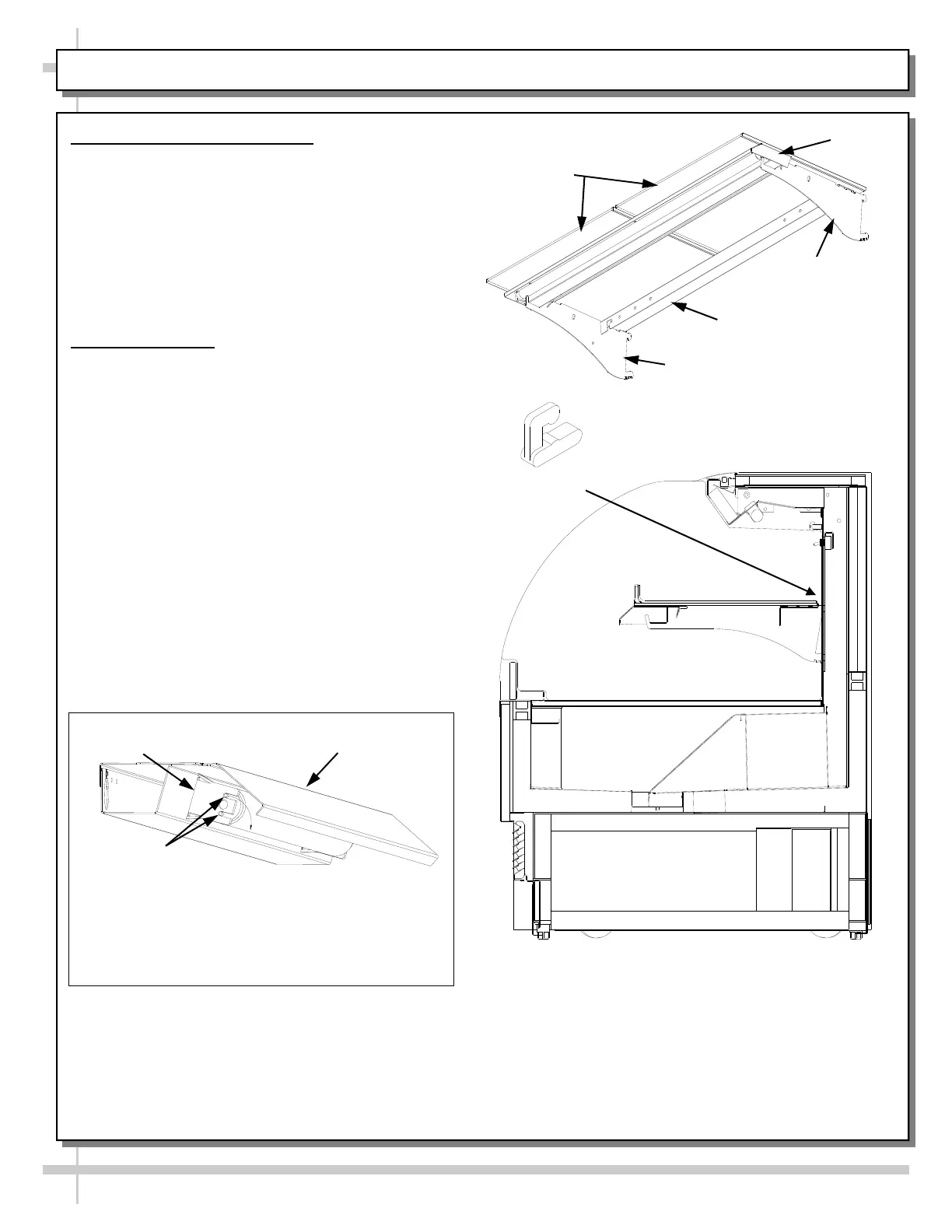

 See illustration below.
MAINTENANCE FUNDAMENTALS - SHELF ASSEMBLY / LIGHT FIXTURES
Lamp Pins
Light Socket
Light Fixture
Sample light fixture shown above. To remove
lamp, simply rotate lamp clockwise and out.
To replace, place one set of pins into slots and
rotate second set of pins into slots.
Shelf Bracket
Rear Shelf Support
Glass
Shelving
Light
Fixture
Shelf Bracket
Bracket
Retainers
