14

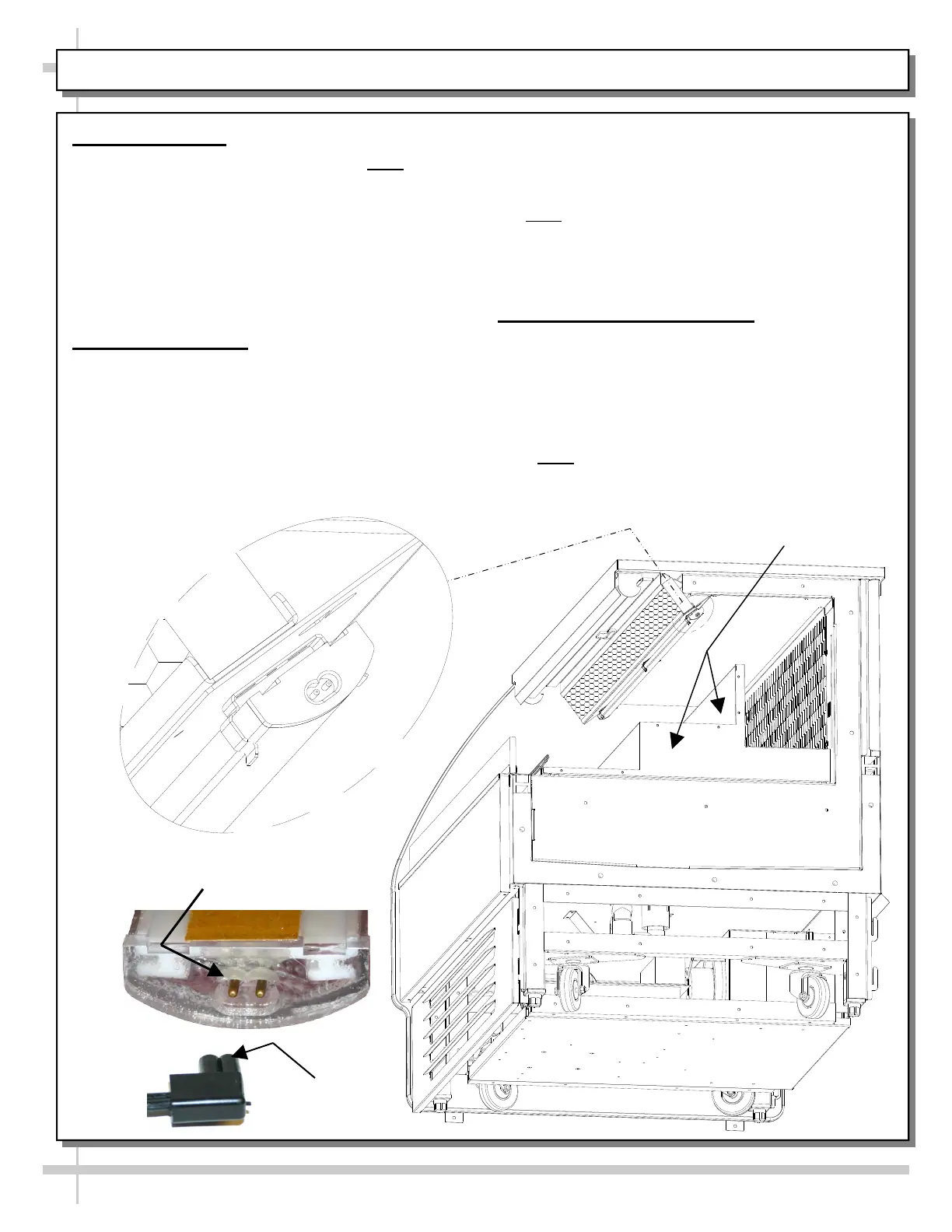

MAINTENANCE FUNDAMENTALS, CONT’D - STEP ASS’Y / LED LIGHT FIXTURE & POWER SUPPLY
Replacement of lamp:
To replace LED Light Fixture, disconnect the
existing LED light from its brackets and
self-adhesive tape. Replace.
Note: LED Light and Plug must be connected in
a specific manner or they will not work. Oval
edge of plug must connect to oval edge of LED
light. See photos below-left.
5. LED Power Supply Access
Disconnect electrical power from unit.
LED driver is located in electrical box (in
same box temperature controller is located).
3. Step Assembly
Step assembly is adjustable and is NOT held in
place by screws or bolts.
Simply lift up and out.
Caution! Remove carefully to avoid scratching or
marring inside of case.
Return to case in same location it was removed.
See Cleaning Schedule section in manual for
specifics on cleaning methods and frequency.
4. LED Light Fixture
Removal of lamp:
This case is provided with LED lights which will
rarely require change-out.
Contact Structural Concepts’ Technical Service
Department for replacement parts (see Technical
Service section of this operating manual).
LED’s Oval Form
Plug’s Oval
Form
Removable
Step Assembly
Note: Model HMO5136R.4716 Shown Below
Your Model May Differ
