Structural Concepts Harmony HMO7536R - Coil Filter

15
MAINTENANCE FUNDAMENTALS, CONTINUED - REAR SLIDING GLASS DOORS / MAGNETIC FILTER
6. Rear Sliding Doors (Ambient Upper)
 Note: Illustration shown reflects model
HMO4836R.5936 only. Illustration is not
applicable to all models in this manual.
 Rear sliding doors may be removed from case
by moving rear doors toward center of case.
Individually lift each door upward (toward top of
case) and pivot bottom of door outward. Lower
door downward and away from case.
 Caution: Gently set doors down to avoid
marring, scraping, scratching or breakage.
 Return rear sliding doors to upper glass enclosure
in reverse order they were removed.
 See next page for upper glass enclosure with
acrylic bins.
7. Magnetic Condenser Coil Filter
 Magnetic condenser coil filter prevents dust and
debris from being ’pulled into’ condenser coil and
causing operational problems.
 See illustration below for general location.
 See CLEANING SCHEDULE (TO BE
PERFORMED BY STORE PERSONNEL) section
in manual for cleaning specifics.

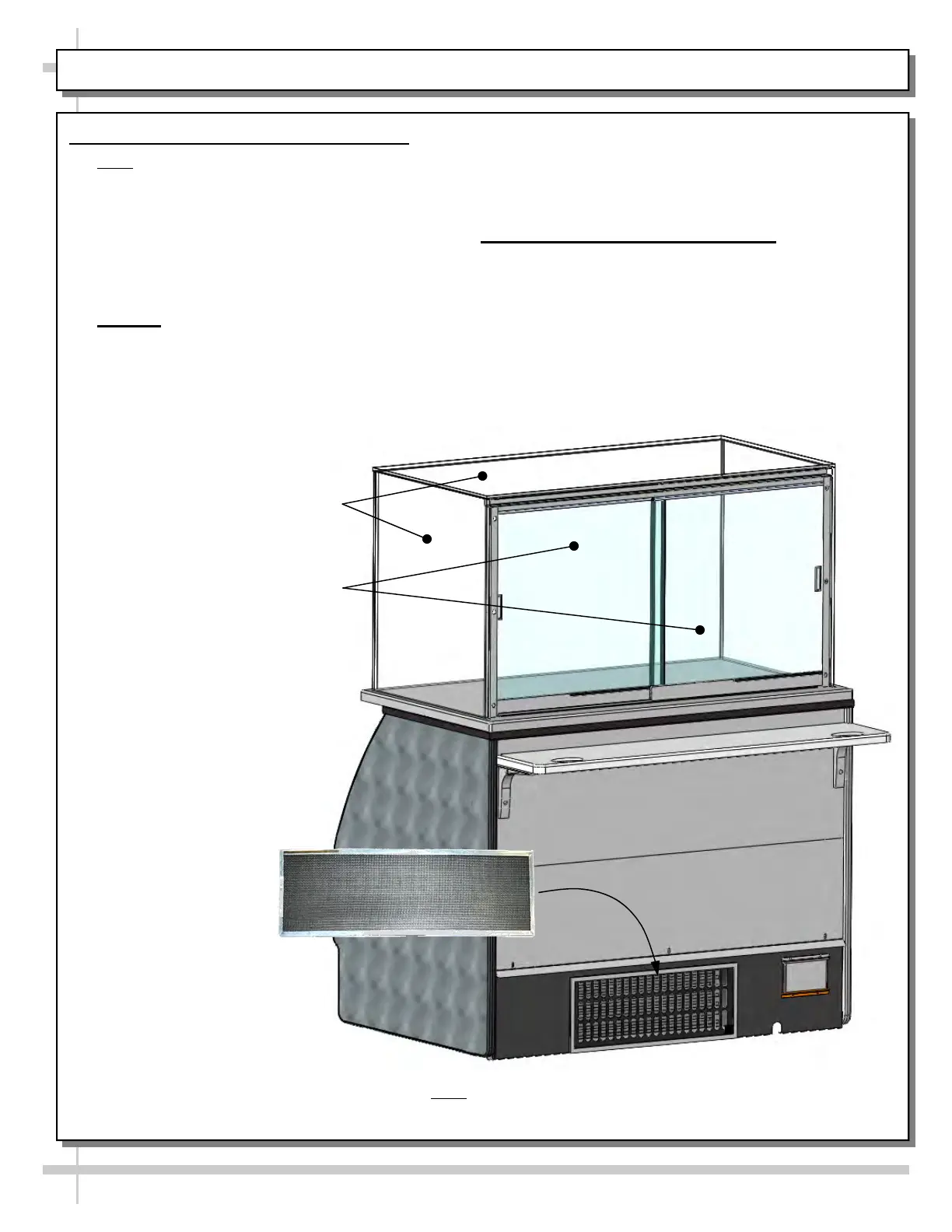

Note: Model HMO4836R.5936 Shown Above
Your Model May Differ
Service Glass
Enclosure
Rear Sliding
Doors
Magnetic Condenser
Coil Filter
