Structural Concepts Harmony HMO7536R - Page 24

24
PREVENTIVE MAINTENANCE (TO BE PERFORMED BY TRAINED SERVICE PROVIDER) - Page 1 of 2
PREVENTIVE
MAINTENANCE
FREQUENCY INSTRUCTIONS
Case Exterior Monthly Condensing Coil:
 Remove rear grille (by removing 4 screws).
 Use air pressure or industrial strength vacuum; clean dust and dirt
that may collect on the Condenser Coil. See illustration below.
 Caution! Coil fins are sharp. Handle with care!
 Replace Rear Grille to case (4 screws).
 See illustration below.
Quarterly Clean Sweep™ Condensing Coil: Disconnect power from case
before cleaning Clean Sweep™ Condenser Coil!
 Remove Rear Grille (by removing 4 screws).
 Slide/Roll out condensing unit assembly.
 Remove the four (4) screws holding the Clean Sweep™ rails intact.
 Remove the Clean Sweep™ rail.
 Wash rails’ brushes in hot water and mild soap solution.
 If brushes are worn, they must be replaced. Call Technical Service
Department to replace. Toll-Free number is listed at end of manual.
 Clean Condensing Coil: Use air pressure or industrial strength
vacuum; clean the dust and dirt that may collect on the Condenser
Coil.
 Caution! Coil fins are sharp. Handle with care!
 Reattach Clean Sweep rail to condensing unit (4 screws).
 Slide/Roll Condensing Unit Assembly back under case.
 Replace Rear Grille to case (4 screws).

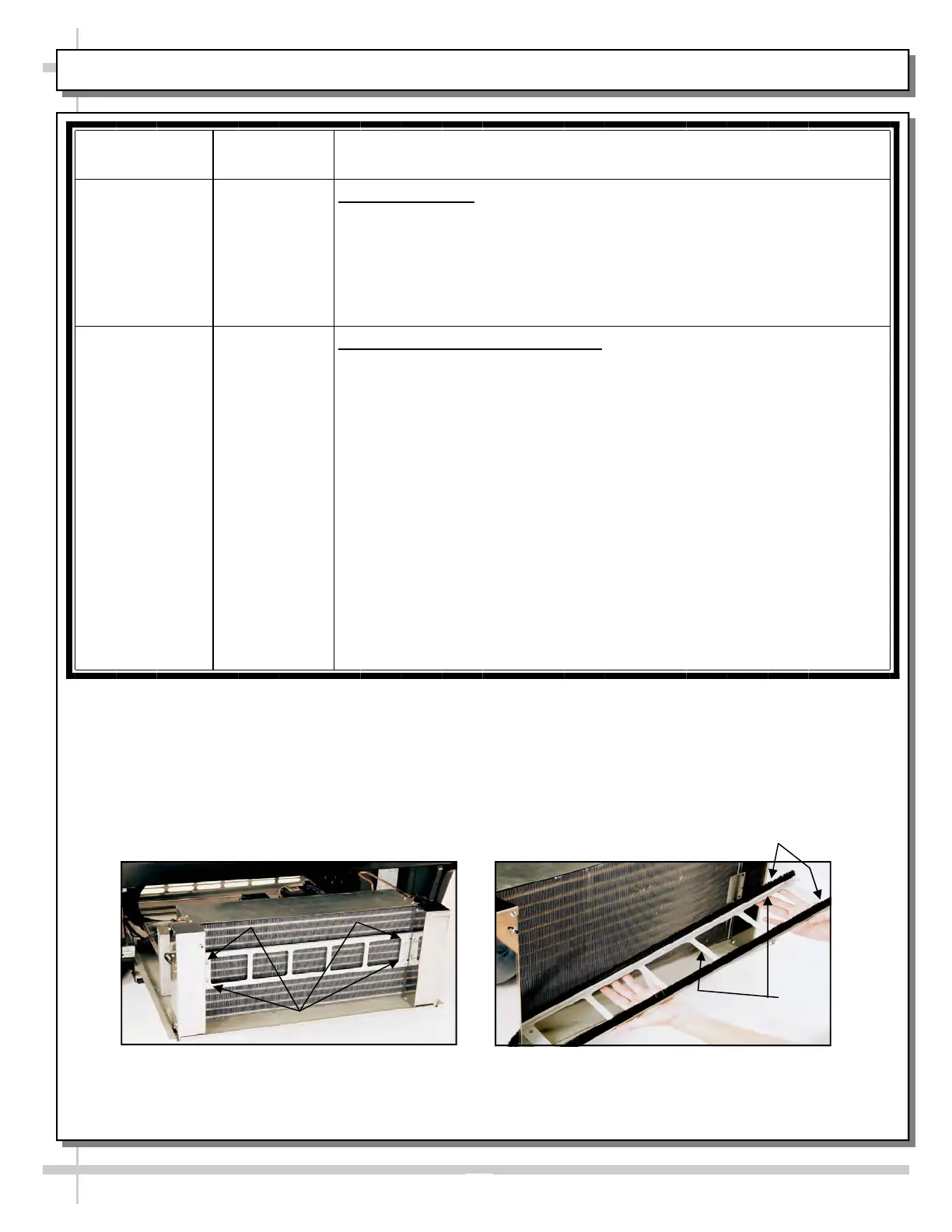

 See photos below.
(4) Screws
--- Above photos are taken after rear grille has been removed from case ---
Co
n
de
n
s
i
ng
Coil
Brushes
Rail
