Struers Minitom - Mounting the Specimen Holder Arm; Supplying Power

Minitom
Instruction Manual
13
ELECTRICAL HAZARD
Switch the power off when installing electrical equipment.
The machine must be earthed (grounded).
Check that the mains voltage corresponds to the voltage stated on
the type plate on the side of the machine.
Incorrect voltage may result in damage to the electrical circuit.
NOTE
Check that the mains voltage corresponds to the voltage stated on
the type plate on the back of the machine.
 Mount a plug on the electric cable and connect it as follows:
Yellow/green:
earth
Blue:
neutral
Black/Brown:
phase

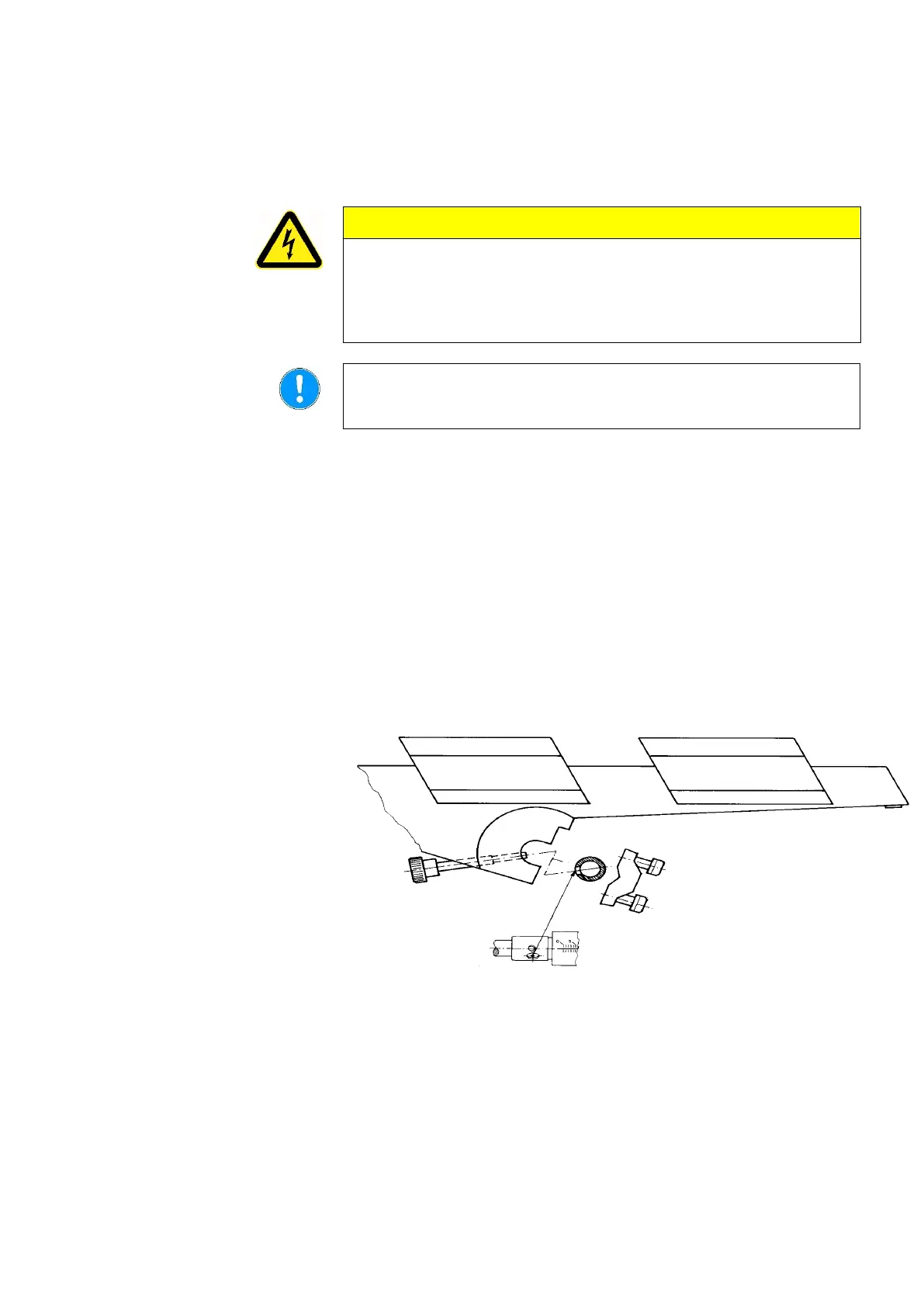

 Unscrew the fitting on the back of the arm with the 4 mm Allen
key and place the arm on the micrometer screw.
 Screw the fitting loosely on.
 Push the arm against the shoulder of the micrometer screw.
 Keep the arm in horizontal position. The hole in the micrometer
screw and the locking screw must be aligned.
 Tighten the fitting.
Supplying Power
Mounting the Specimen Holder
Arm
