7
Rear Panel

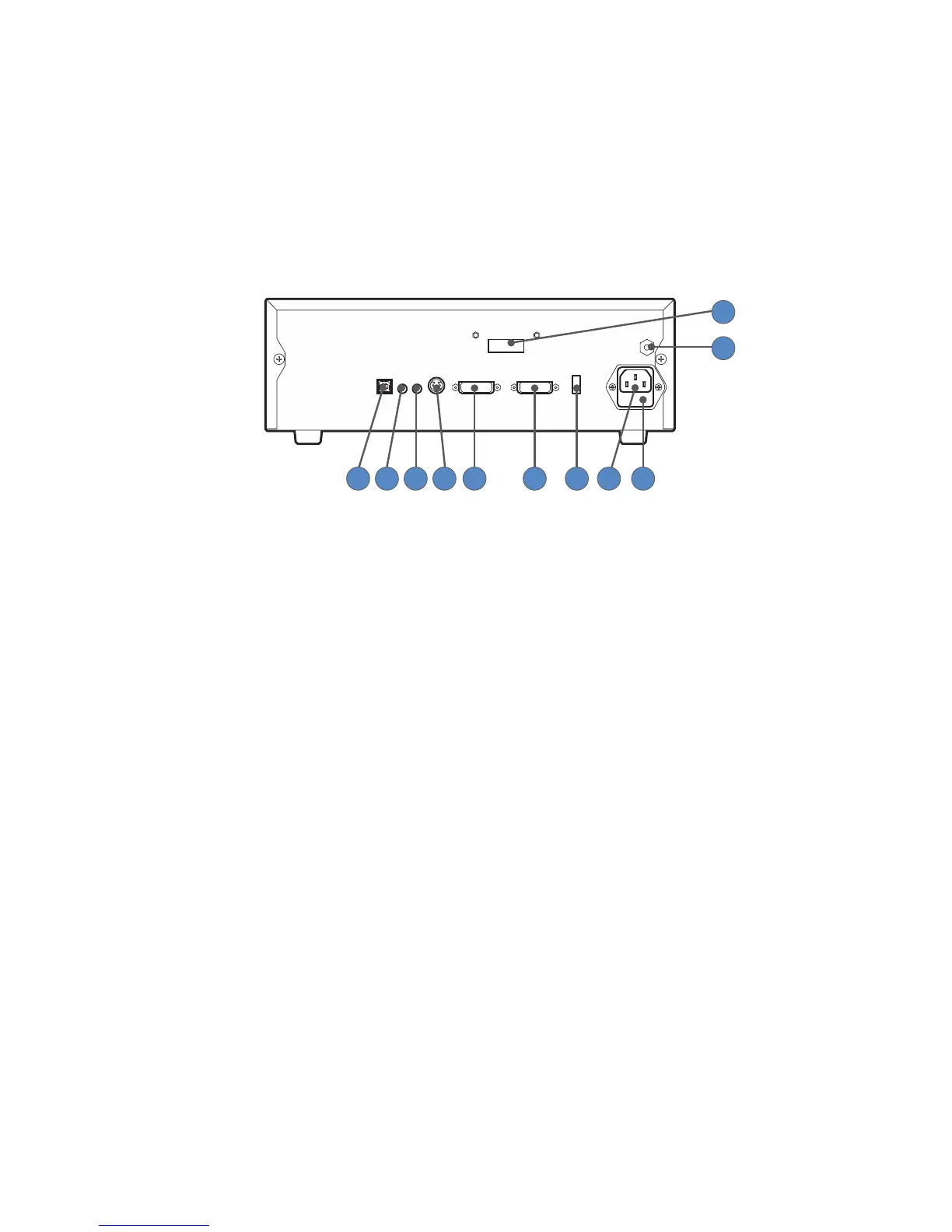

The console rear panel provides ports for connecting the PrecisionAC Camera
to viewing and recording equipment, such as video monitors and Stryker
device control consoles.
See the “Product Description section for the dierent console models that
are available. The PrecisionAC Camera Control Unit with DVI Fiber Output
(0700010001) is shown below.
9
11
10
87654321
1. Device Control Port Connects to a Stryker device control console
(such as the SDC3 or SIDNE®) to enable voice
operation and/or graphic tablet control
2. Remote Out 1 Connects to a video accessory remote input
3. Remote Out 2 Connects to a video accessory remote input
4. S-Video Out Analog video output
5. DVI Out 1 Digital video output
6. DVI Out 2 Digital video output
7. Light Source Port Connects to Stryker light source
8. AC Power Inlet Connects to AC mains with separable power
cord
9. Fuse Panel Contains two 1.6A 250V fuses (slow blow, high
breaking capacity 1500A, size 5mm x 20mm)
10. Equipotential
Ground Plug
Connects to a potential equalization conductor.
The resulting medical electrical system shall
follow all applicable IEC 60601-1 requirements.
11. Fiber Outputs
(optical)
DVI output for connection to Lucent connector
bers (optional: 0700010001)
