The Camera Console
The camera console—or Camera Control Unit (CCU)—is the control center for
the PrecisionAC Camera, and it processes the video and photographic images
produced during the surgical procedure.
Front Panel
The console front panel features a touchscreen, where dierent menus can
be accessed, including the controls for adjusting the light level, zoom, and
white balance, as well as allowing the selection of surgical specialty settings
that optimize camera performance for specic surgical procedures. The
touchscreen also allows activation of remote outputs, which are commonly
used with a Stryker digital capture console to record images and video.
See the “Operation section for more detail on using the front panel.

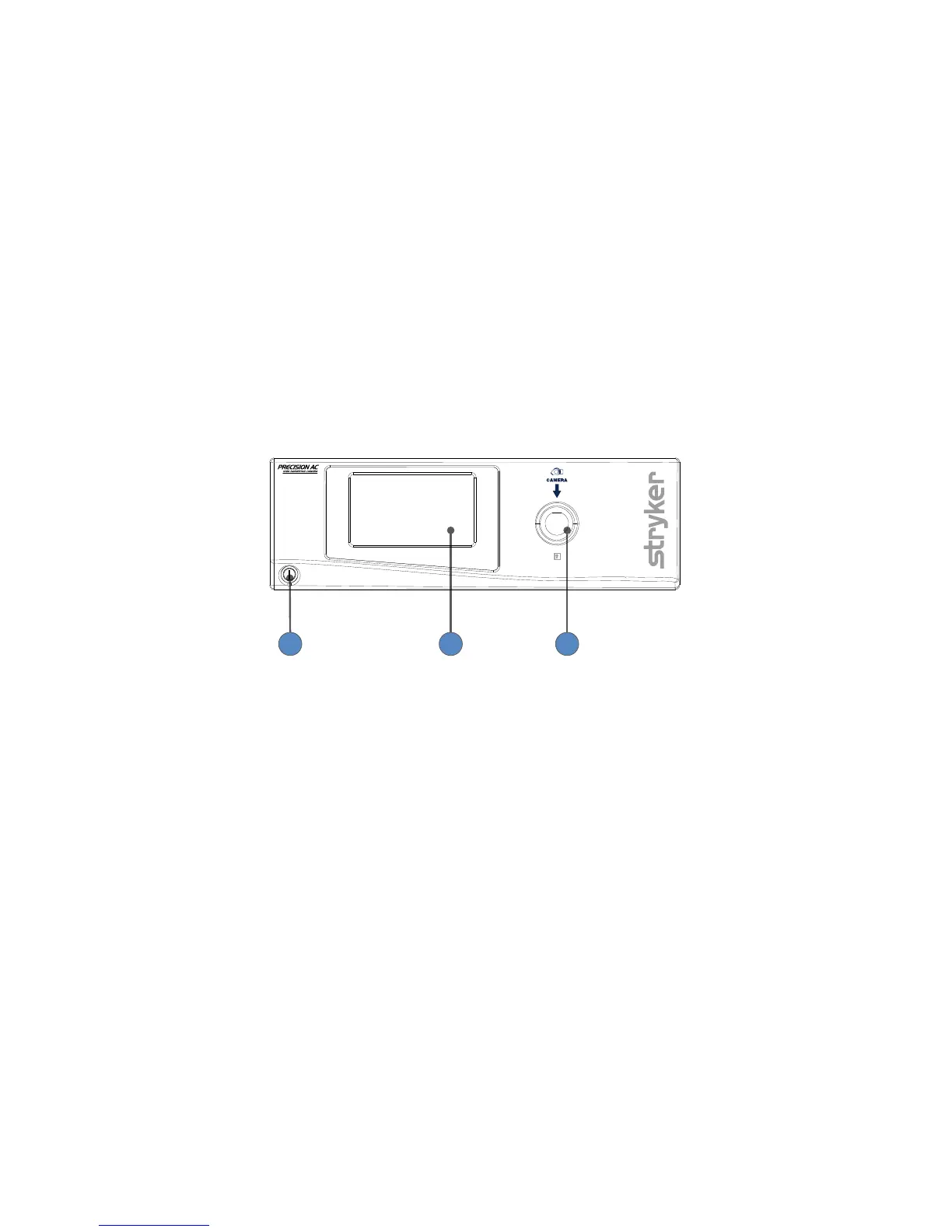

21 3
1. Power Switch Powers the camera ON and OFF
2. Touchscreen Allows navigation through dierent menus
for controlling the camera and adjusting
the video settings
3. Camera-Connector Port Connects to the PrecisionAC Camera Head
