The Camera Head

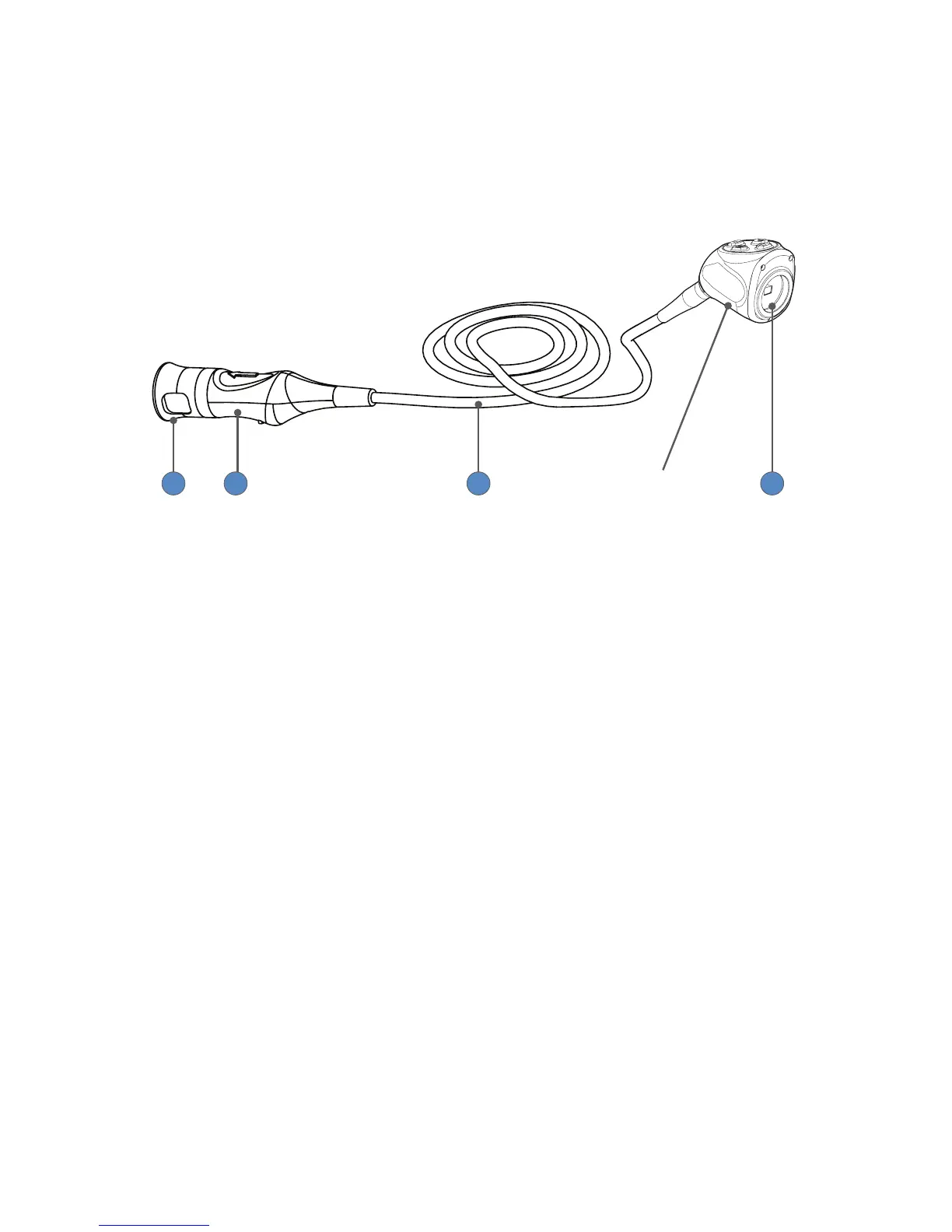

The camera head connects to the camera console and produces video and
photographic images, which it relays to the camera console. Several controls
are accessible through a button keypad located on the top of the camera
head (see the “Operation” section).
4
“AUTOCLAVE”
1 2 3
1. Soaking Cap Protects the cable connector during cleaning,
disinfection, and sterilization
2. Cable Connector Connects the camera head to the camera console
3. Camera Cable The camera cable length is 10 feet (3.05 m)
4. Camera Head Produces photographic and video images,
provides camera controls, and connects with a
focusing coupler. Note that the bottom of the
camera head is marked “AUTOCLAVE” to indicate
compatibility with steam sterilization.
