Pump pedal (A) to raise the litter.
Depress in the center of pedal (B) to lower both ends of the stretcher
together.
Depress the side of pedal (B) closest to the foot end of the stretcher
to lower the foot end.
Depress the side of pedal (B) closest to the head end of the stretcher
to lower the head end.
Pedal (C) - Brake and Steer functions (foot end).
Pedal (D) - Brake and Steer functions (head end).
OPERATING THE BASE CONTROLS

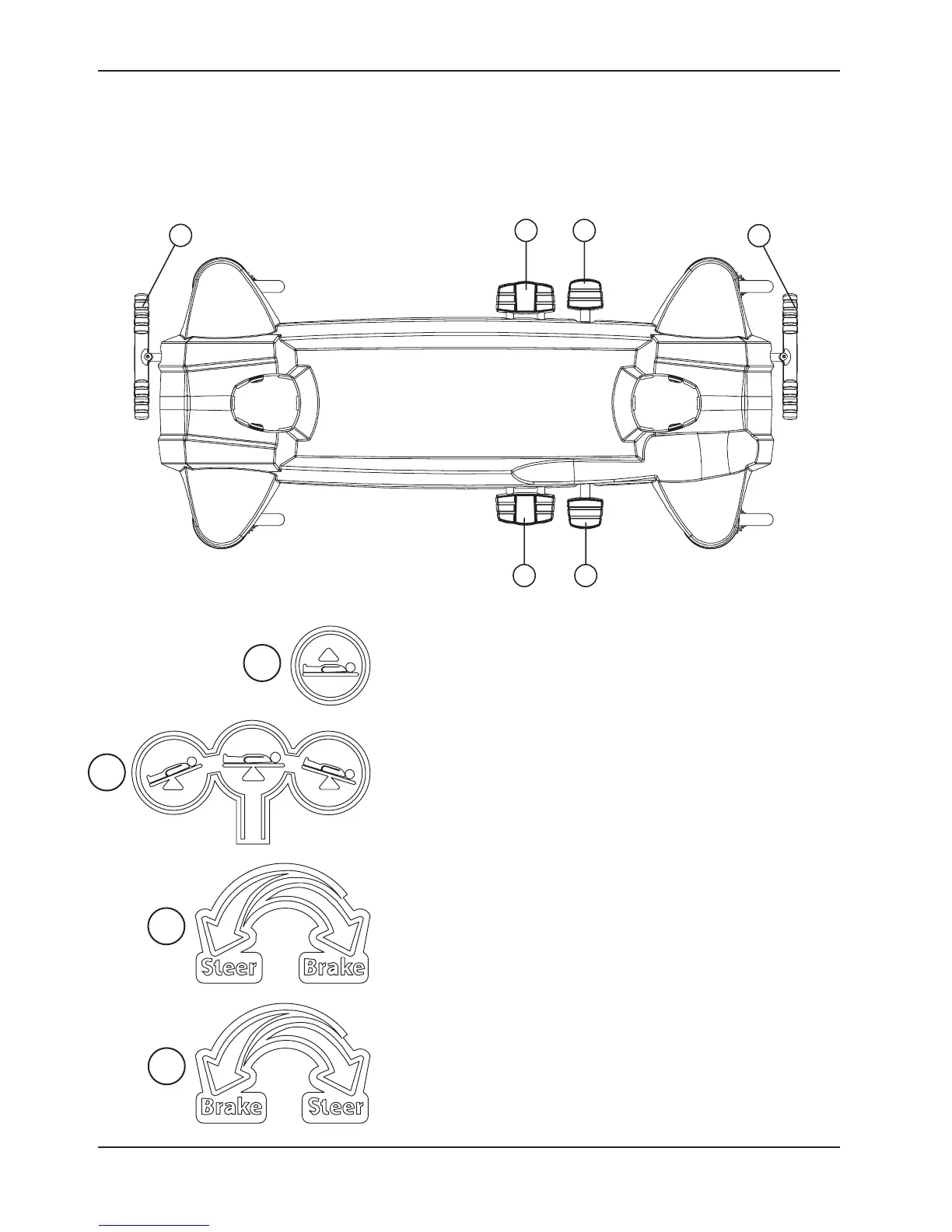

To operate the base controls, see Figure 1 to locate which pedals are used for what operation. Pedal (A) raises the
litter. Pedal (B) lowers the stretcher ends. Pedal (C) operates the brake and steer function for the foot end and pedal
(D) operate the brake and steer functions for the head end.
