OPERATING THE OPTIONAL 2-STAGE PERMANENTLY ATTACHED I.V. POLE
Note
The 2-stage permanently attached I.V. pole is an option and may have been installed at either the head, foot or both ends
of the stretcher. The choice was made at the time the stretcher was purchased.
To use the 2-stage permanently attached I.V. pole:
Lift and pivot the pole from the storage position and push down until it is locked into the receptacle.1.
To raise the height of the pole, pull up on the telescoping portion (A) until it locks into place at its fully raised 2.
position.
Rotate the I.V. hangers (B) to desired position and hang the I.V. bags.3.
To lower the I.V. pole, turn the latch (C) until section (A) lowers.4.
CAUTION
To avoid damage, the weight of the I.V. bags should not exceed 40 pounds.
Return To Table of Contents
Stretcher Operation

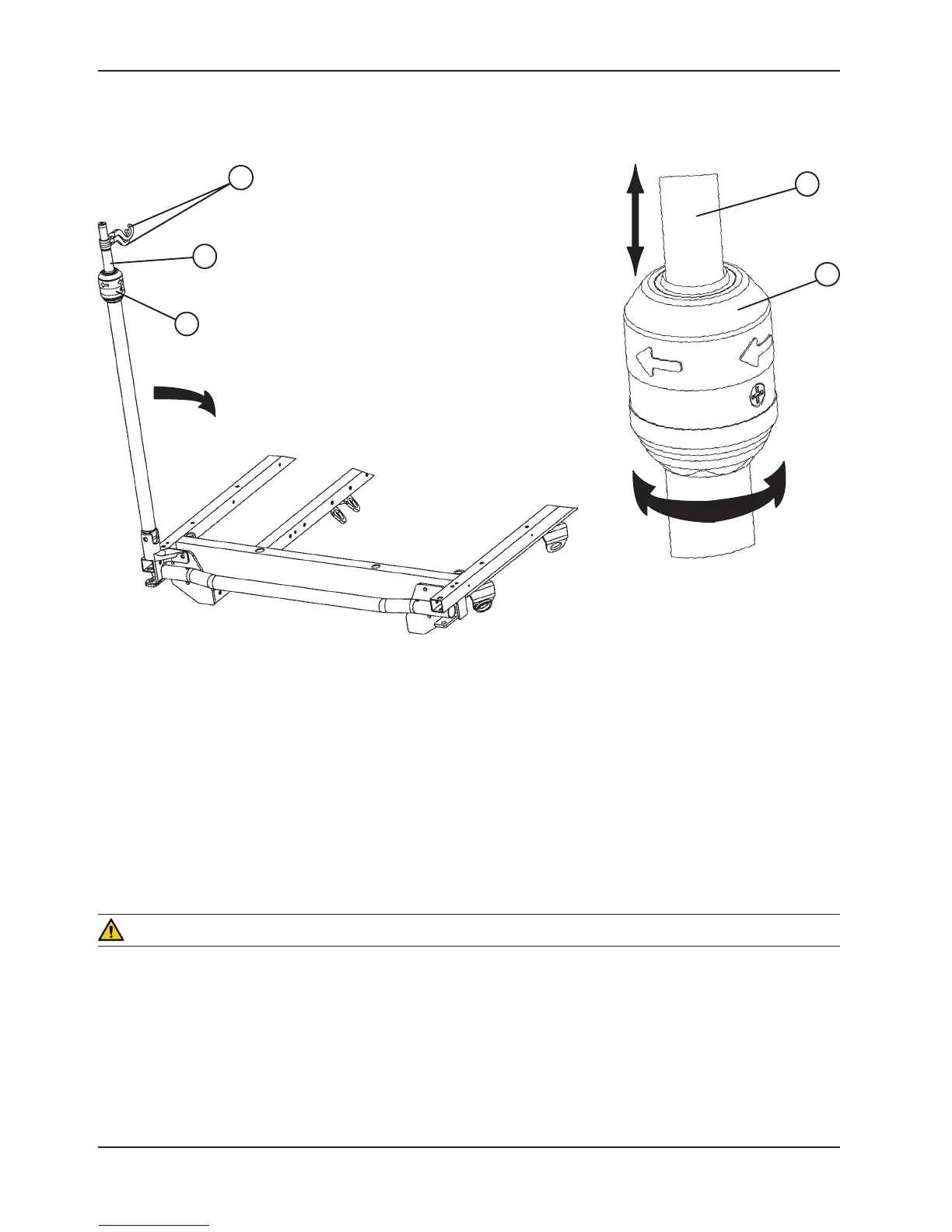

Figure 10 - I.V. Pole
Figure 11 - Detail of I.V. Pole Latch
To Next Page
