www.stryker.com 1025-009-001 REV E 21
OPERATING THE OPTIONAL 3-STAGE PERMANENTLY ATTACHED I.V. POLE
Note
The 3-stage permanently attached I.V. pole is an option and may have been installed at either the head, foot or both ends
of the stretcher. The choice was made at the time the stretcher was purchased.
To use the 3-stage permanently attached I.V. pole:
Lift and pivot the pole from the storage position and push down until it is locked into the receptacle.1.
To raise the height of the pole, pull up on the telescoping portion (A) until it locks into place at its fully raised 2.
position.
For a higher I.V. pole, pull up on section (B). Release section (B) at 3. any desired height and it will lock into place.
Rotate the I.V. hangers (C) to the desired position and hang the I.V. bags.4.
To lower the I.V. pole, push up on the red portion of grip (D) while holding onto section (B) until it lowers. Turn latch 5.
(E) until section (A) lowers.
CAUTION
To avoid damage, the weight of the I.V. bags should not exceed 40 pounds.
Return To Table of Contents
Stretcher Operation
B
D
A
C
E
A
E
B
D
C

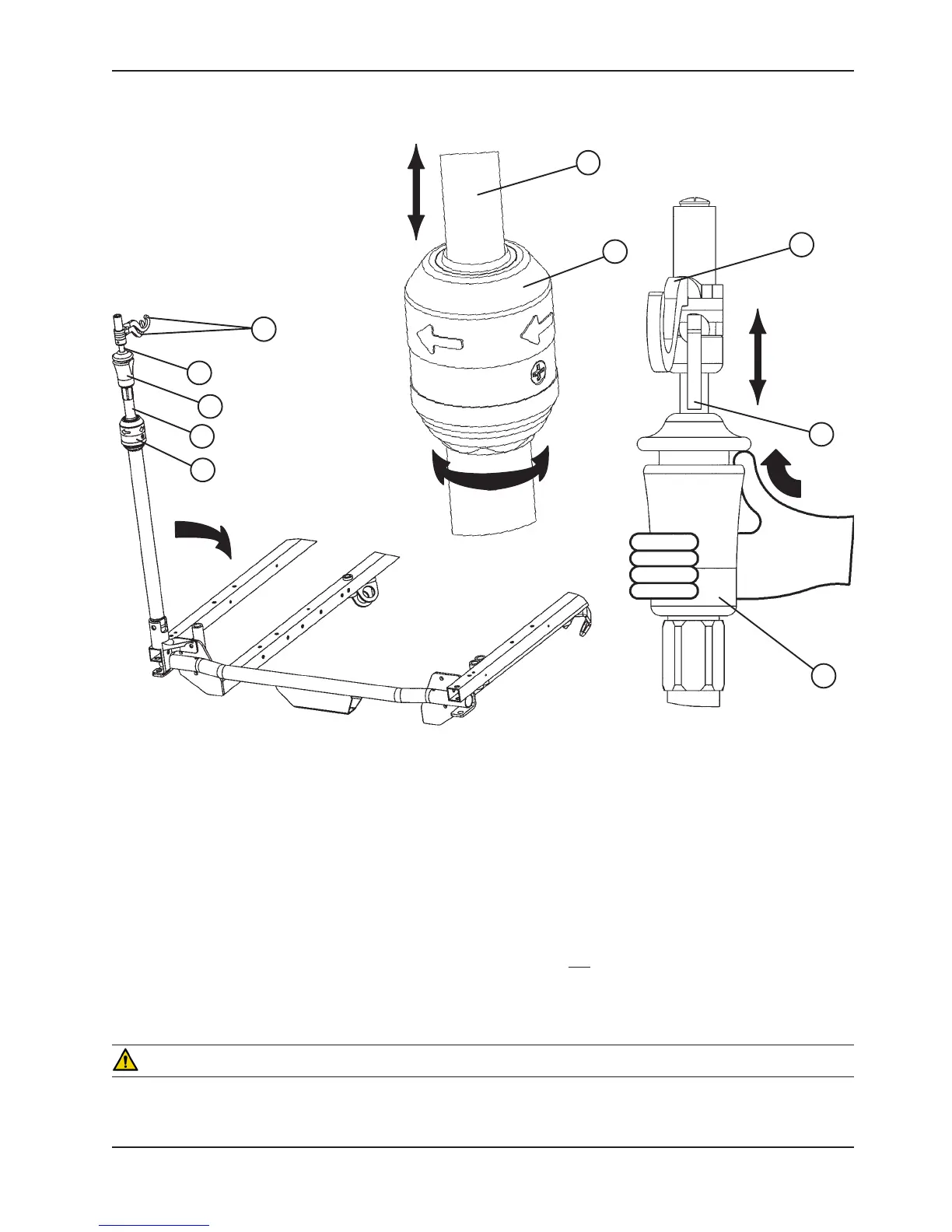

Figure 12 - I.V. Pole
Figure 13 - Detail of I.V. Pole Latch
Figure 14 - Detail of I.V. Pole Grip
