8

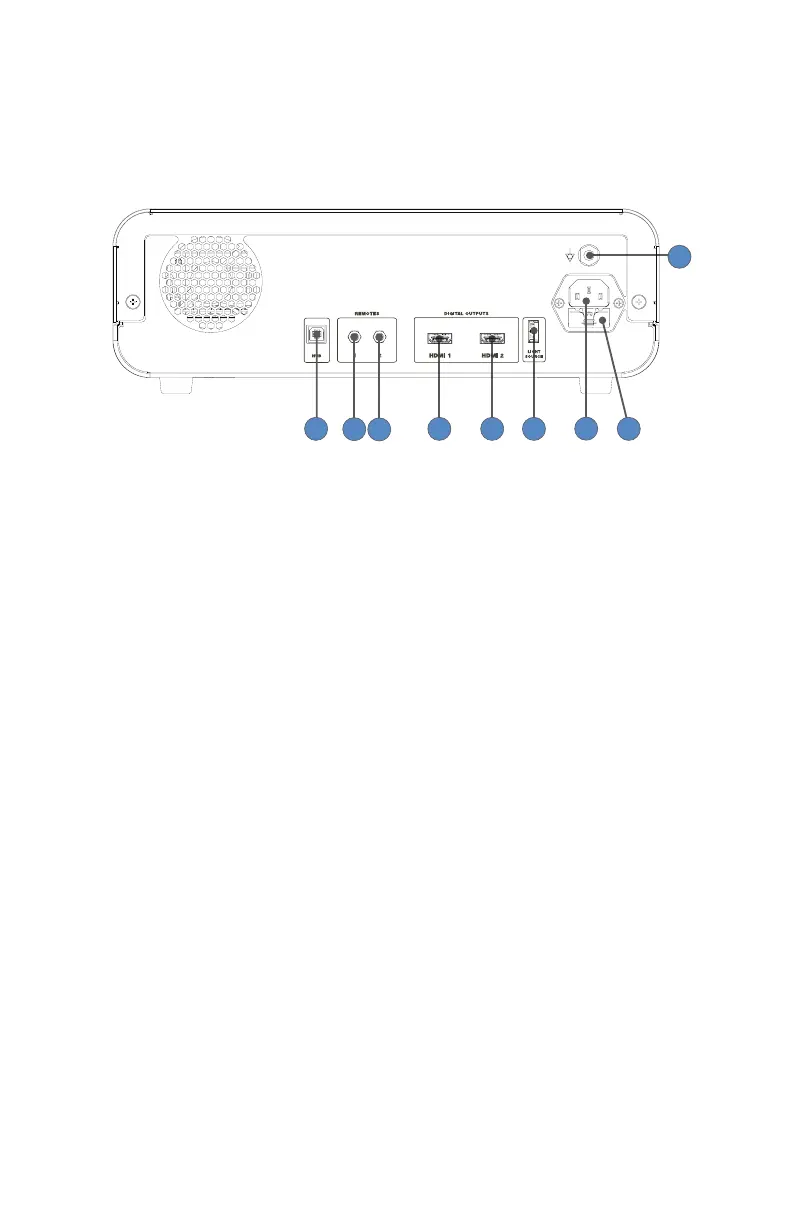

Rear Panel
The console rear panel provides ports for connecting the 1688 Video Camera
to other equipment such as a display monitor, a light source, and a device
control console and/or digital capture console.
9
8
654
1
7
3
2
1. HUB Port Connects to a Stryker device control console to
enable voice operation and/or graphic tablet
control
2. Remote Out 1 Connects to a video accessory remote input
3. Remote Out 2 Connects to a video accessory remote input
4. HDMI Out 1 HDMI 2.0 output (supports 4K UHD video
resolution)
5. HDMI Out 2 HDMI 2.0 output (supports 4K UHD video
resolution)
6. Light Source Port Connects to Stryker light source
7. AC Power Inlet Connects to AC mains with separable power
cord
8. Fuse Panel Contains two 1.6A 250V fuses (slow blow, high
breaking capacity 1500A, size 5mm x 20mm)
9. Equipotential
Ground Plug
Connects to a potential equalization conductor.
The resulting medical electrical system shall
follow all applicable IEC 60601-1 requirements.
