If you want to change the Pendulum Auto Flip setting, follow these steps:
1. Hold down the Settings button on the camera console Home screen for
about 5 seconds.
2. Select Options.
3. Press the right arrow to advance to the second menu page, and change
the Pendulum Auto Flip setting.
4. Click X in the top-right corner to return to the Home screen.
The C-Mount Coupler
The coupler threads onto the face of the camera head, enabling a scope to be
attached to the camera. It provides a focusing ring to adjust image sharpness.
It is recommended to use the camera with the 4K Coupler, C-Mount, with
Advanced Imaging Modality (1688-020-122). The 4K Coupler enables use of
SPY mode when the camera is connected to the the proper system. Refer to
Stryker user manual P40880 for complete 4K Coupler instructions.
1
2
3
4

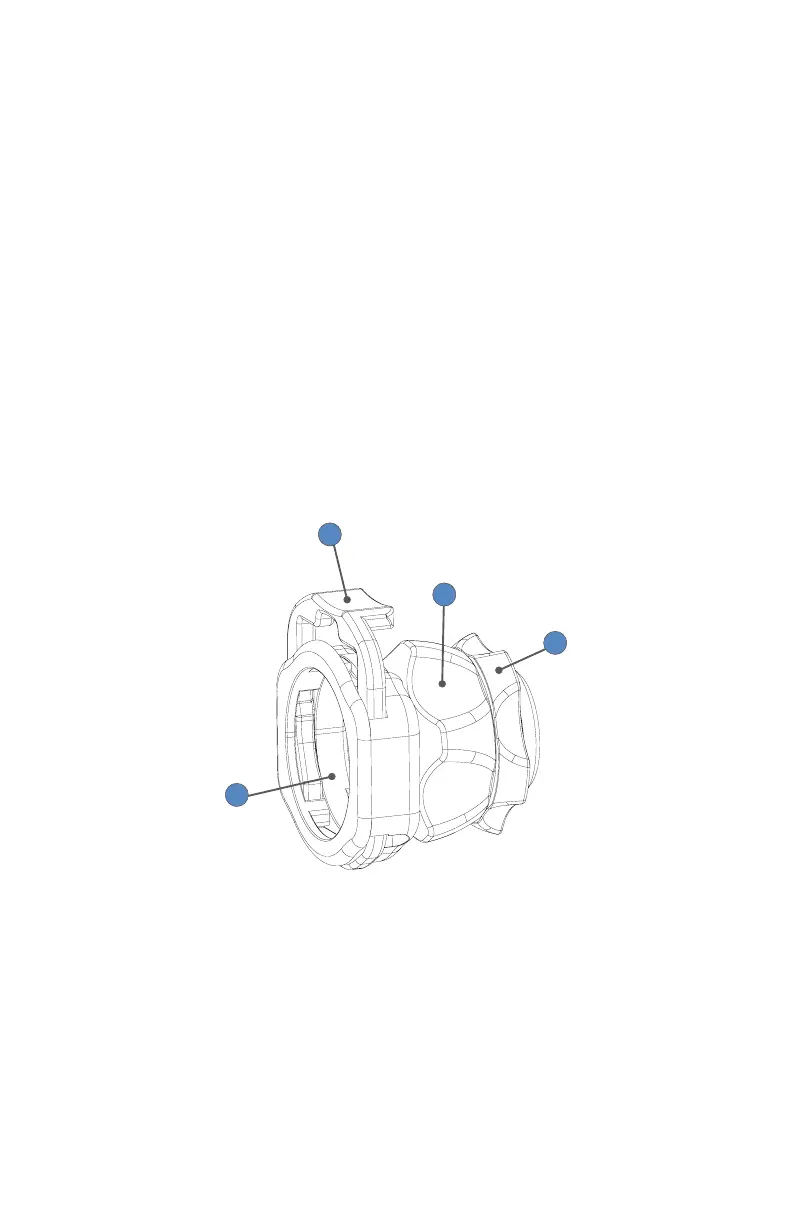

1. Scope End Receives the endoscope
2. Endobody Clamp Secures the scope to the coupler
3. Focusing Ring Adjusts the coupler focus
4. Rear Adapter Threads onto the camera head
