10
Additional Features of the Pendulum Camera Head
The 1688 4K Pendulum Camera Head with Integrated Coupler (1688310130)
utilizes each of the features described in the previous section, The Camera
Head, and it has additional features that are described below.

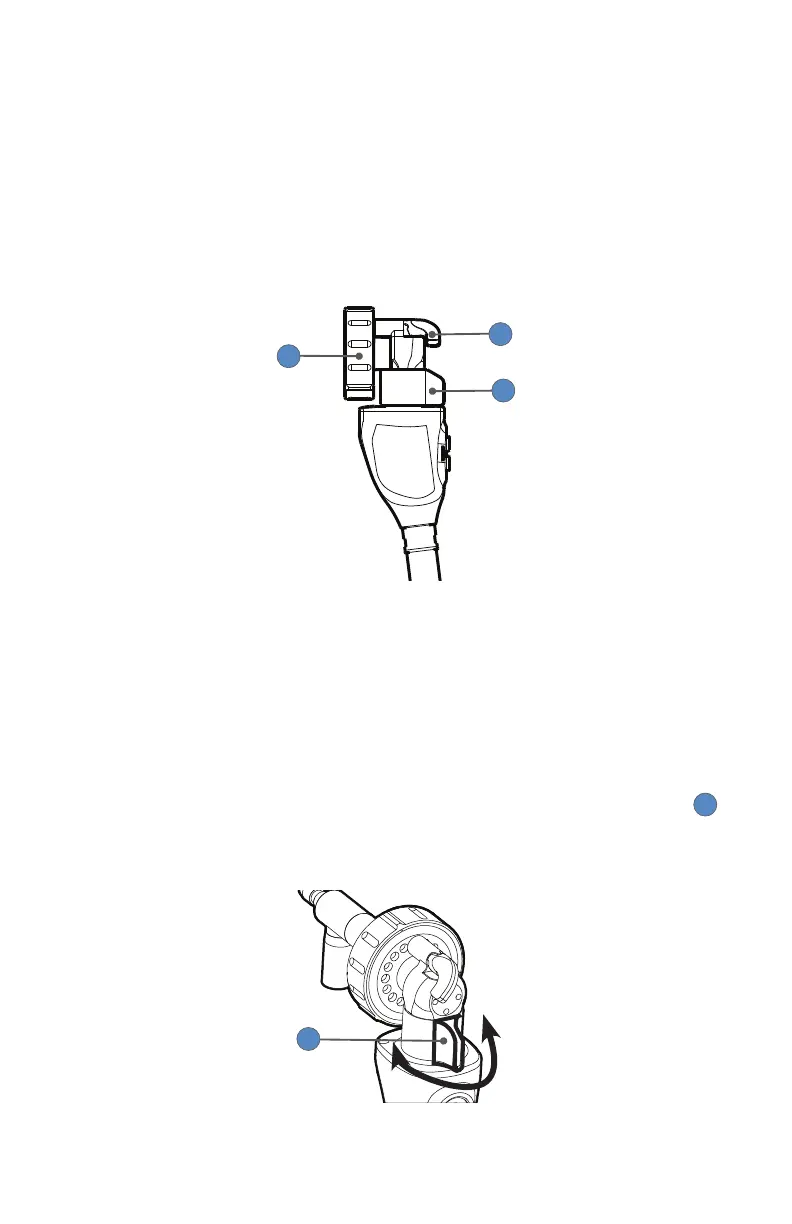

The Pendulum Camera is designed with a 90° angle between the camera head
and the scope to allow for easier access during urological procedures. The
camera also incorporates image focusing and rotation features described in
the following sections.
1
2
3
1. Endobody Clamp Secures the endoscope to the camera head
2. Endobody Brake Prevents rotation of the endoscope
3. Focusing Knob Adjusts the focus of the camera head
Adjusting the Focus (1688310130 only)
To adjust the focus of the Pendulum Camera Head, slide the focusing knob
1
from side to side as needed (i.e., in the direction of the Camera button or the
Menu button).
1
