12 www.stryker.com
EN 5400-052-700-EN Rev-D
11.4 Home Screen Instructions
[Name 1]
40000
RPM
100
%
90
%
[Motor 1]
[Motor 2]
[Motor 3]
B C D E
A

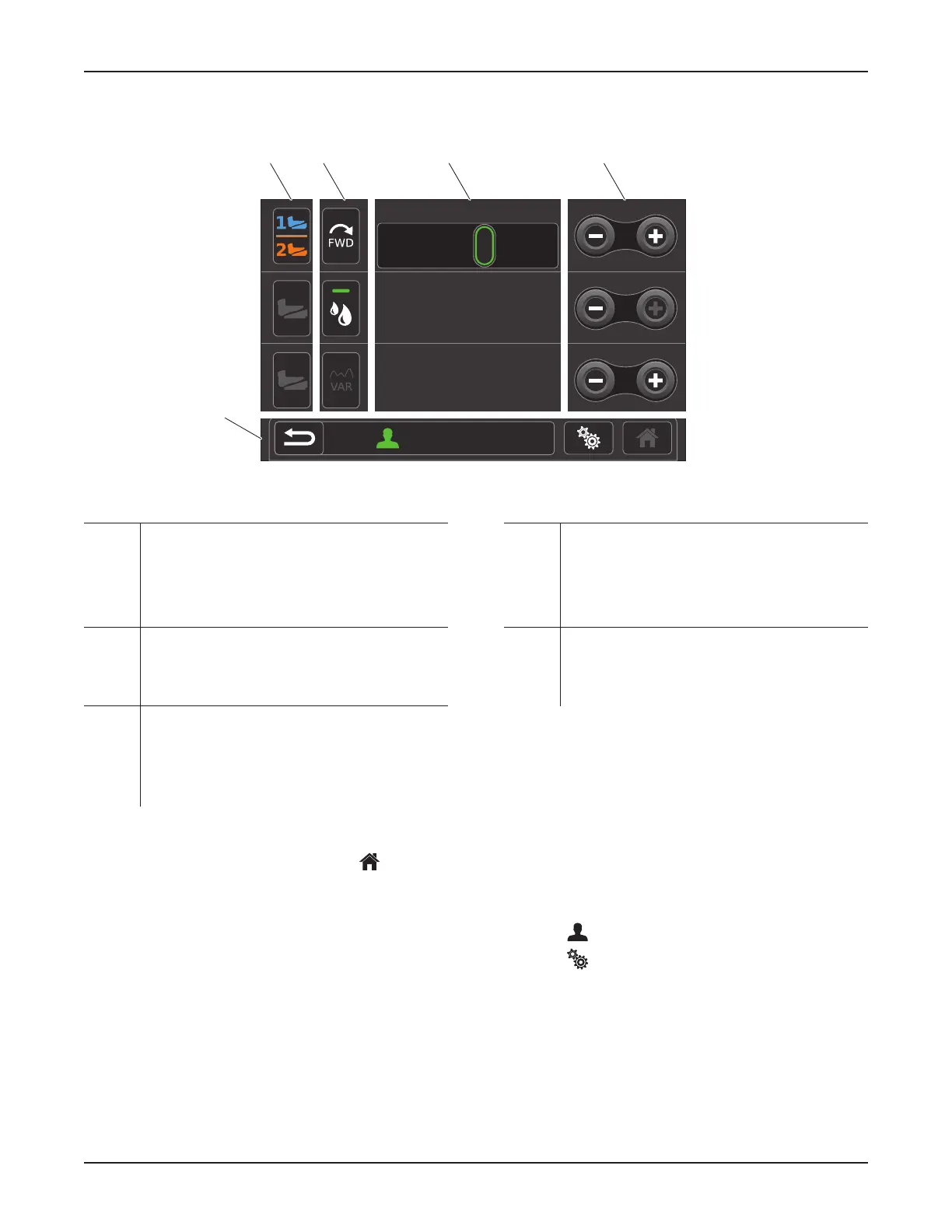

Figure 10 – Home Screen
A Navigation Bar Area – Provides navigational
buttons and displays the active preset.
NOTE: The reset button will appear within this
area if the active preset has been modified.
Press the reset button to undo changes.
D Motor Settings Value Area – Displays the
connected motor(s) name and value setting.
Touch the motor value to access the slider bar
to adjust the motor value setting.
B Footswitch Assignment Area – Provides
a graphical representation of the current
footswitch assignment. These buttons can be
touched to toggle footswitch assignment.
E Decrease/Increase Area – From here, the user
can use the decrease and increase buttons to
adjust the motor value setting.
C Quick Access Area – Allows the user to set
features such as direction, irrigation, and mode
on the Home screen. These buttons can be
set to accommodate the user’s preference
(Section 11.6.7.5).
11.4.2 Access Other Screens
NOTE: The Home screen is where most user interaction
will occur and allows access to other screens.
From the Home screen:
▪ Touch (Preset) to access the preset screen.
▪ Touch (Settings) to access the system settings
screen.
11.4.1 Manage Connected Devices
NOTE: When navigating the software, touch (Home)
to return to the Home screen.
1. Access the Home screen.
2. For each connected device, set the following as
necessary (Figure 10):
▪ Motor settings value
▪ Footswitch assignment
▪ Quick access
0000221359, Rev. D Effective Date: Jun 1, 2017 10:00:55 AM
Print Date: Jun 08, 2017 08:54:46 AM
