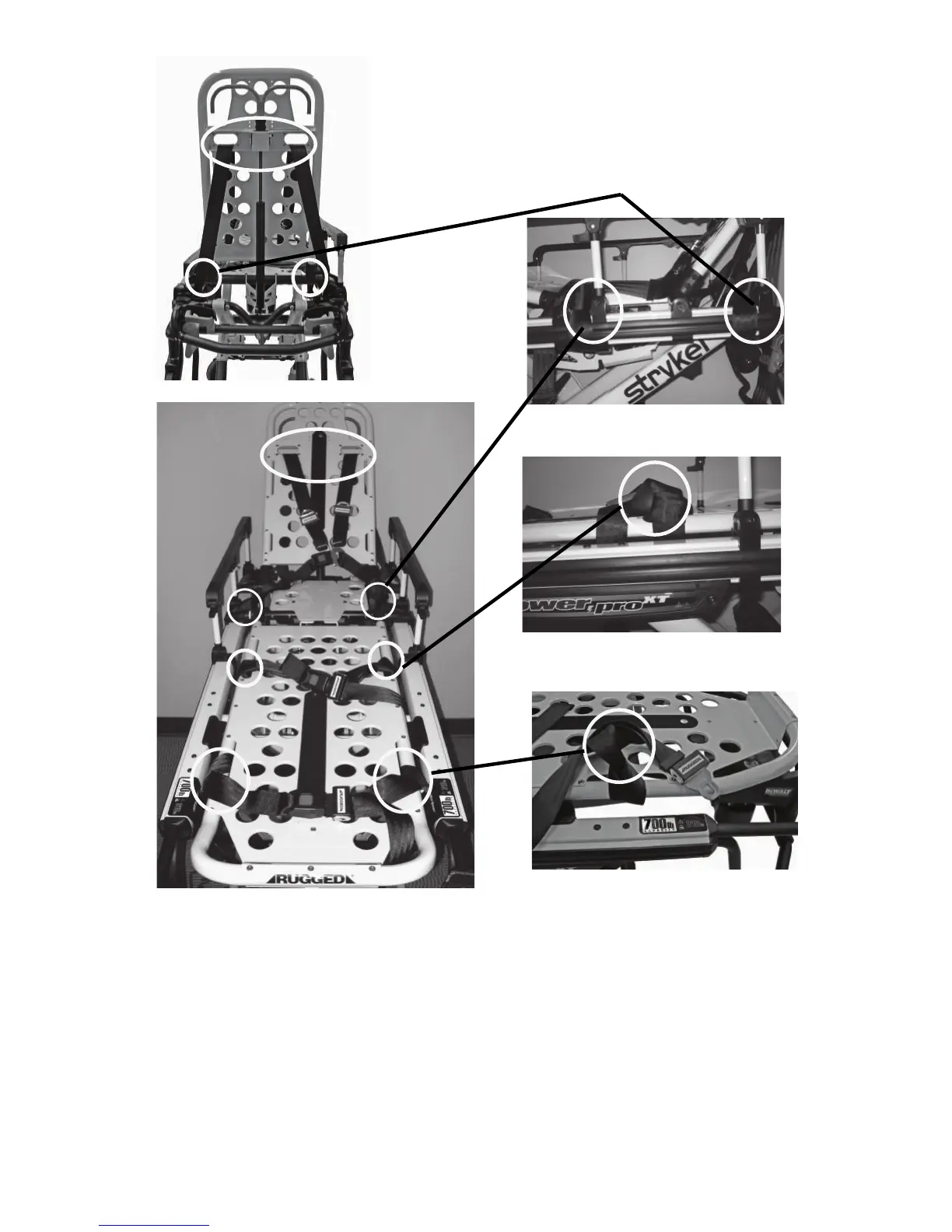

FFiigguurree 1100 –– RReessttrraaiinntt ssttrraapp aattttaacchhmmeenntt ppooiinnttss
IInnssttaalllliinngg tthhee sshhoouullddeerr,, tthhiigghh,, oorr aannkkllee rreessttrraaiinnttss
To install the shoulder, thigh, or ankle restraints:
1. Wrap the restraint strap around the cot frame.
2. Push the restraint strap buckle through the loop.
3. Pull the buckle around the loop to secure the restraint strap to the cot.
EN 30 6086-209-001 Rev F.2
