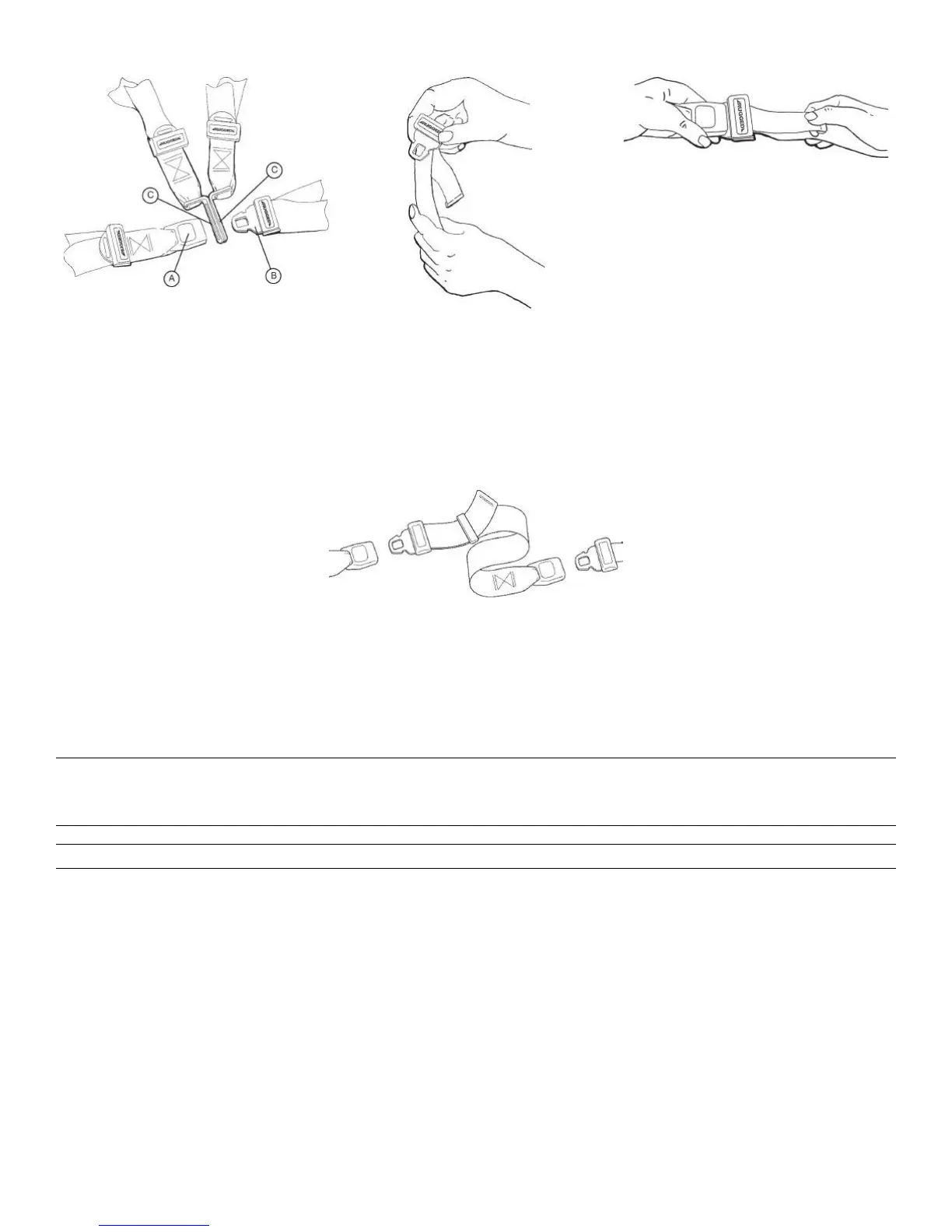

FFiigguurree 1144 –– BBuucckkllee tthhee ssttrraappss
aarroouunndd tthhee ppaattiieenntt
FFiigguurree 1155 –– LLeennggtthheenn tthhee rreessttrraaiinntt
ssttrraapp
FFiigguurree 1166 –– SShhoorrtteenn tthhee rreessttrraaiinntt
ssttrraapp
AAddddiinngg aa rreessttrraaiinntt ssttrraapp eexxtteennssiioonn
Add a restraint strap extension (6082-160-050) for extra length when you buckle the lap belt around larger patients.
FFiigguurree 1177 –– RReessttrraaiinntt ssttrraapp eexxtteennssiioonn
SSeeccuurriinngg aa ppaattiieenntt wwiitthh tthhee XX--rreessttrraaiinntt//RRUUGGGGEEDD™--XX ((66550000--000011--443300//66550066--000011--
443300)) rreessttrraaiinntt ssttrraappss
Secure restraint straps to the cot in the required attachment locations: shoulders waist, thighs, and ankles.
WWAARRNNIINNGG
• Always use all restraint straps to secure the patient on the cot. An unrestrained patient may fall from the cot.
• Do not attach restraint straps to the base tubes or cross tubes.
CCAAUUTTIIOONN -- Do not entangle the restraint straps in the base frame when you raise or lower the cot.
NNoottee -- Restraint straps are a Type BF applied part.
Restraint strap attachment locations should provide strong anchorage and proper restraint position (Figure 18). Do not
allow restraint straps to interfere with equipment or accessories. Buckle the restraints across the shoulders, waist, thighs,
and ankles. Buckle all restraint straps when the cot is not in use.
1. Installing the X-restraint/RRUUGGGGEEDD-X shoulder restraints
2. Installing the X-restraint/RRUUGGGGEEDD-X waist restraints
3. Installing the X-restraint/RRUUGGGGEEDD-X thigh restraints
4. Installing the X-restraint/RRUUGGGGEEDD-X ankle restraints
5. Installing the X-restraint/RRUUGGGGEEDD-X ankle restraints
EN 32 6086-209-001 Rev F.2
