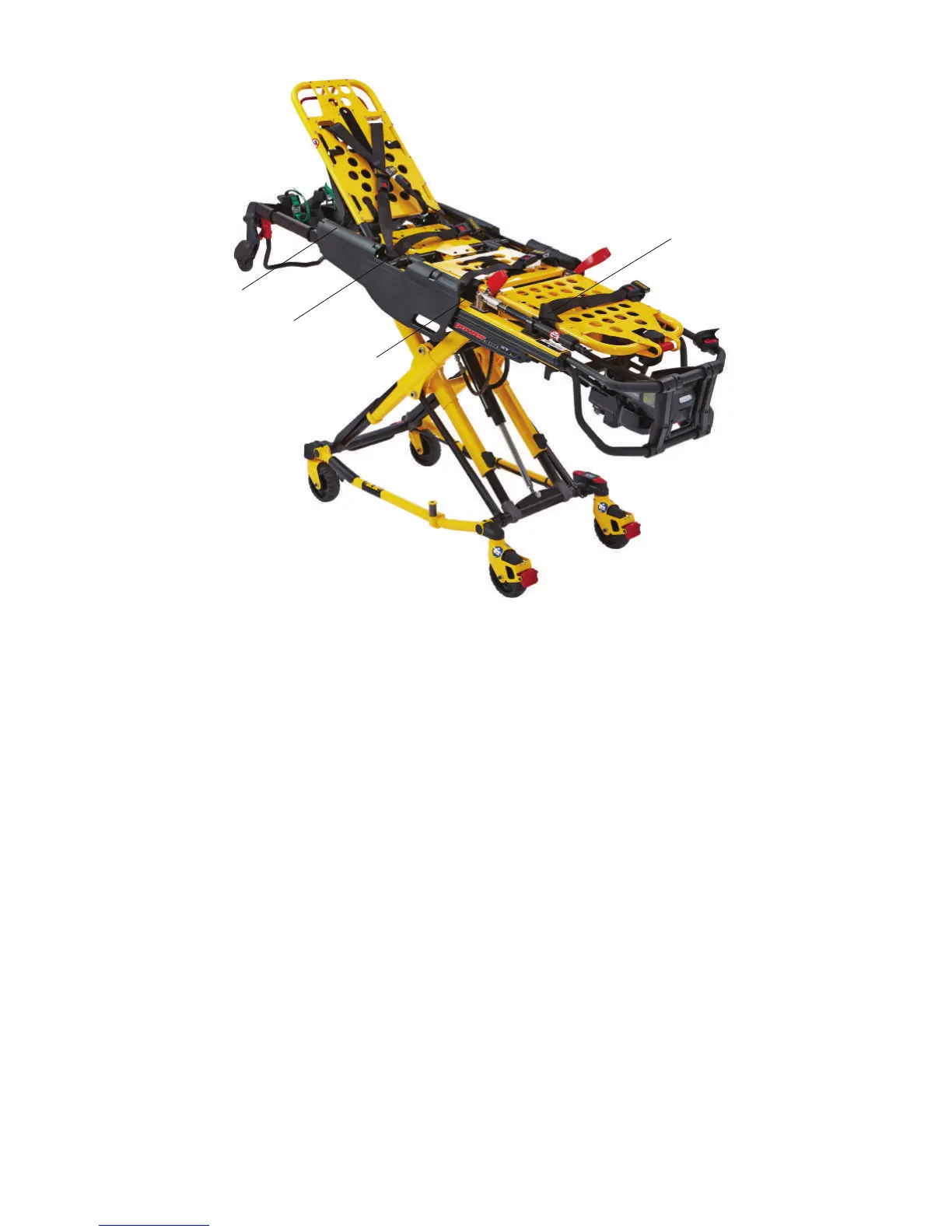

FFiigguurree 1188 –– RReessttrraaiinntt ssttrraapp aattttaacchhmmeenntt llooccaattiioonnss
IInnssttaalllliinngg tthhee XX--rreessttrraaiinntt//RRUUGGGGEEDD--XX sshhoouullddeerr rreessttrraaiinnttss
To install the X-restraint/RRUUGGGGEEDD-X shoulder restraints:
1. Wrap the restraint around the cot frame.
2. Pull the restraint buckle through the loop, toward the head end of the cot.
3. Feed the buckle under the XPS System.
4. For the Model 6506 Power-PRO XT cot and Model 6086 Performance-PRO XT cot, pull the restraint tight and toward
the back of the backrest.
5. For the Model 6550 Power-PRO TL cot, pull the restraint under the cross tube and toward the back of the backrest.
6. Feed the buckle through the opening in the backrest.
7. Connect the patient right shoulder buckle to the patient left waist buckle.
