Tibial and Femoral Canal Preparation
Scorpio Trial Cutting Guide
Tibial Preparation
Prepare the tibia following the Scorpio
Total Stabilizer Revision Knee System
Surgical Protocol (Lit. No. LSTS/ST, pages
1- 5). If an offset is needed, use the tibial
offset reamer to prepare for the tibial
offset. Insert the assembled trial into the
tibia (Figure 1 and Figure 2).
Note: The Scorpio Trial Cutting
Guide (TCG) is designed for use
with its own mating tibial insert
trial. The trial insert does not have
a post to allow for more accurate
assessment of the ligaments
during surgery.
Femoral Canal Preparation
Prepare the femoral canal to accept a
stem as described in the Scorpio Total
Stabilizer Revision Knee System Surgical
Protocol (Lit. No. LSTS/ST, page 5). If an
offset is needed, use the femoral offset
reamer to prepare for the femoral offset
(Lit. No. LSTS/ST, page 9) (Figure 3).
2

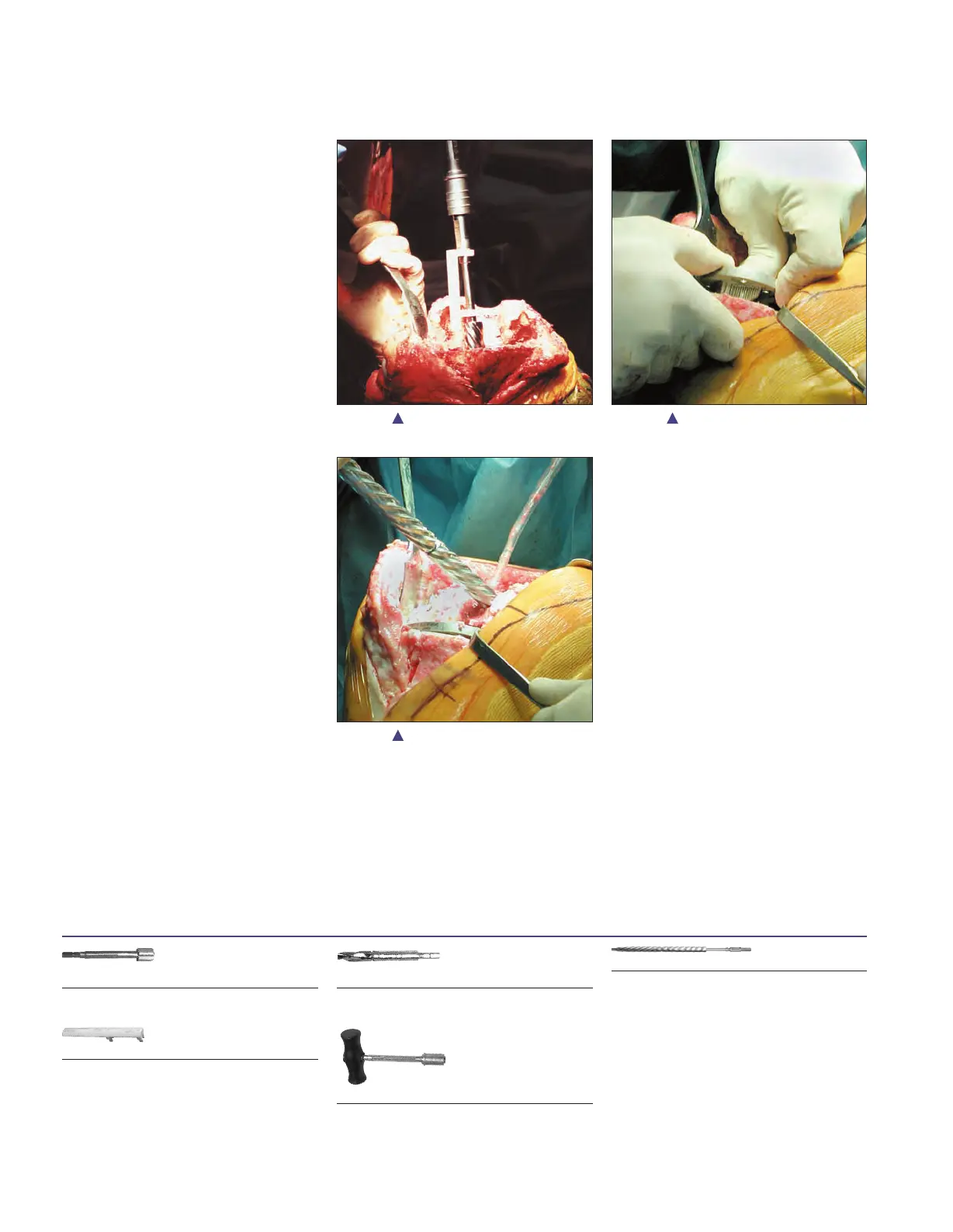

Figure 1 Tibial Canal Preparation Figure 2 Tibial Trial Assembly and
Insertion
Figure 3 Femoral Canal Preparation
Command T-Handle
6266-5-401
Tibial Boss/Offset Reamer
8200-0015
Reamer Depth Stop
8200-0047 80mm stem with offset
8200-0048 155mm stem with offset
Femoral Offset Reamer
8200-0095
IM Reamers
6633-9-408 8mm
6633-9-409 9mm
6633-9-410 10mm
6633-9-411 11mm
6633-9-412 12mm
6633-9-413 13mm
6633-9-414 14mm
6633-9-415 15mm
6633-9-416 16mm
6633-9-417 17mm
6633-9-418 18mm
6633-9-419 19mm
6633-9-420 20mm
6633-9-421 21mm
6633-9-422 22mm
6633-9-423 23mm
