Femoral/Tibial Trial Selection
Scorpio Trial Cutting Guide
Femoral/Tibial Trial Selection
Select the appropriate size femoral trial
cutting guide, offset adapter, and
corresponding tibial insert trial (Table 1).
Appropriate sizing can be achieved
through the use of:
• Previous operative notes
• Size of the original implant removed
• X-ray templates
The Scorpio Trial Cutting Guide (TCG)
can be assembled for either a left or right
knee. Assemble the offset adapter into the
housing of the TCG so the offset adapter
is pointing to the appropriate left or right
orientation (Figure 4).
3
Category Sizes
Femoral Cutting Guides 3, 5, 7, 9, 11, 13
Offset Adapter 0mm, 2mm, 4mm, 6mm, 8mm
Tibial Insert Trial Sizes 3, 5, 7, 9, 11, 13
Tibial Insert Trial Thickness 10mm, 12mm, 14mm, 16mm , 18mm, 21mm, 24mm
Table 1 Trial Cutting Guide Instrument Sizes
Femoral
Cutting Guide

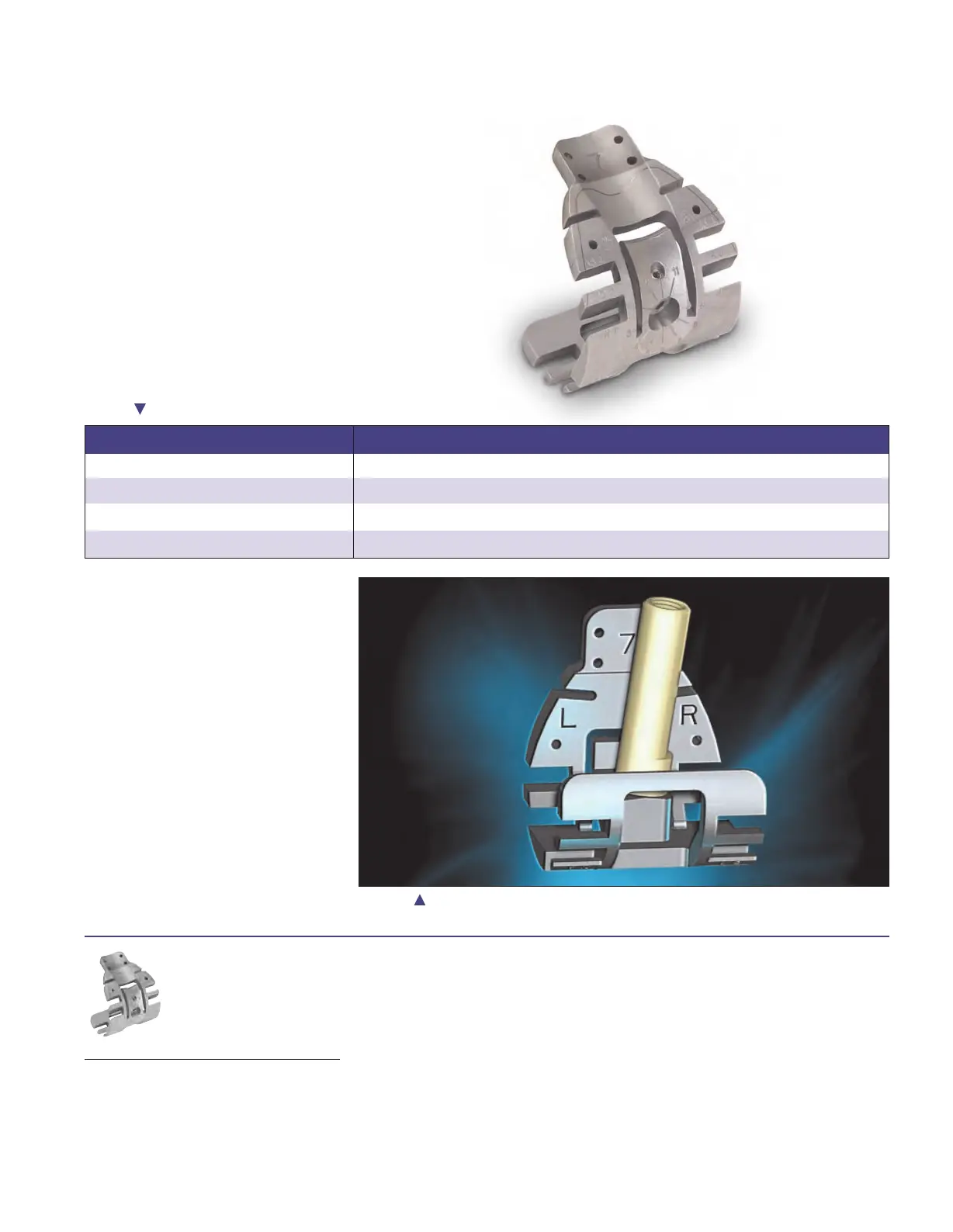

Figure 4 Trial Cutting Guide in “Right” Orientation
Trial Cutting Guide
8200-5003
8200-5005
8200-5007
8200-5009
8200-5011
8200-5013
