Femoral/Tibial Trial Selection (continued)
Scorpio Trial Cutting Guide
Assembly
Assemble the trial cutting guide, offset
adapter, and appropriate size trial stem
as shown (Figure 5).
A neutral offset adapter may be used
initially to construct the trial cutting
guide assembly until the need for a
femoral offset is determined.
First, assemble the trial stem to the offset
adapter, then assemble the offset adapter
into the Trial Cutting Guide housing and
secure the anterior set screw. Once “finger
tight” pressure is achieved, rotate
counterclockwise 1/2 turn to allow the
offset adapter to rotate freely. The anterior
set screw will be fully secured after the
appropriate offset and rotation is
determined (Figure 6).
Note: Rotating counterclockwise
1/2 turn will allow the offset
adapter to rotate freely without
disassembling from the Trial
Cutting Guide housing. Rotating
counterclockwise more than 1/2
turn will cause the offset adapter
to fall out of the Trial Cutting Guide
housing.
4
Torx Screwdriver
8200-5110
Tibial Insert Trial
T72-7-XXYY
XX = 03, 05, 07, 09, 11
YY = 10, 12, 14, 16, 18, 21, 24
Offset Adapter
8200-5100
8200-5102
8200-5104
8200-5106
8200-5108

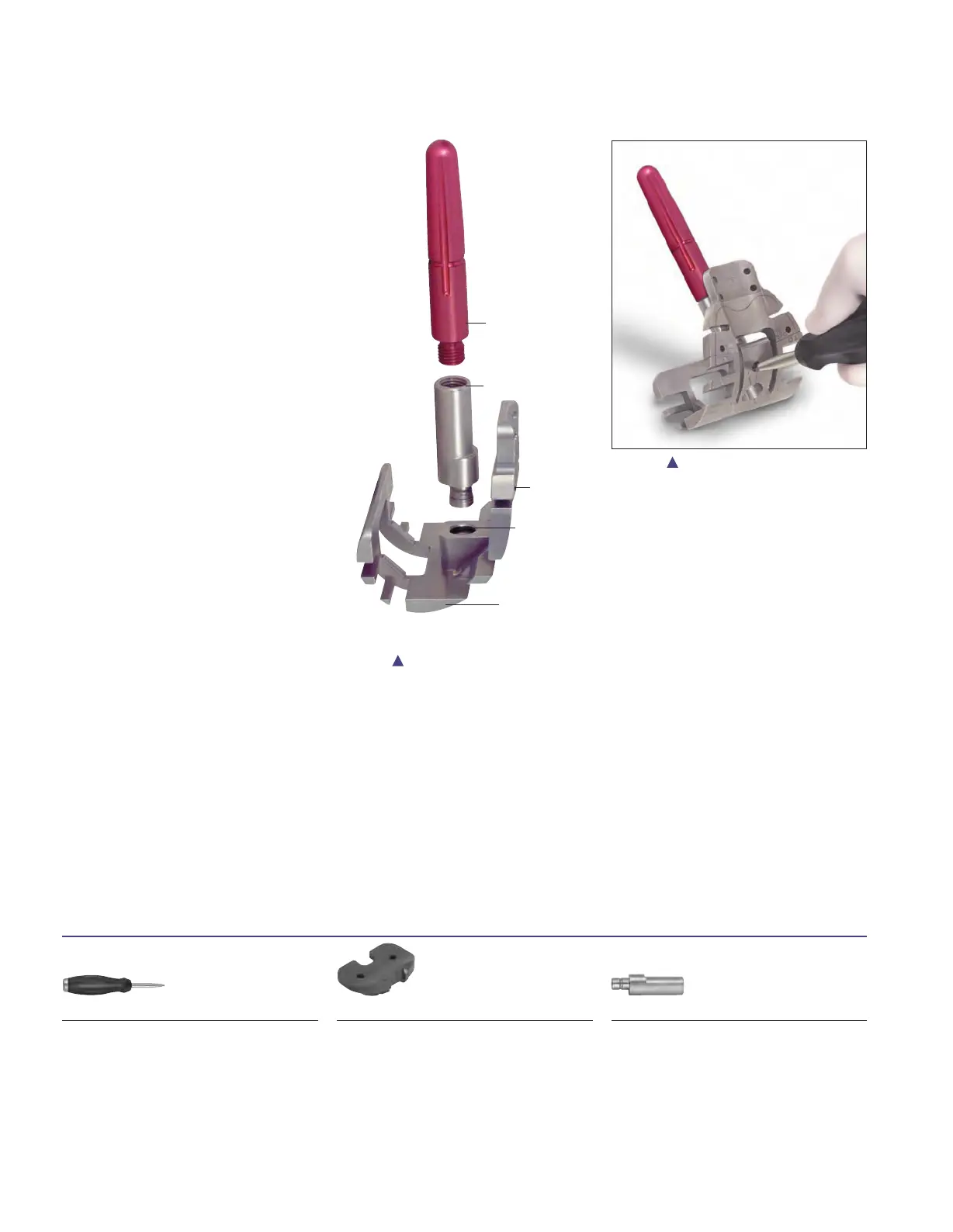

Figure 6 Set Screw Assembly
Trial
Stem
Offset
Adapter
Trial
Cutting Guide
Trial Cutting
Guide
Housing
Set
Screw
Figure 5 Trial Cutting Guide
Assembly
