Operating Instructions
CLIK-TITE CONNECTORS
6A
6B
6C
6D
7B
7C

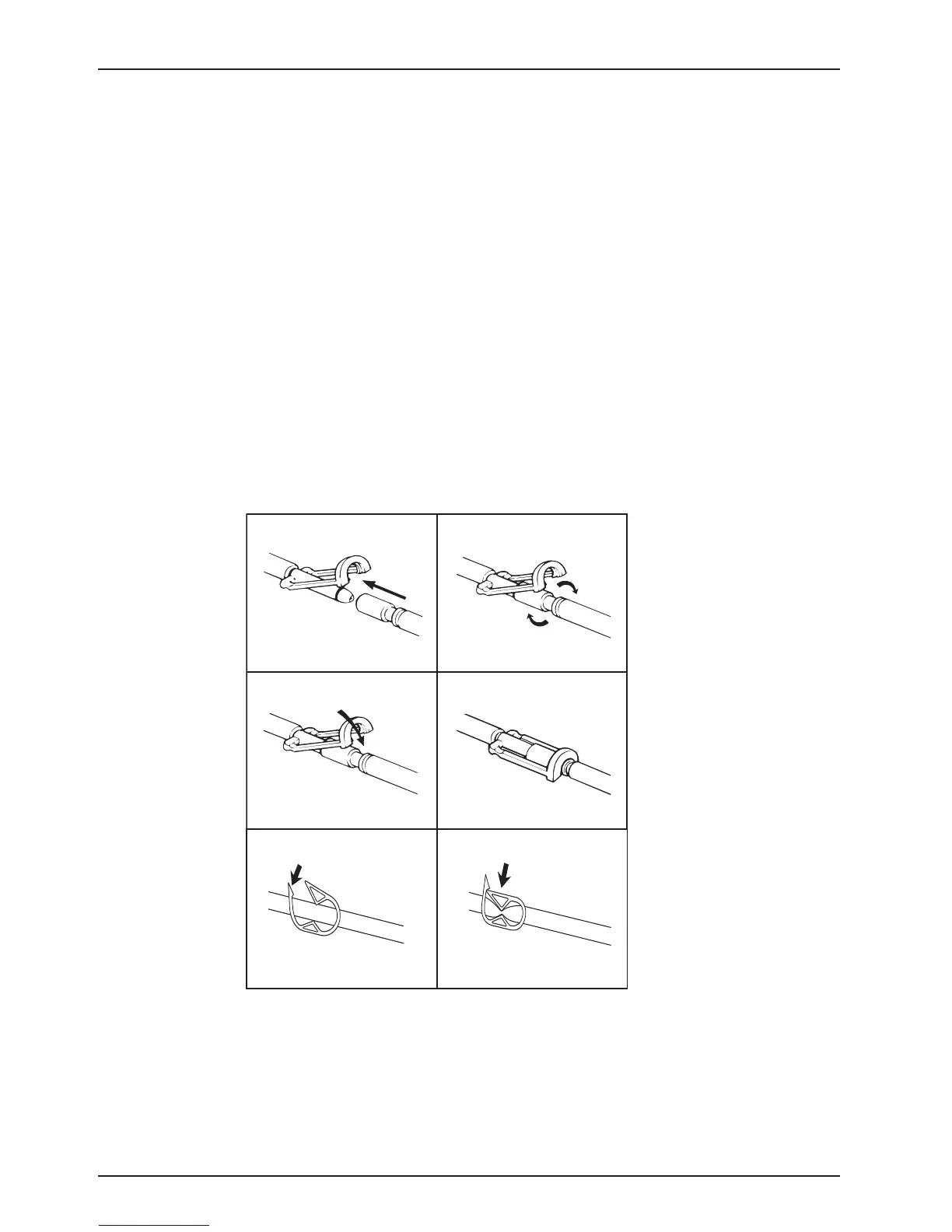

Figure 6: Clik-Tite
®
Connectors
The TP600 & 700 Series T/Pump is supplied with Clik-Tite
®
connectors.
To connect and disconnect Clik-Tite
®
connectors from hose to pad:
1. Insert male fittings into female fittings with a twisting motion
(Figures 6A and 6B).
2. When fittings are fully inserted, snap locking ring into place
(Figures 6C and 6D).
3. To disconnect, reverse the procedure.
4. To open or close the hose pinch clamps:
•Open the clamp by pushing the serrated end (Figure 7B).
•Close the clamp by pressing the clamp together (Figure 7C).
Note: Refer to Figure 1B on page 7 when connecting multiple pads.
