101176 REV E 15
Operating Instructions
QUICK DISCONNECTS
To connect and disconnect quick disconnects to a pad:
1. Push the male coupling onto the female coupling. When you hear an audible click, the connectors are joined
(Figure 7A).
2. To open or close the hose pinch clamps:
•Open the clamp by pushing the serrated end (Figure 7B).
•Close the clamp by pressing the clamp together (Figure 7C).
3. To disconnect, press down on the thumb tab of the female coupling. The couplings will partially disconnect.
4. Pull the male coupling out fully to disconnect (Figure 7D).

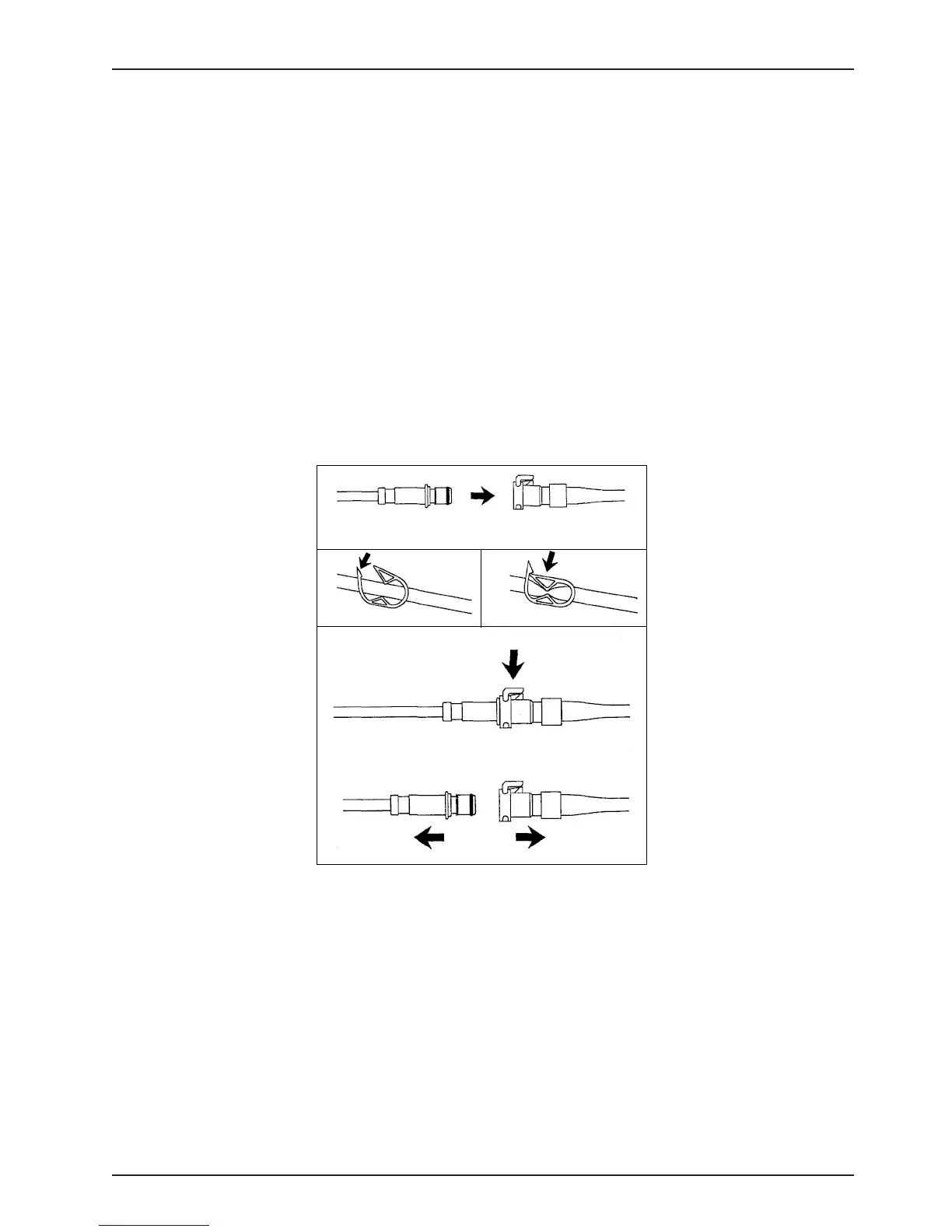

Figure 7: Quick disconnects
7A
7B 7C
7D
