- 19 –

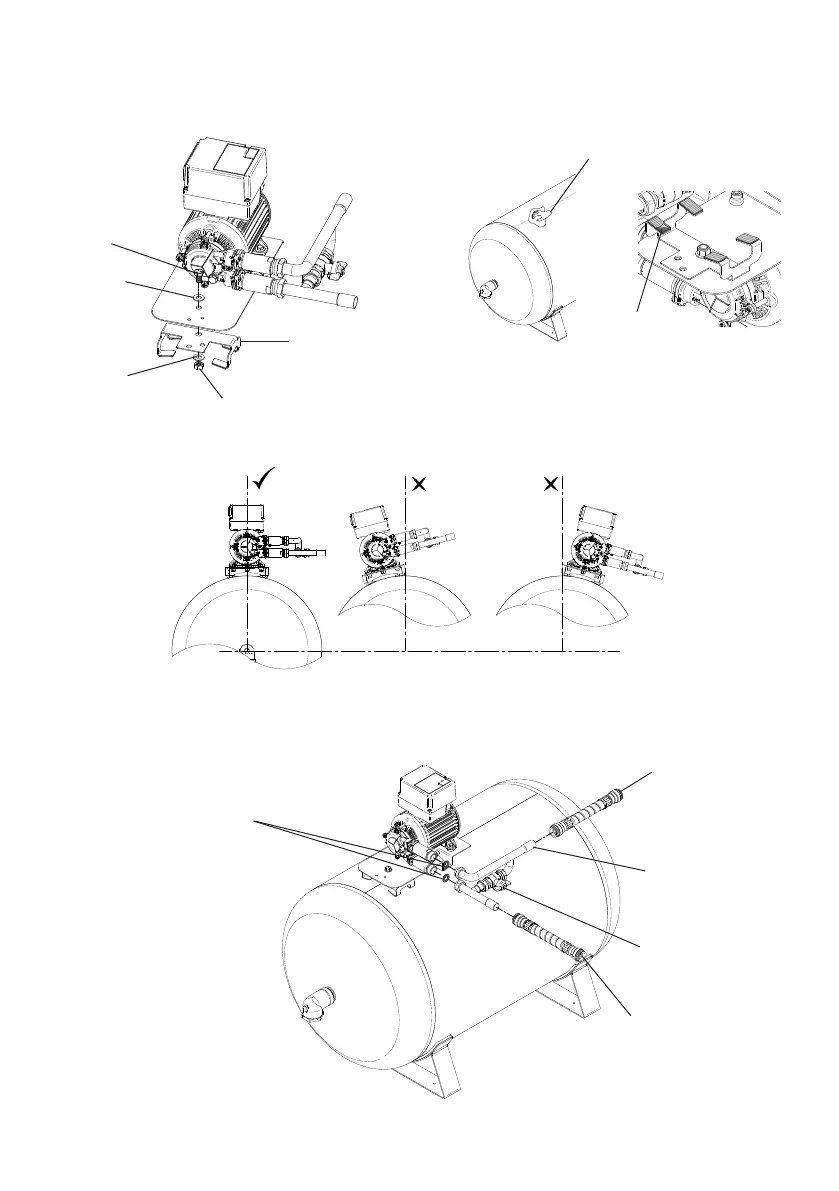

c) Remove the pump and mounting bracket from its packaging and assemble as
shown in Figs. 19, 20 & 21.
d) Connect the supplied hoses, Fig. 22.
Inlet
Outlet
Manifold
assembly
Bypass valve and
integral NRV
Fig. 22
Sealing
washers
Pump mounting bracket assembly
Fig. 19
3/8 " bolt
Mounting bracket
Mounting pump onto the vessel
Fig. 20
Clean surface with
wipes (included)
Remove
protective
covers
Correct pump mount orientation
Fig. 21
3/8 " nut
Washer
Washer
