Studio 54 Alexander 2/3 - Page 10

10

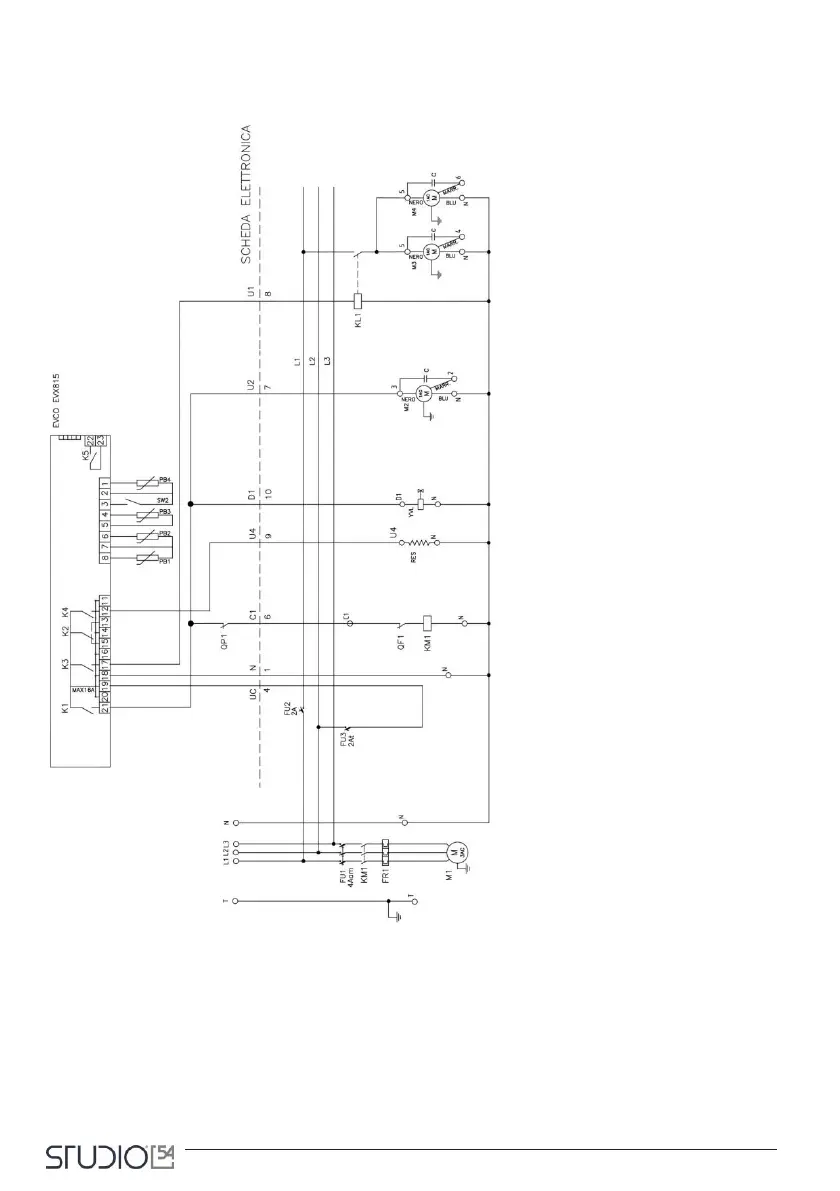

Alexander 10T
M1: Compressor
M2: Condenser fan
M3: Evaporator fan 1
M4: Evaporator fan 2
YVL: Liquid solenoid
RES: Frame heating wire
KM1: Compressor electromagnetic wsitch
FR1: Termical relay compressor
QF1: Nc thermic relay
FU1: Compressor fuse
FU2: L1 fuse
FU3: Fuse
KL1: Evaporator fan relay
K1: Compressor relay
K2: Evaporator fan relay
K4: Frame heating wire relay
PB1: Cold room probe
PB2: Pin probe
PB3: Evaporator probe
PB4: Condensator probe
SW2: Door micro switch
QP1: Nc high pressure switch
C: Capacitor
