The VIDEO A/B switch allows the video outputs of two video
players to be connected to the Fusion and selected from the
front panel. The VIDEO output (on the rear panel) can then be
connected to a single video monitor.

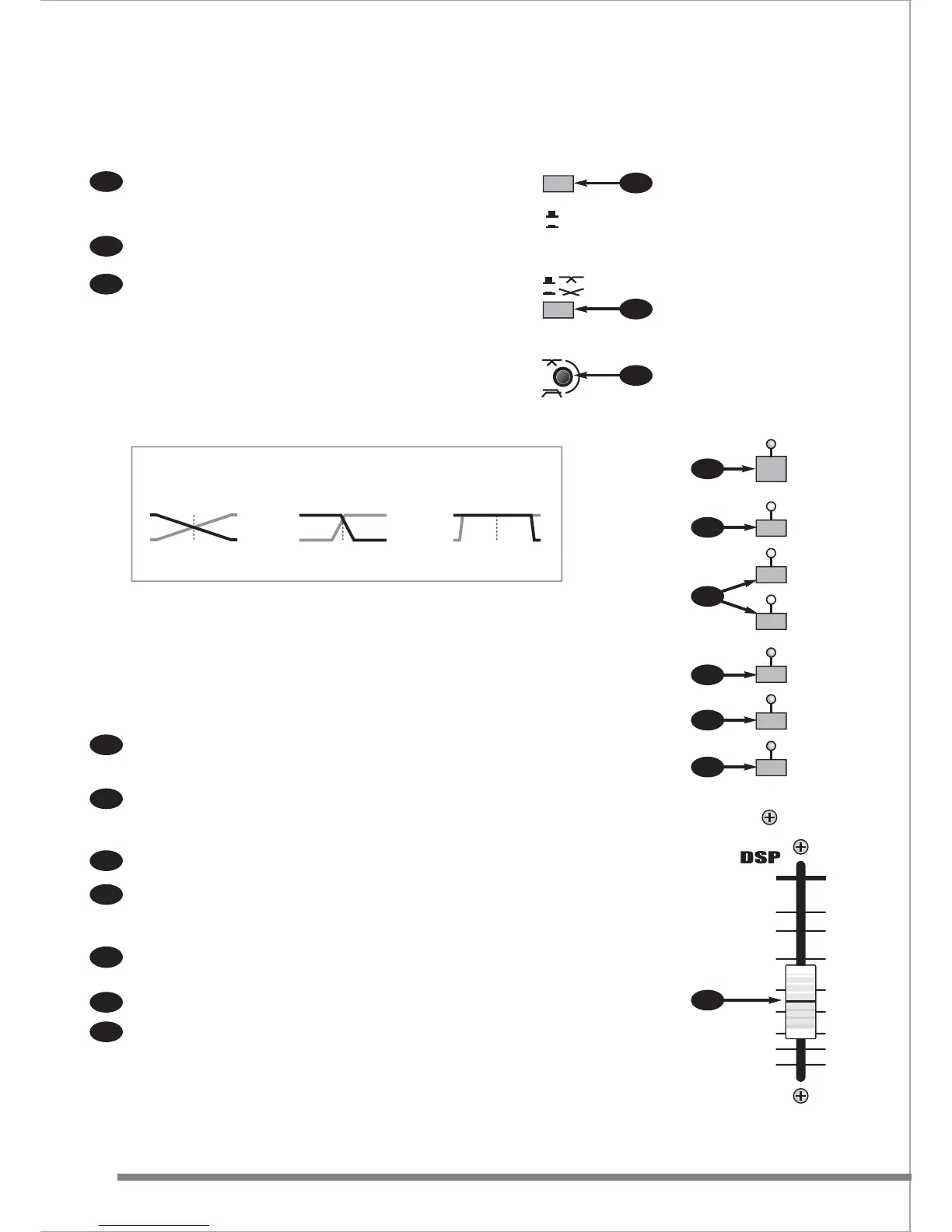

The TAPER 1 switch sets the cross-fader slopes. It switches
between a gradual or quick fade.
The TAPER 2 control adjusts the position on the fader at which
the fade happens. In the clockwise position the signal is faded
to zero at the end of the cross-faders travel, like a
“conventional” cross-fader. In the anticlockwise position the
signal is fully faded out in the centre.
Positions inbetween set the ‘fade out’ anywhere between 50%
and 100% of cross-fader travel.
For the classic ‘Cross Mix’, select the Taper 1 switch ‘in’ and
the Taper 2 control fully clockwise.
DSP SECTION
DSP ON switches the effects processor on or off. When the
effects processor is on, the LED will light. This function is also
available via footswitch control, see rear panel, 57.
VOCAL 1 : a combination of reverb and delay developed by
Studiomaster and the choice of many professional performers
world wide.
SMALL & LARGE REVERB : good quality reverbs, great for ballads.
ADT : automatic double tracking : a technique used in the 60s
which adds a small delay to the voice giving a thicker, more
powerful vocal.
CHORUS : a modern, subtle effect that works well with voices
in the upper range.
ECHO : a classic rock & roll delay with several repeats.
THE DSP fader sets the amount of effect going to
the main output. Used around the mid-way position, the sound
effect will tend to be more subtle. With the fader at the top
(0dB) position the effect becomes more prominent.
36
38
37
39
40
41
42
33
34
35
TAPER 2
TAPER 1
0dB
-10
-15
-20
-30
-40
8
-5
DSP
ON
VOCAL 1
SMALL REV
LARGE REV
ADT
CHORUS
ECHO
