AIR BOOSTER 2
ACTBALDG ACTBAHDG
© STULZ SpA . – all rights reserved EN/10.2018/IT30I
1.

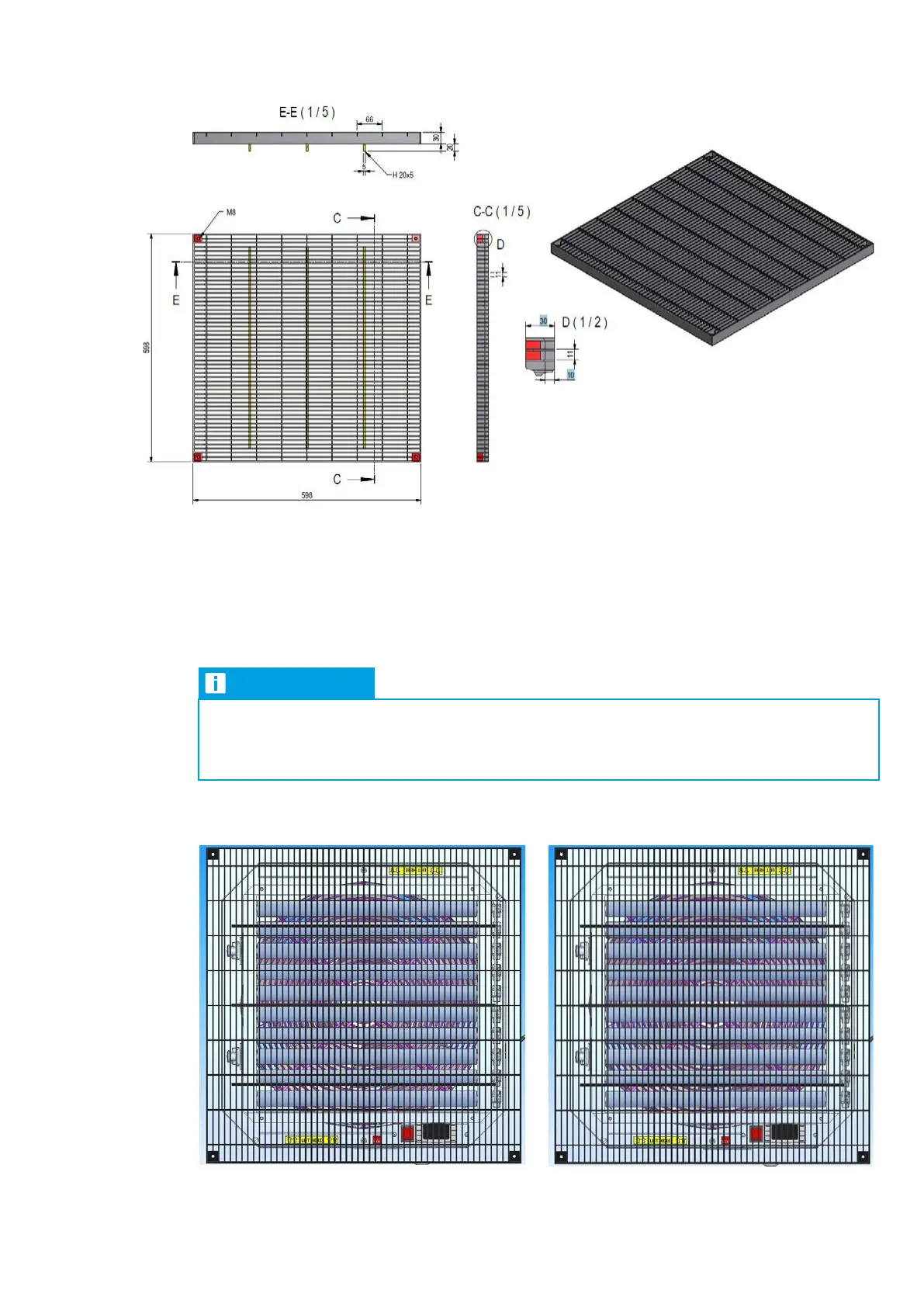

12.3. Installation of the grille
The grille has to be installed above the Air Booster 2 unit, using 4 threaded pins, that can be regulated
using an hexagonal 4 mm Allen key in order to correspond with the height of the floor.
Apply 4 adhesive protection in the bottom side of the grille to protect the unit.
INFORMATION
In order to maintain the by the "guide vanes" intended air direction, the grille must be oriented so
that the bearing bars are 90° rotated to the "guide vanes". Otherwise, the supply air will rise up
vertically and not directed to the intended zones in front of the rack.
The grille has to be positioned on Air Booster 2 units as shown in the pictures below.
