21
1
2
3
6
4
5
7
8
1
2
3
6
4
5
7
8
ASD 700 CW2
ASD 850 CW2
ASD ... CW2 700 850
ø bauseits mm 42 54
Außengewinde Zoll 1 1/2 2
© STULZ GmbH – all rights reserved EN/06.2017/G18D
cyberair 3PrO cw2 Original instructiOns

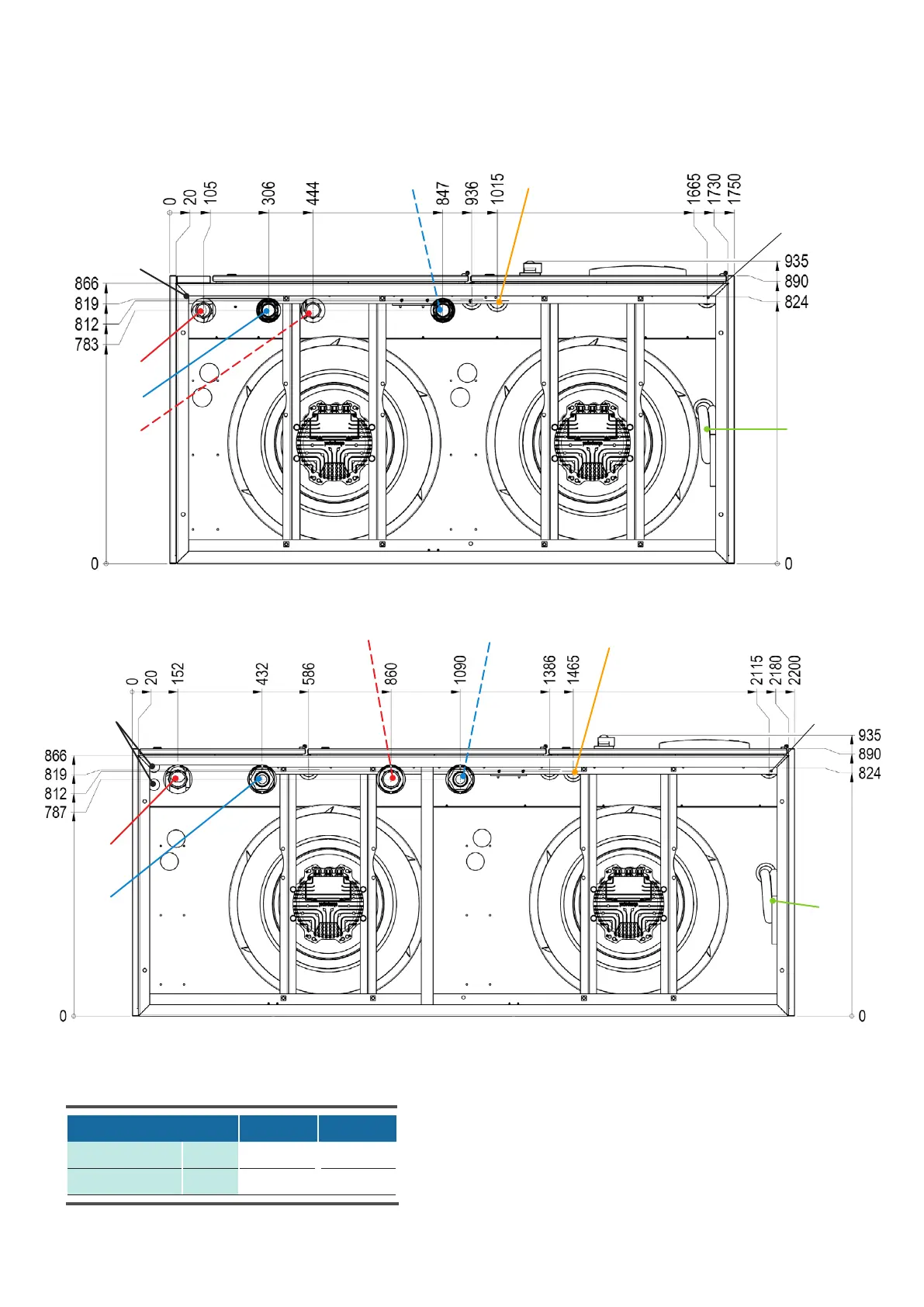

Bottom view
unit rear side
unit rear side
Diameter of the chilled water lines
Legend:
1 - chilled water inlet 1
2 - chilled water outlet 1
3 - power supply
4 - condensate drain
5 - control lines
6 - humidifier in-/outlet
7 - chilled water inlet 2
8 - chilled water outlet 2
ASD ... CW2
ø by client mm
external thread inch
