22
1
2
3
6
4
5
7
8
ASD ... CW2 1090
ø bauseits mm 54
Außengewinde Zoll 2
ASD 1090 CW2
EN/06.2017/G18D © STULZ GmbH – all rights reserved
cyberair 3PrO cw2 Original instructiOns
Diameter of the chilled water lines
Legend:
1 - chilled water inlet 1
2 - chilled water outlet 1
3 - power supply
4 - condensate drain
5 - control lines
6 - humidifier in-/outlet
7 - chilled water inlet 2
8 - chilled water outlet 2

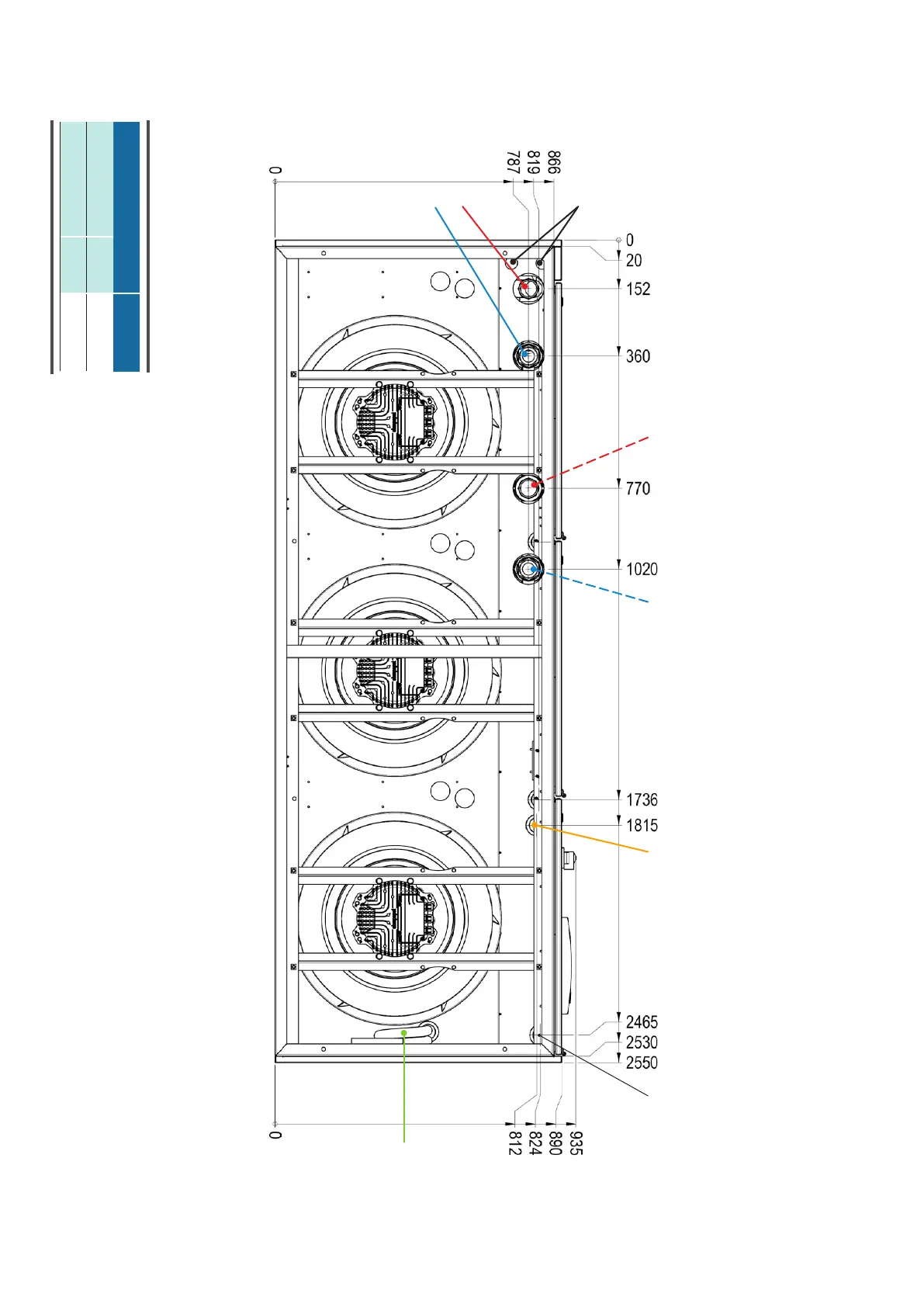

unit rear side
Bottom view
ASD ... CW2
ø by client mm
external thread inch
