1
L1
L3
L1
C
D
A
B
T
450
L2E
Baugröße 1 2 3 4 5 7
A mm 910 1360 1710 2160 2510 3070
B mm 130/47,5* 210 182 69 173 42,5/65*
C mm - - - - 993 -/1027,5*
D mm - - 927 1276 1738 1728/2190*
E mm 75/67,5* 68 68 67,5 68 52,5/67,5*
L1 mm 700/815* 1015 615 815 615 1300/815*
L2 mm 300/315* 315 315 315 315 345/315*
L3 mm - - - - 615 1015*
T mm 865 865 865 865 865 955
N° 1/1* 1/1* 2/2* 2/2* 3/3* 2/3*
© STULZ GmbH – all rights reserved EN/11.2016
air side connection
Cabinet size

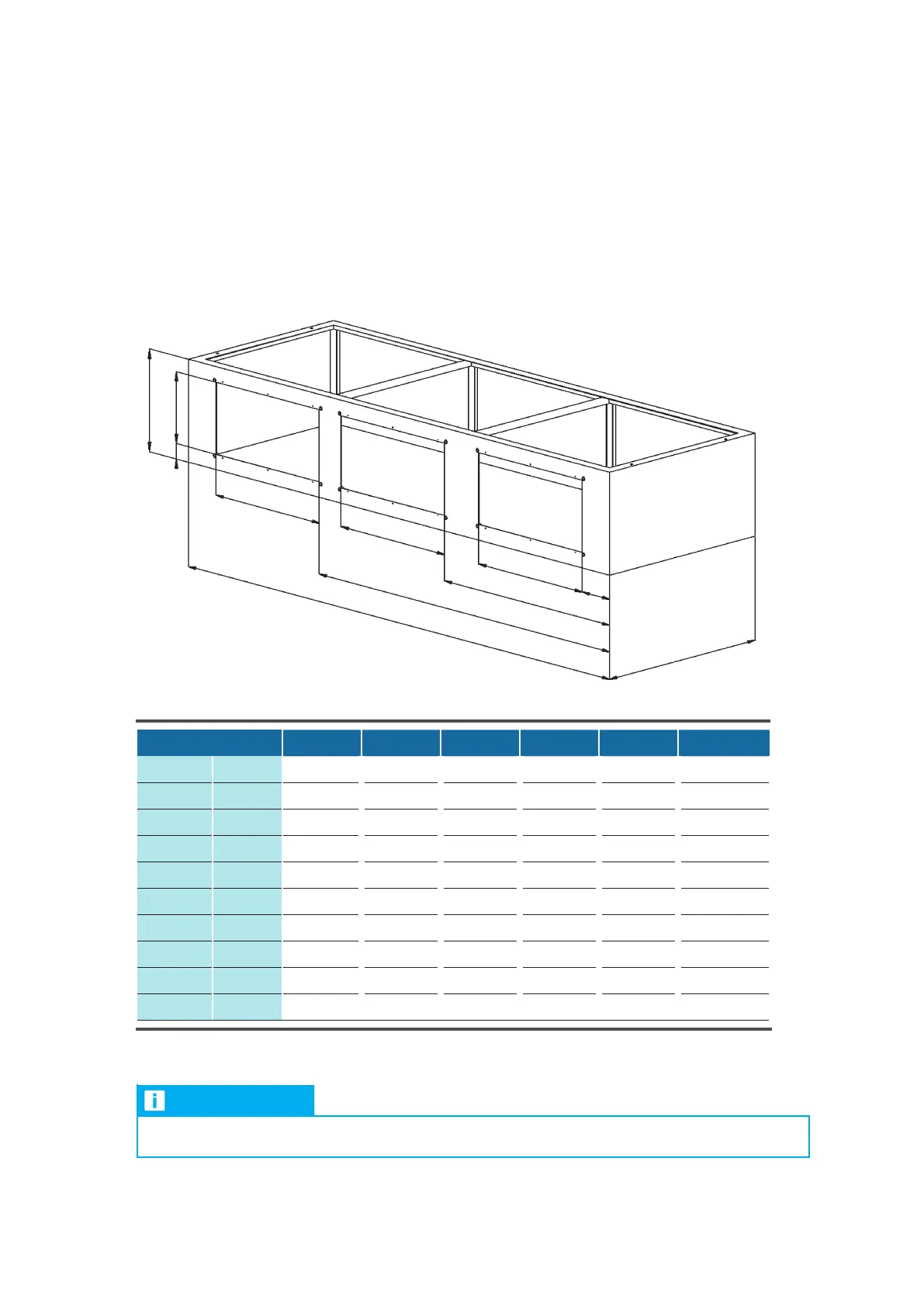

11.3 Air side connection
11.3.1 Unit base
The unit base is available in the versions: open, with damper, with flexible connection or with supply grilles.
The unit base can be installed in two ways, with the opening to the front or with the opening to the rear.
*version with grilles N°: number of openings
NOTICE
Each of the unit base versions must be screwed to the unit by 4 M10 screws!
