Stulz ASU series - Page 54

2
L4/L5
L4/L5
150
300
120
38
300
345
L4/L5
175
Baugröße 1 2 3 4 5 7
L4 mm 700/800* 1000 600 800 600 1300/800*
L5 mm - - - - 600 1000
L4/L5
EN/11.2016 © STULZ GmbH – all rights reserved

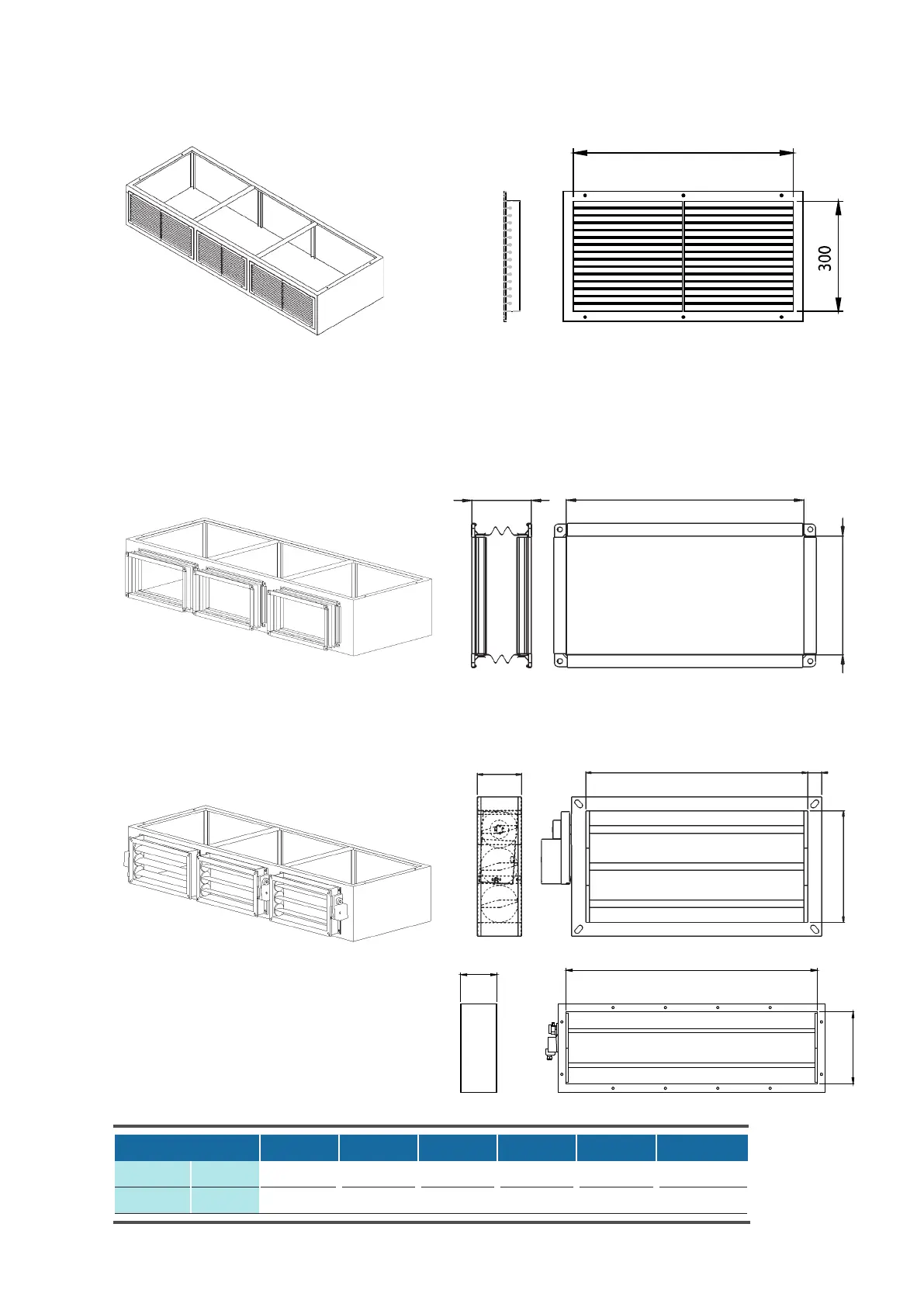

air side connection
Unit base with damper
Unit base with flexible connection
Unit base with grilles
The standard grilles are equipped with horizontal fins which can be adjusted to conduct the air which is blown out.
Cabinet size 7:
L5 for middle position at size 5 and 7.
Cabinet size
