3
Baugröße 1 2 3 4 5
Gerätebreite mm 950 1400 1750 2200 2550
A mm 910 1360 1710 2160 2510
B mm 400 293 376 376 456
Filteranzahl 2 4 4 5 5
© STULZ GmbH – all rights reserved EN/11.2016
air side connection

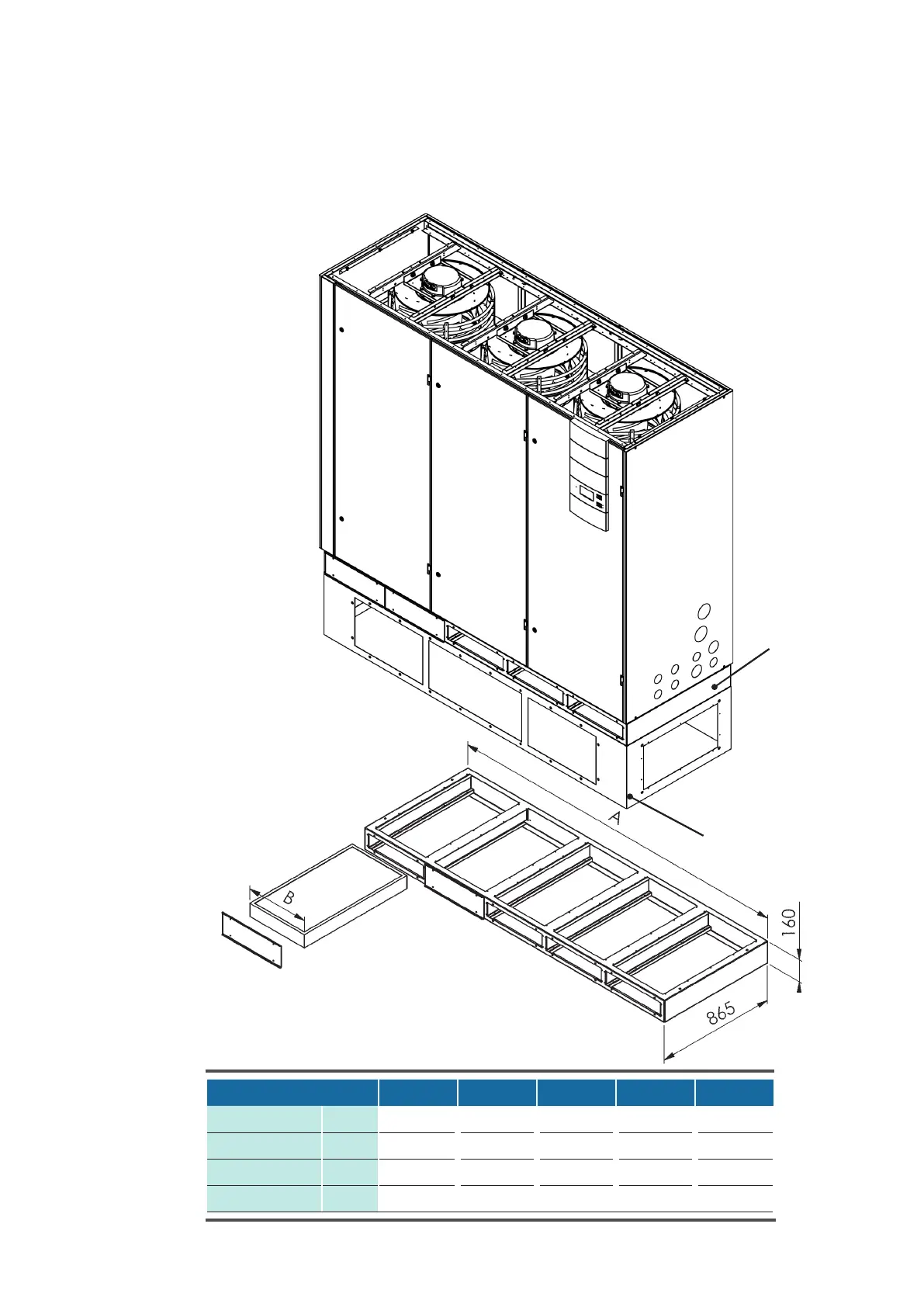

11.3.2 Filter base
The filter base is designed for the option „suction from bottom“. With this option for upflow units the front
panels are not provided with an air inlet perforation as otherwise usual. The air is drawn in from the bottom, in
consequence there is no unit bottom plate.
Filter base
Unit base or raised floor
stand
Cabinet size
unit width mm
A mm
B mm
N° of filters
