Stulz ASU series - Page 63

1
1
2
3
4
5
7
B
L1
L2
L1
T
T1
Baugröße 1 2 3 4 5 7
B mm 910 1360 1710 2160 2510 3070
L1 mm - - 815 - 598 738
L2 mm - - - 1040 1215 1495
T mm 865 865 865 865 865 955
T1 mm 785 785 785 785 785 875
Stützen Stk 4 4 6 6 10 10
Rechteckprofile 7040 Stk 4 4 4 5 5 5
Mafundstreifen Stk 4 4 6 6 10 10
Schrauben M830 Stk 8 8 12 14 22 22
1095
© STULZ GmbH – all rights reserved EN/05.2017
raised floor stand
11.4 Raised floor stand
The floor stand is used to adjust the height of the A/C unit to the existing raised floor and consists of an encir-
cling rectangular profile of galvanized steel with adjustable screw sockets. Anti vibration compound is recom-
mended between concrete floor and base plate.

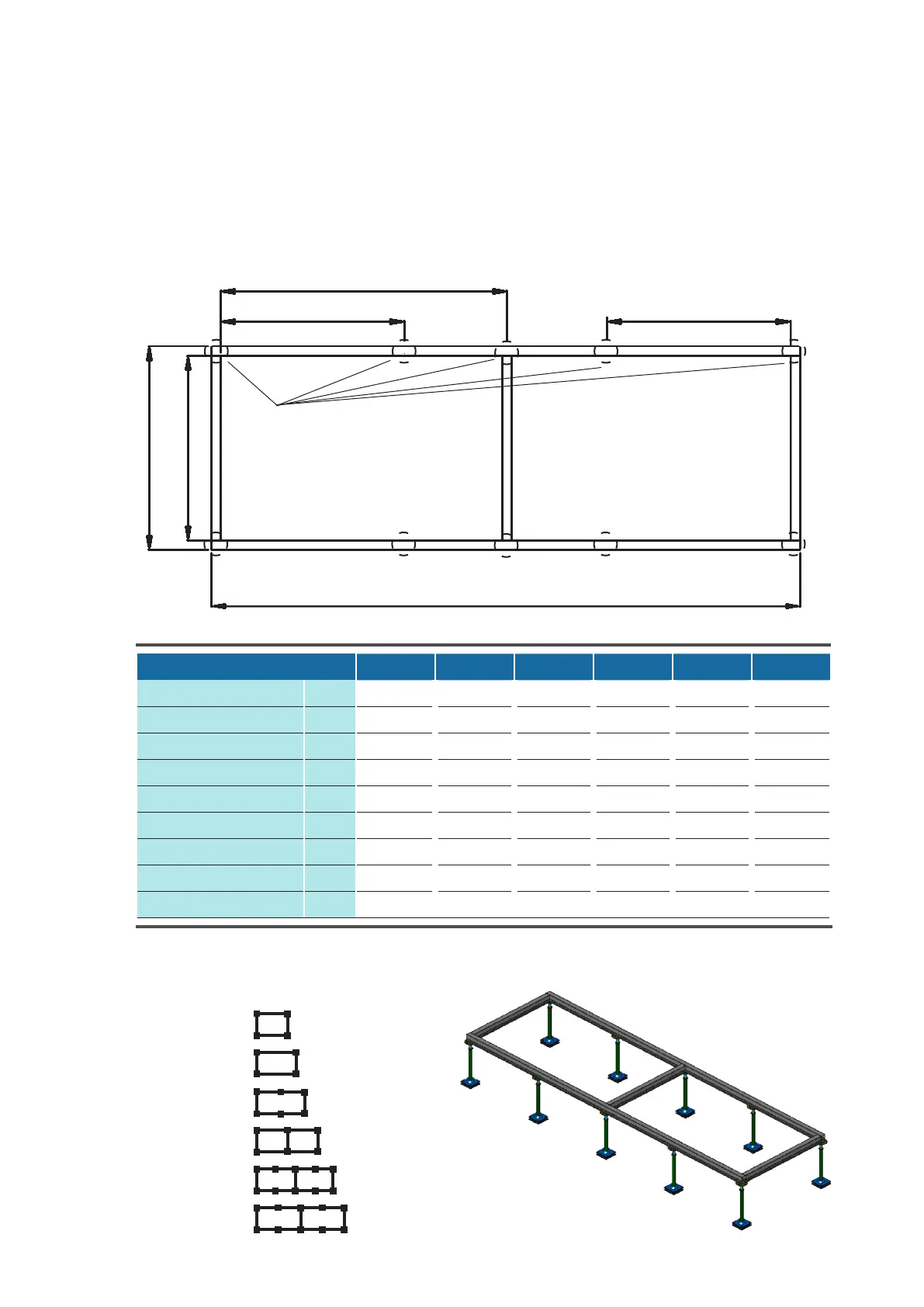

Dimensions from inner side of the lateral profile to the middle of the support
L1 - Position of the support without cross beam
L2 - Position of the support with cross beam
Locating the supports
(same on the other side)
e.g. for size 5 and 7:
Cabinet size:
Cabinet size
B mm
L1 mm
L2 mm
T mm
T1 mm
Supports n°
Rectangular profiles 7040 n°
Mafund strips n°
Screws M830 n°
