raised floor stand
Other mounting options (e.g. louvers)
Iflouversshallbeinstalledbeneaththeunit,thesemustberstmountedontotheadapterplate.
•installthelouveractuatorontheshaft,sothatitwilllaterbeontherightunitsideintheproximityoftheelec-
tric cabinet.
Positioning of the A/C unit on the floor stand
WhenpositioningtheA/Cunitontheoorstand,itmustbebroughtpreciselyintothecorrectpositionabove
the floor stand from the front (under no circumstances diagonally).
•usemountingaidstobringintheunitand
secure these by fixing belts at the A/C unit.
•layatleasttwosecuringinstruments(e.g.
square steel bars) on the stand to avoid a
slip-off.
•whentheunitisintherightpositiontakeaway
the securing aids and set down the unit.
•nowpullawaythemountingaidsunderthe
unit.

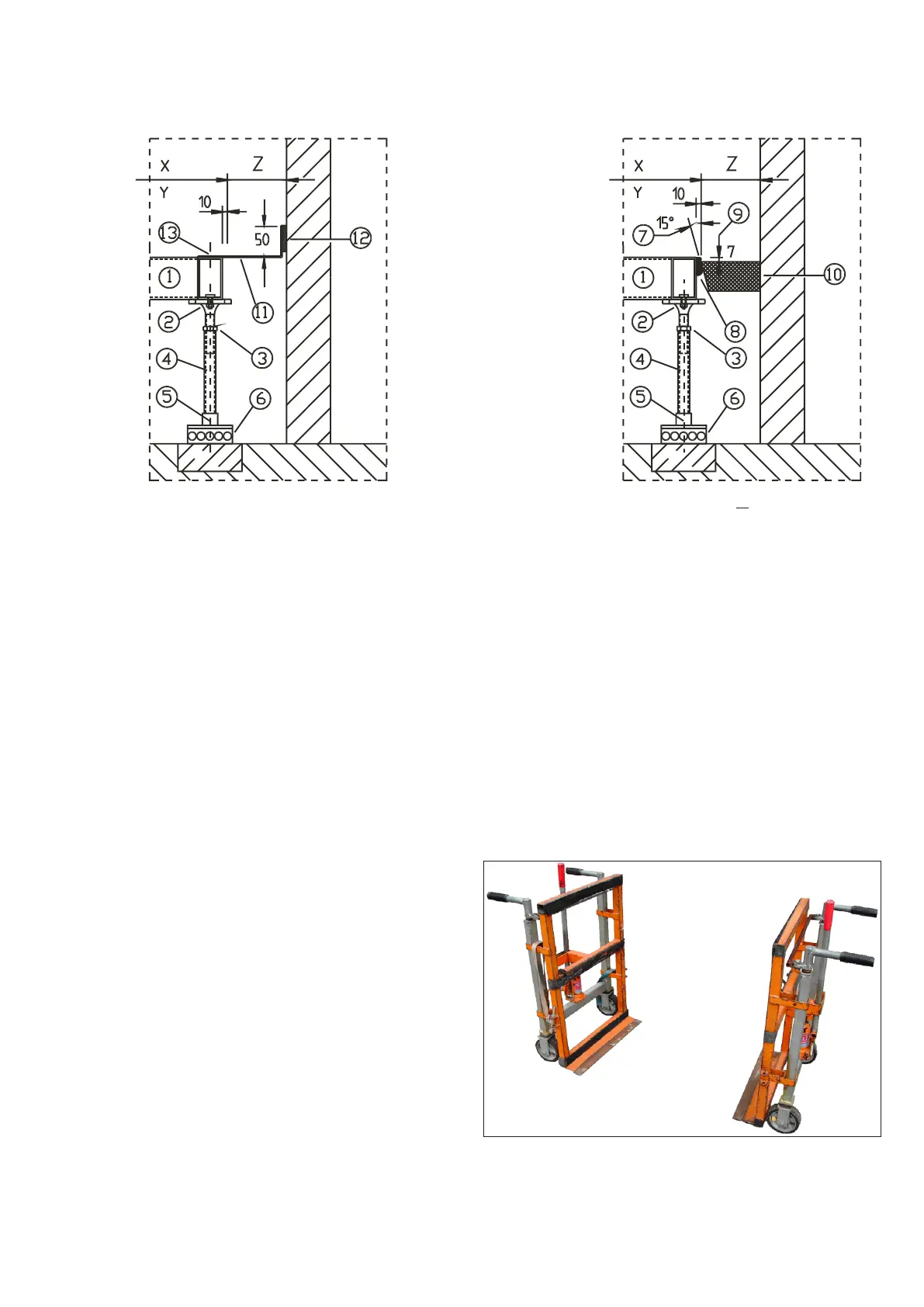

when distance Z > 100 mmwhen distance Z < 100 mm
Detail of raised floor connection
Raised floor stand
Adjustable support plate
Adjusting nut
Support pipe
Support base
Mafund plate
Raised floor cut out angle
Continuous seal profile
(use closed-cell material only)
Before unit installation
Raised floor plate
Angled bracket
Permanently elastic seal
Fixing
1
2
3
4
5
6
7
8
9
10
11
12
13
Mounting aid
