Series GEN 2 Ultrasonic Humidifier IOM Manual
Mounting Rack (Optional)
A multi-tier mounting rack can be provided. This enables the assembly of 1 to 5 ultrasonic units together for
installation in an AHU or in an air duct.
The mounting rack (Figure 2) is designed to support the total weight of the humidifiers mounted to it. It
establishes the optimal spacing between units to ensure efficient operation. The humidifiers are shipped
preassembled to the mounting rack. This conveniently combines all the humidifier(s) water connections.
For point to point wiring terminations, follow the electrical drawing supplied with your system.
A manual shut- off valve is installed for all the humidifiers on the rack. A water conductivity probe is shipped
loose for field installation in the customer provided supply piping.

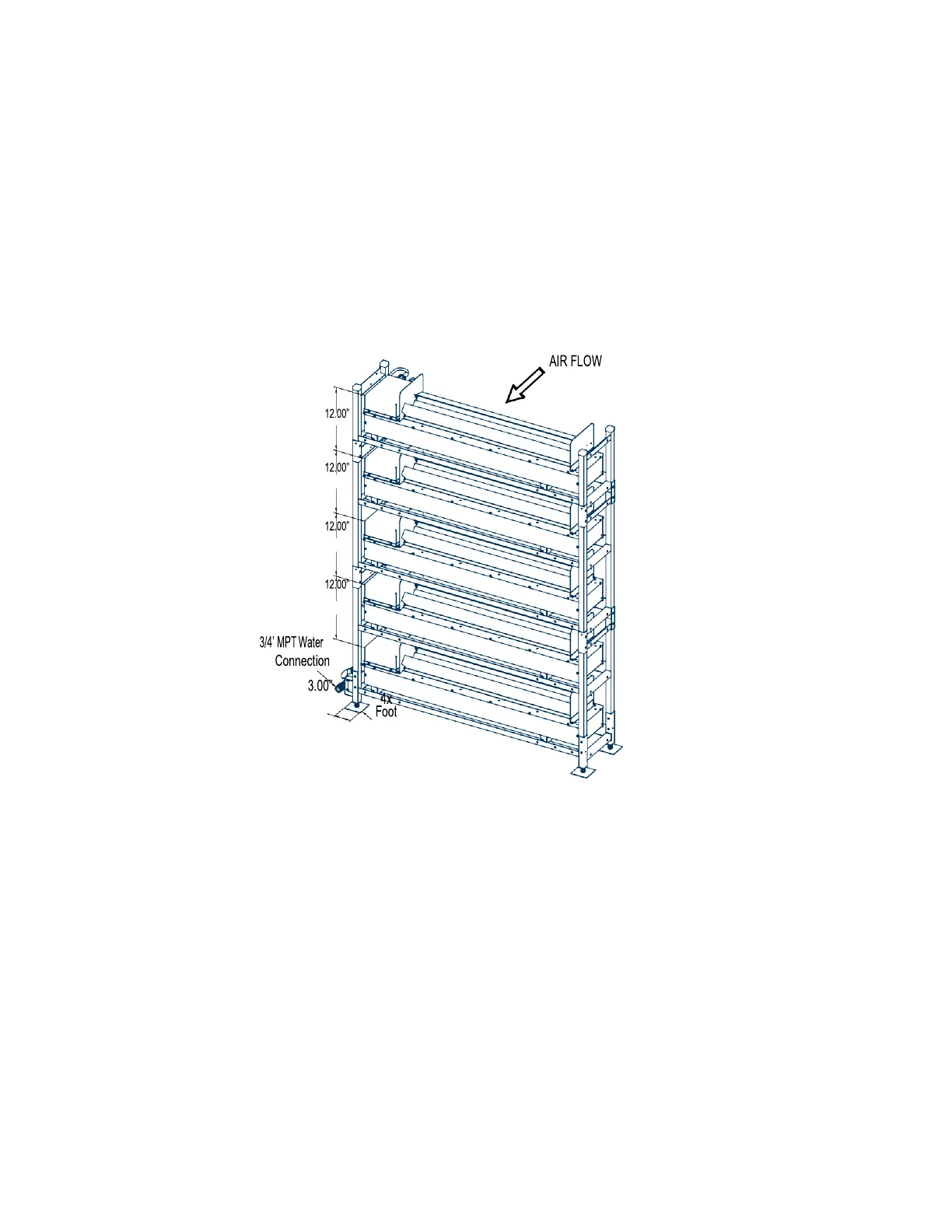

Figure 3. Humidifier Mounting Rack
Front View with five Humidifiers
