Series GEN 2 Ultrasonic Humidifier IOM Manual
Mounting and Placement
Ultrasonic humidifiers are designed for mounting to a flat surface. Ensure the mounting surface is capable
of supporting the weight of the unit. Weight estimates can be found on the installation drawing provided
with your unit. Secure the unit with fasteners (field supplied by others) so that it will not move during
operation.

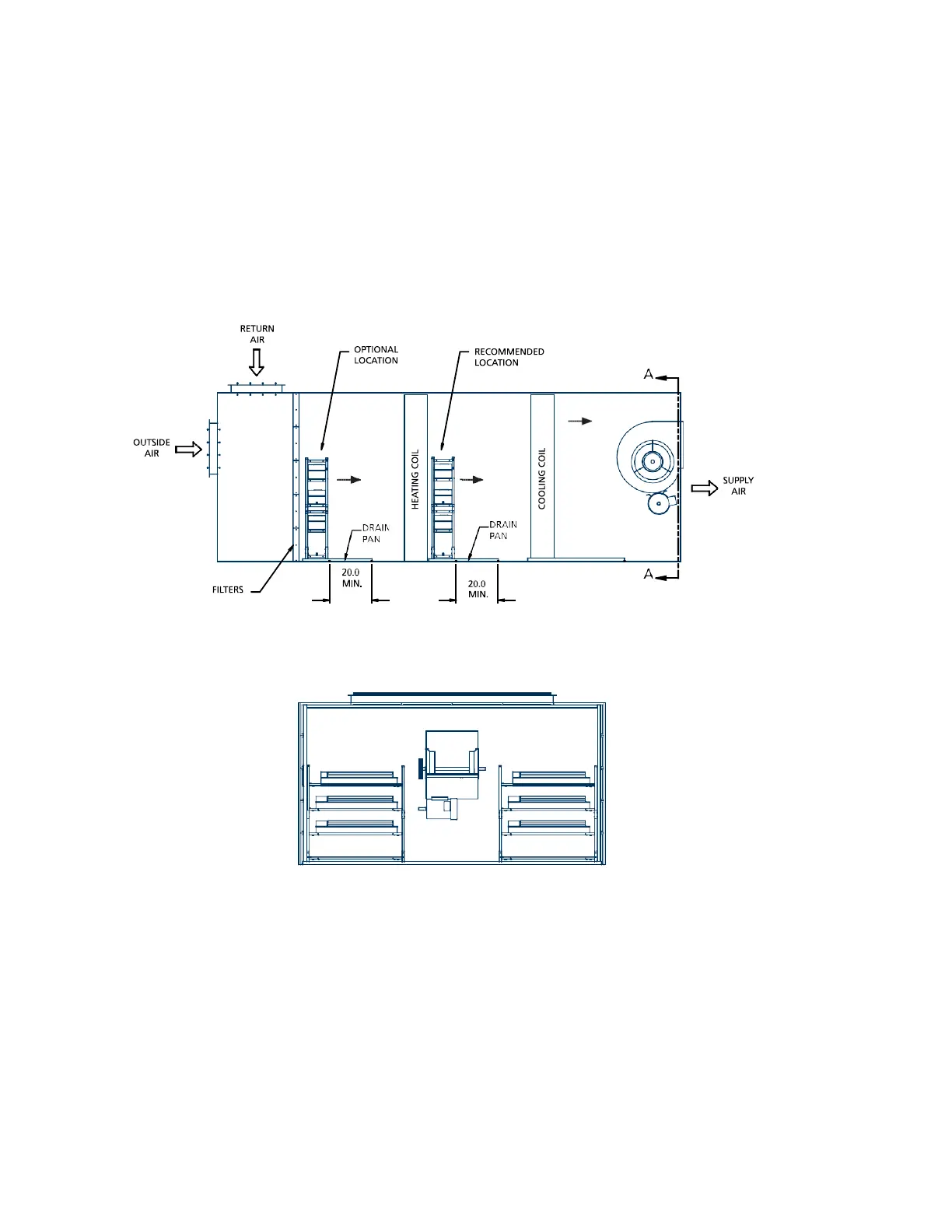

Figure 4. Ultrasonic Humidifier Mounting
SIDE VIEW
