Series GEN 2 Ultrasonic Humidifier IOM Manual
Drawings

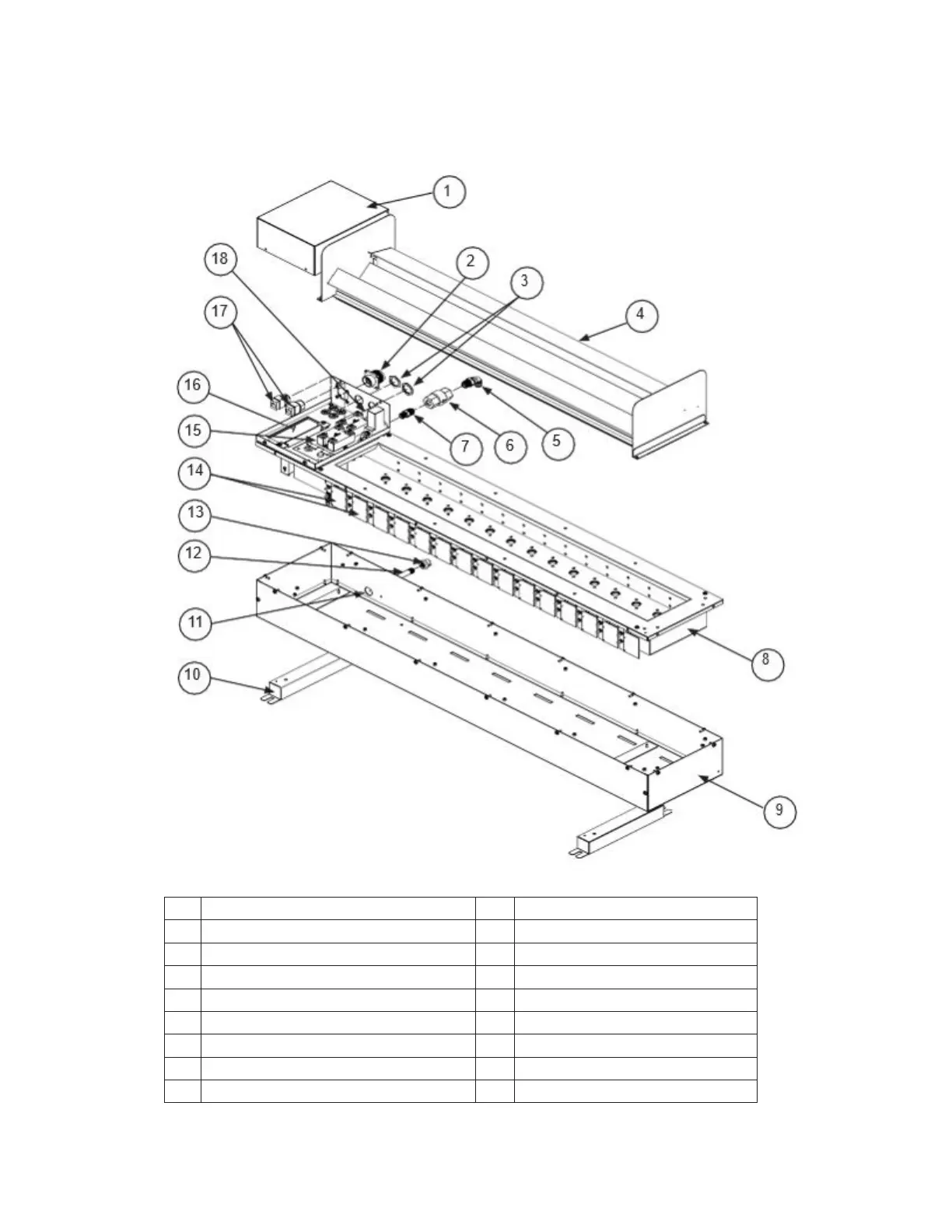

Unit Component Layout Drawing of Humidifier (Exploded View)
The numbers in the drawing above coincide with the item numbers listed below.
1 Electric Box Cover 10 Mounting Foot
2
Power Connector
11
Hole For Drain Stub
3
Lock Nuts
12
Drain Stub
4 Mist Guide Cover 13 Drain Cap
5
Water Inlet 90° Fitting
14
Print Plates
6
Water Supply Strainer/Flow Regulator
15
Solid State Relay
7
Nipple
16
Slot For Level Control Board
8 Water Tank 17 Data Communication Connectors
9
Base
18
Fill Solenoid
