Basic usage (continued)

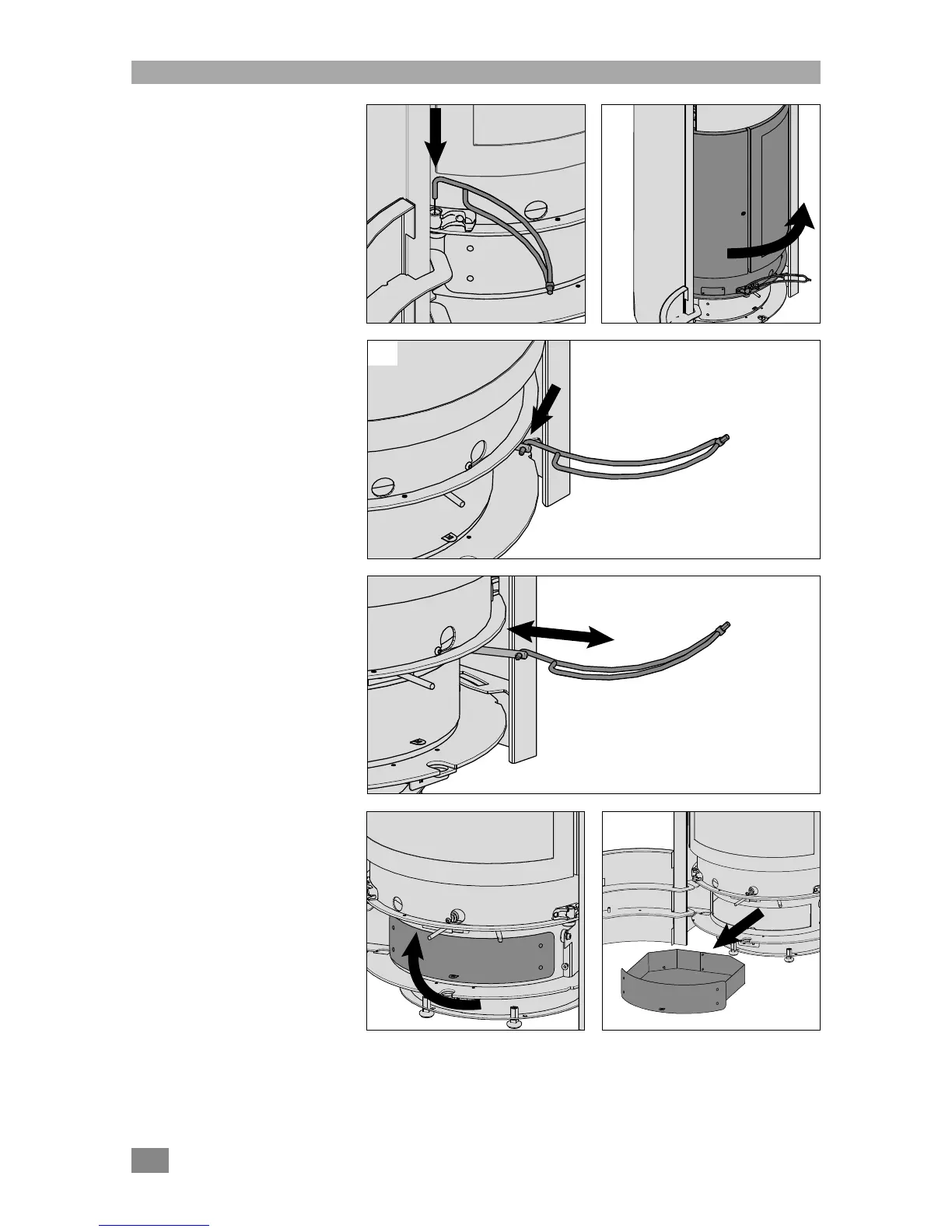

Rotating the drum
– Open the ash-pan door.
– Place the end of the cold grip in the
cylinder located on the left
[photo 5].
– Push towards the centre of the stove
(lever effect) to release the drum
bolt [photo 5].
– Pull towards the right until the next
stop [photo 6]. Ensure that you
always rotate the drum from left to
right.
– Close the ash-pan door.
Using the riddling mechanism
– Open the ash pan door.
– Place the end of the cold grip
sideways into the mechanism
located on the right [photo 7].
– Move the mechanism backwards
and forwards [photo 8] to release
the ash into the ash pan.
Opening the ash pan
– Open the ash-pan door.
– Pull the ash-pan handle upwards to
release the pan [photo 9] and then
pull it towards you [photo 10].
When replacing the ash pan, ensure
that it locks in place.
