Stûv 30 - directions for use [en] - 07/13

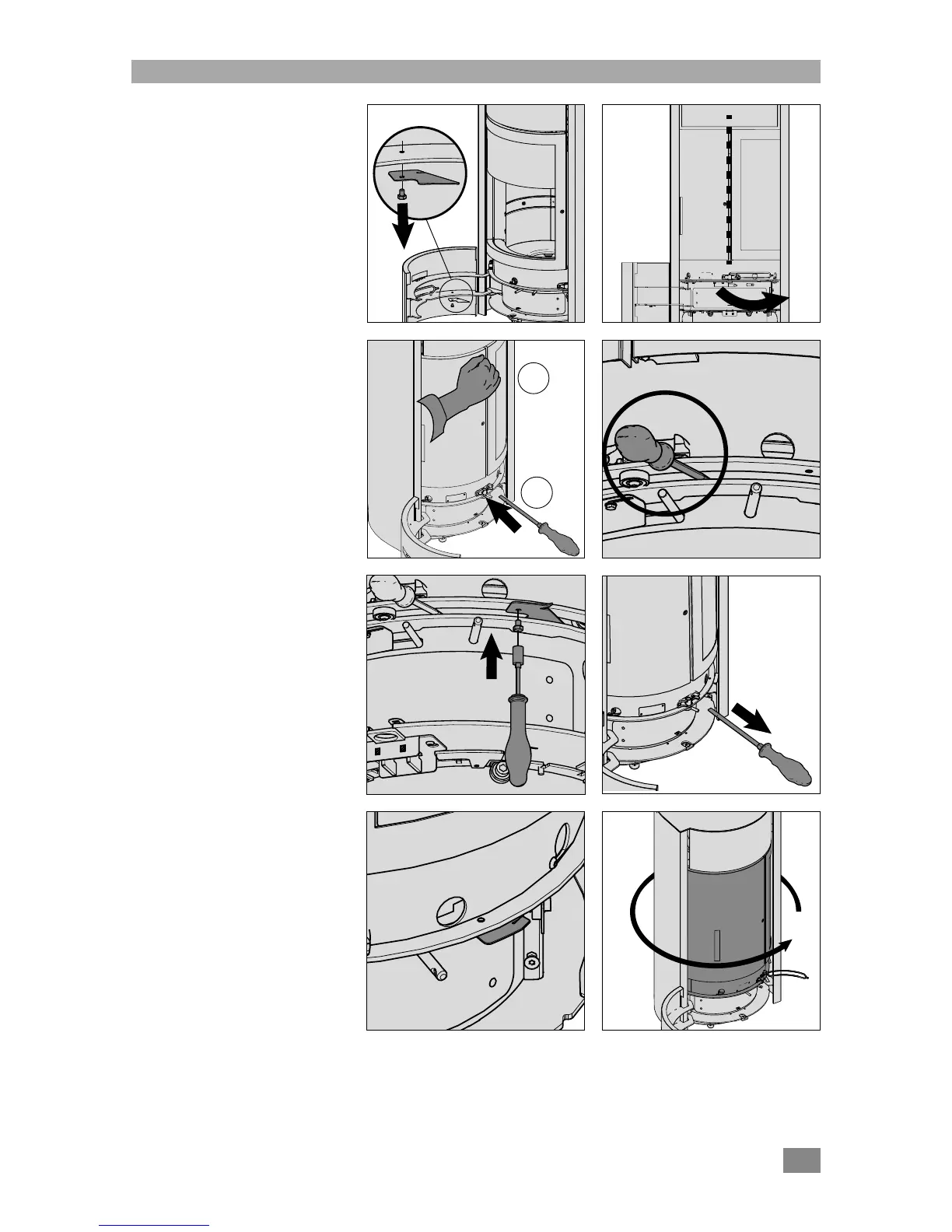

Ash can fall between the fixed part of
the stove and the drum where it may
hinder the rotation of the drum and
generate noise.
To avoid this inconvenience, we
recommend that you clean this section
of the stove twice a year.
– Open the ash pan door and locate
the scraper fitted underneath the
lower crosspiece.
– Unscrew the scraper (using the
10-mm open-end spanner)
[photo 1].
– Position the glass door at the
halfway point [photo 2].
– With one hand, push the drum
backward and, with the other, insert
the flathead screwdriver between
the bottom of the drum and the
fixed part of the stove
[photos 3 and 4].
– The scraper screws into the empty
threaded hole located near the
26-mm Ø hole [photos 5].
– Insert and screw the scraper
(point to the right and locking lug
upwards) into the opening created
by the screwdriver [photo 5].
– Push the point of the scraper
towards the opening.
– Remove the screwdriver [photo 6]..
– Rotate the drum several times. It
is more difficult to rotate with the
scraper inserted. Use both hands
[photo 8].
When finished, remove the scraper :
position the glass door at the halfway
point and place the screwdriver
between the drum and the fixed
part of the stove [photo 3]. Unscrew
and remove the scraper [photo 5].
Remove the screwdriver [photo 3].
Store the scraper in the door.
Cleaning between the fixed part of the stove and the drum
