Stuv 30 - Putting Out the Fire; Adjusting the Combustion; Basic Adjustment; Fine Adjustment

19
SN 138804 - ...
+
1
1 2
3
4
5
Stûv 30 - directions for use [en] - 07/13
Putting out the fire
Adjusting the combustion
– Do not put any more fuel onto the
fire.

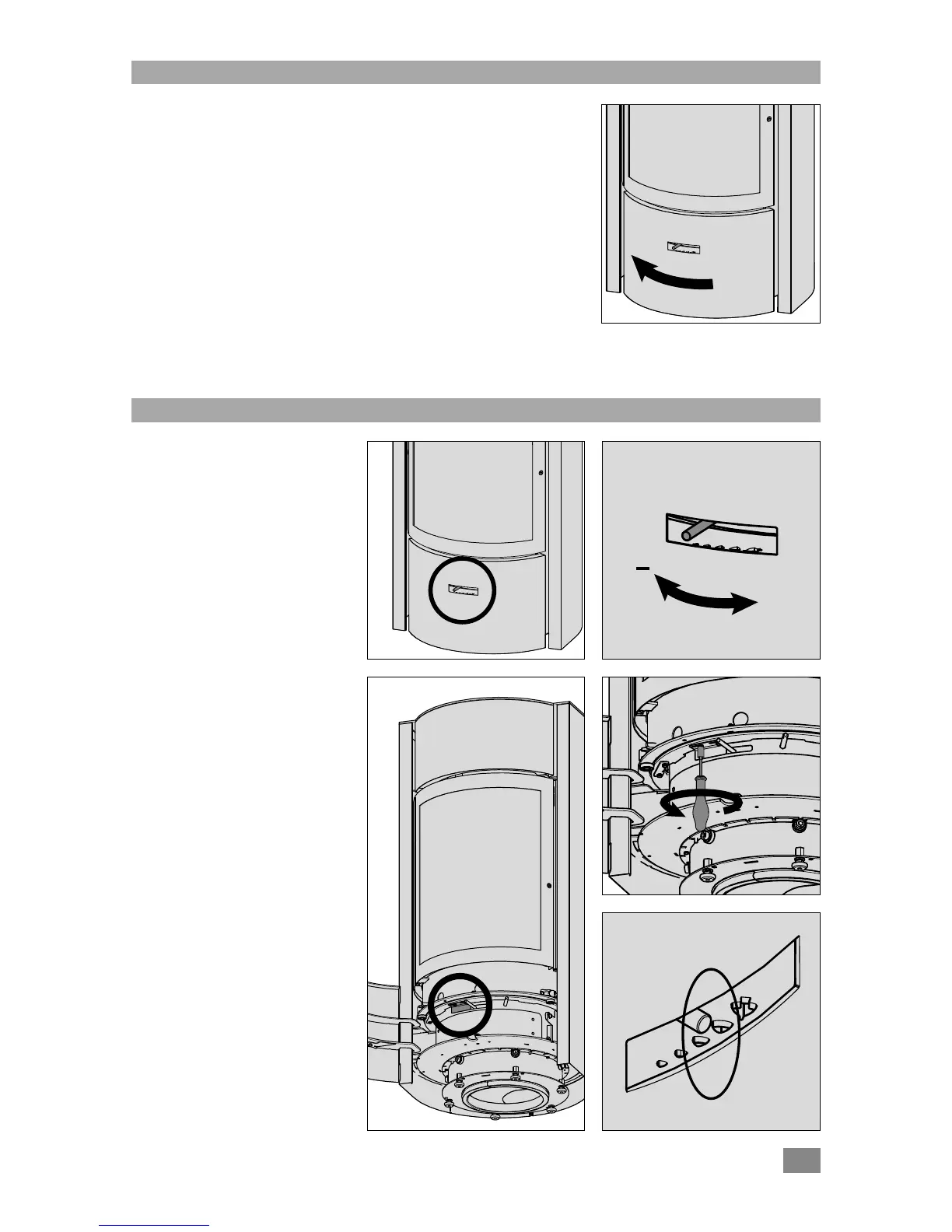

– Close the air inlet valve [photo1].
– Check that the stove is properly
closed.
– Let the fire die down.
Basic adjustment :
Slide the damper lever to the left
to close the damper and reduce the
combustion air intake. Slide it to the
right for the opposite effect
[photos 1 and 2].
Fine adjustment :
ATTENTION !
In smoke control areas the minimum
valve opening stop must not allow to
reduce the valve opening lower than
the medium position.
The air stop is set between positions 3 and
4 [diagram 6]
If the draught is too weak, you
can improve it by increasing the
temperature of the combustion gases.
1) Preliminary precaution : adjust the
position of the minimum damper stop.
– Open the ash-pan door and locate
the stop on the top left side
[photo 3].
– Undo the two screws (M5 hexagon
head bolt using the 8-mm spanner)
[photo 4].
– Slide the stop slightly to the right
[photo 5], then screw it back in
place.
When the fire is out
– Close the outside air inlet. This will
prevent your house from becoming
cold.
– Position the stove in closed-door
mode. You will avoid dust deposits
on and bleaching of the glass.
1
2
3
4
5
6
