Stûv 30 - directions for use [en] - 07/13
Chimney-sweeping (continued)
Whatever method is used to sweep
the chimney, the smoke deflector
parts must be removed.

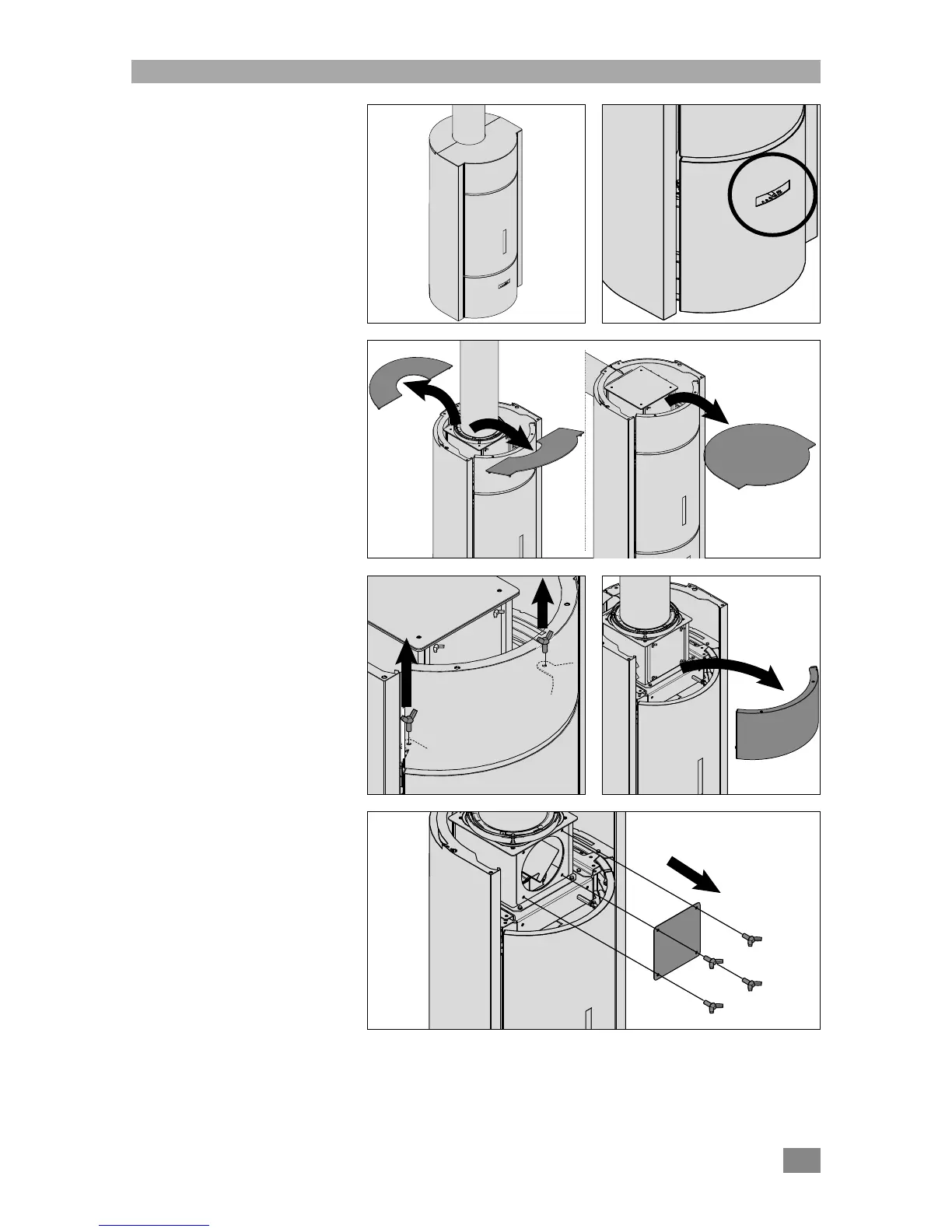

Before doing so :
– Place the stove in the closed-door
position [photo 1].
– Close the damper by sliding it
completely to the left [photo 2].
Access the flue sweeping door
- Remove the top plate [photo 3]
- Remove the front of the stove
[photos 4 & 5].
- Take the cover off the door [photo
6]
