Subaru 2002 Forester - Type a Audio Set (if Equipped)

FORESTER (NA) A8050BE–A (ENG.)
5-6
Type A audio set (if equipped)
The audio set will operate only when the ignition switch is in the “ACC” or
“ON” position.

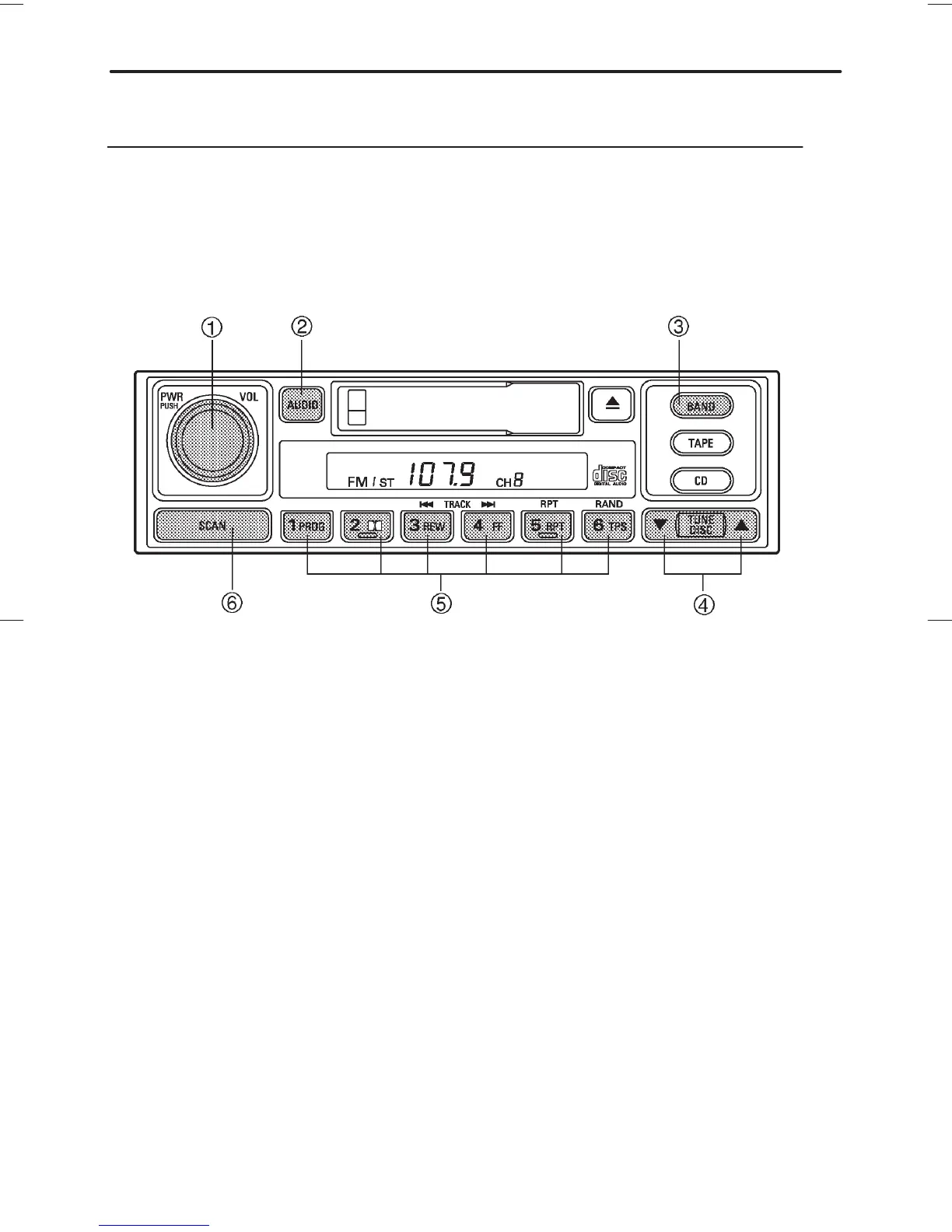

Radio operation
HS5003BB
1 Power switch/Volume, Tone,
Balance, Fader control dial
2 AUDIO button
3 BAND button
4 Tuning buttons
5 Preset buttons
6 SCAN button
B Power switch and volume/bass/treble/fader/balance control
n Power switch and volume control (PWR/VOL)
The dial
1 is used for both power (ON/OFF) and volume control. The
radio is turned ON and OFF by pushing the dial and the volume is
controlled by turning the dial.
n Tone and balance control (AUDIO)
The volume control dial
1 normally functions as a volume control.
This dial becomes a control for Bass, Treble, Fader or Balance when
you select the appropriate tone and balance control mode.
