Brake pedal
Check the brake pedal free play and reserve distance according to the
maintenance schedule in the “Warranty and Maintenance Booklet”.

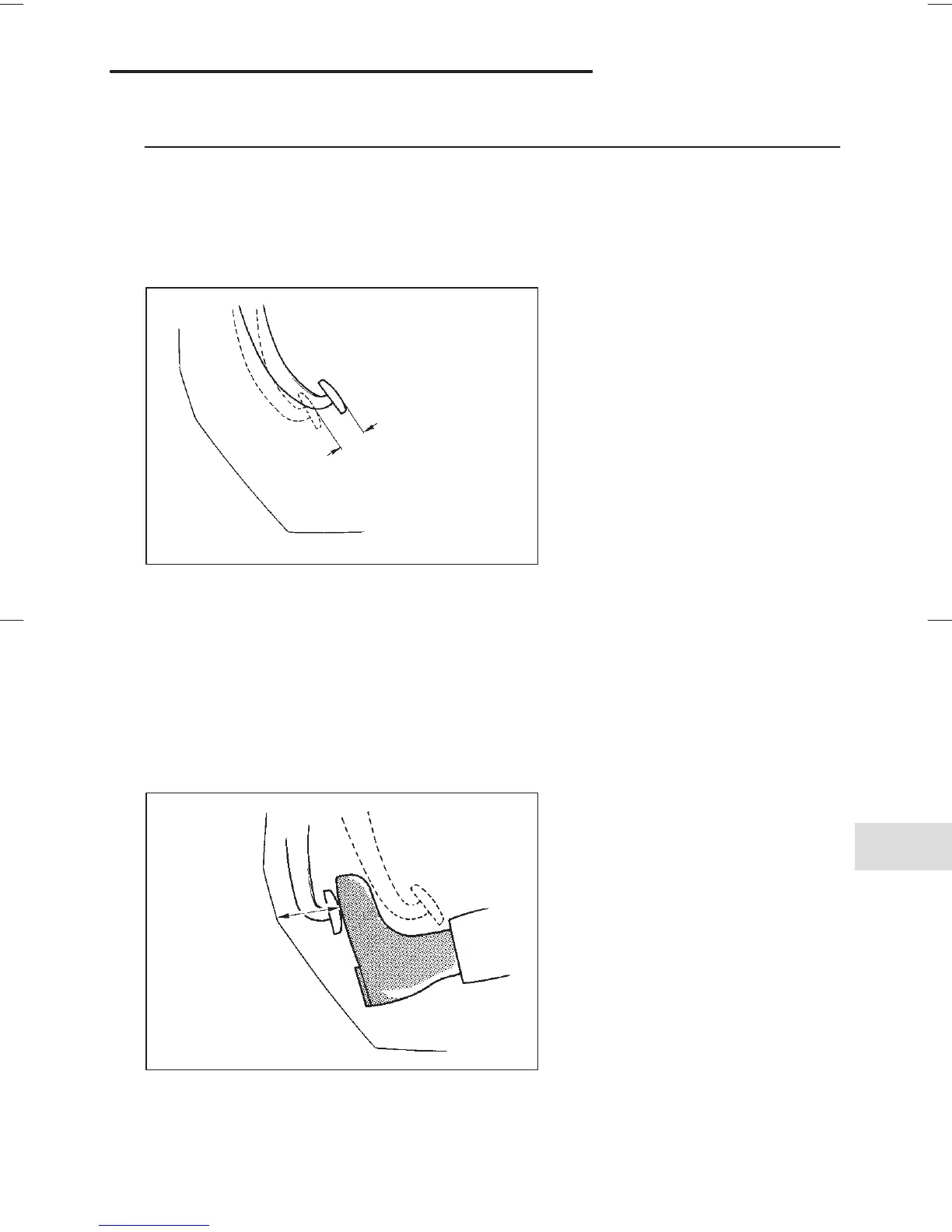

B Checking the brake pedal free play
OM-H0224
0.04 — 0.12 in
(1.0 — 3.0 mm)
Stop the engine and firmly depress the brake pedal several times.
Lightly press the brake pedal down with one finger to check the free
play with a force of less than 10 N (2 lb, 1 kg).
If the free play is not within proper specification, contact your
SUBARU dealer.
B Checking the brake pedal reserve distance
OM-H0225
More than
2.56 in
(65 mm)
Depress the pedal with a force of approximately 294 N (66 lb, 30 kg)
