Subaru ER12 - Page 23

- 19 -

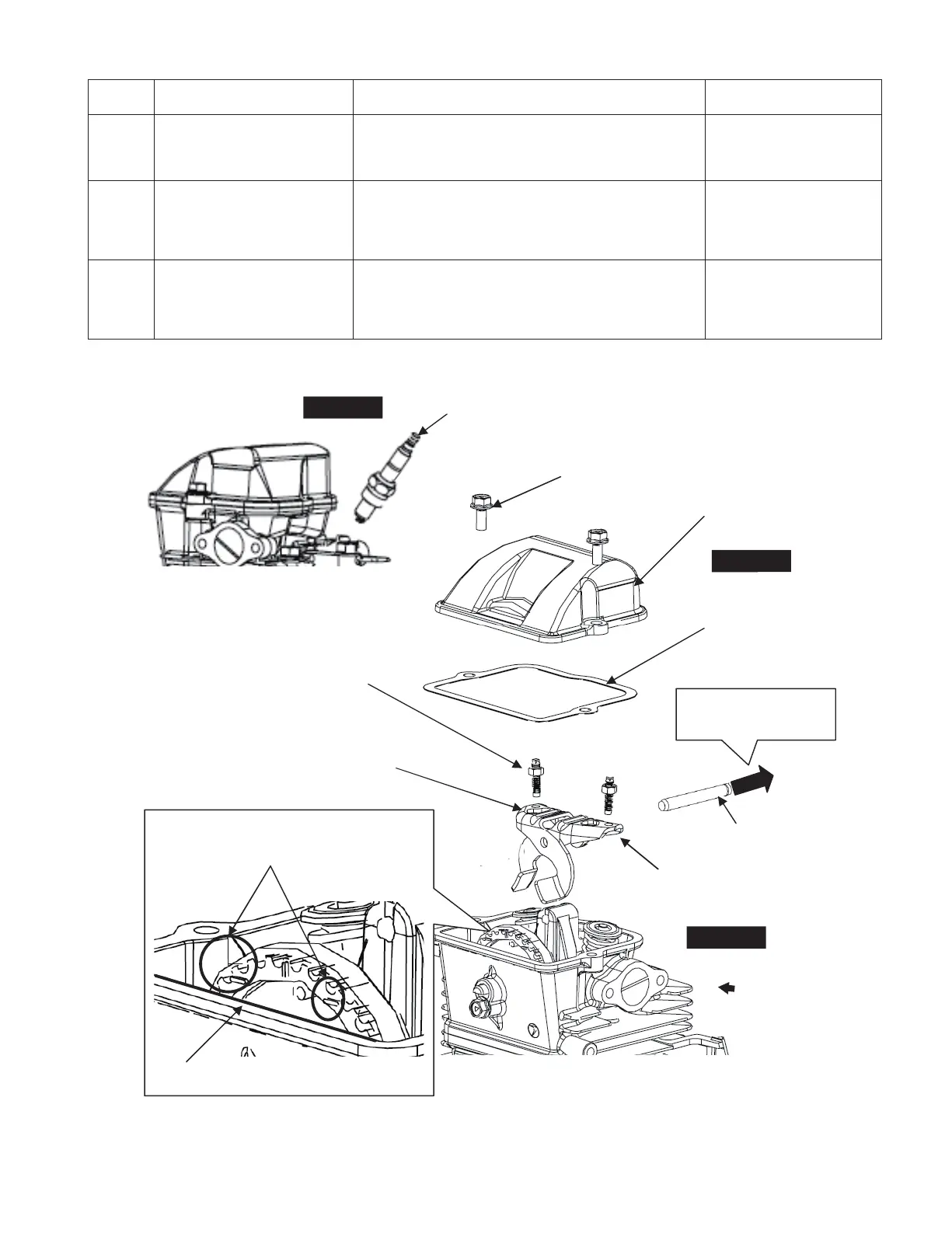

Step Parts to remove Remarks and procedures Fasteners
11
Spark plug Remove the spark plug from the cylinder head 16mm plug wrench
12
Rocker cover (1) Remove the rocker cover from the cylinder head 
(2) Remove the gasket (rocker cover)
10mm box spanner
M6×14mm : 2pcs
13
Rocker arm Remove the pin (rocker arm)and the rocker arm from
the cylinder head at the compression top dead center
(See Fig4-c)
Pliers
Matching mark
Remove the pin the
allow direction
Cylinder head surface
M6×20 FLANGE BOLT : 2pcs.
ROCKER COVER
ADJUSTMENT SCREW, NUT
GASKET
(ROCKER COVER)
ROCKER ARM
(EXHAUST SIDE)
PIN(ROCKER)
ROCKER ARM
(INTAKE SIDE)
STEP 12
STEP 13
A
VIEW A
SPARK PLUG
STEP 11
Fig4-c
