Subaru ER12 - Page 24

- 20 -
Step Parts to remove Remarks and procedures Fasteners
14
Oil pump Remove oil pump cover o-ring outer rotor and inner
rotor
8mm box wrench
M6×12mm:4pcs

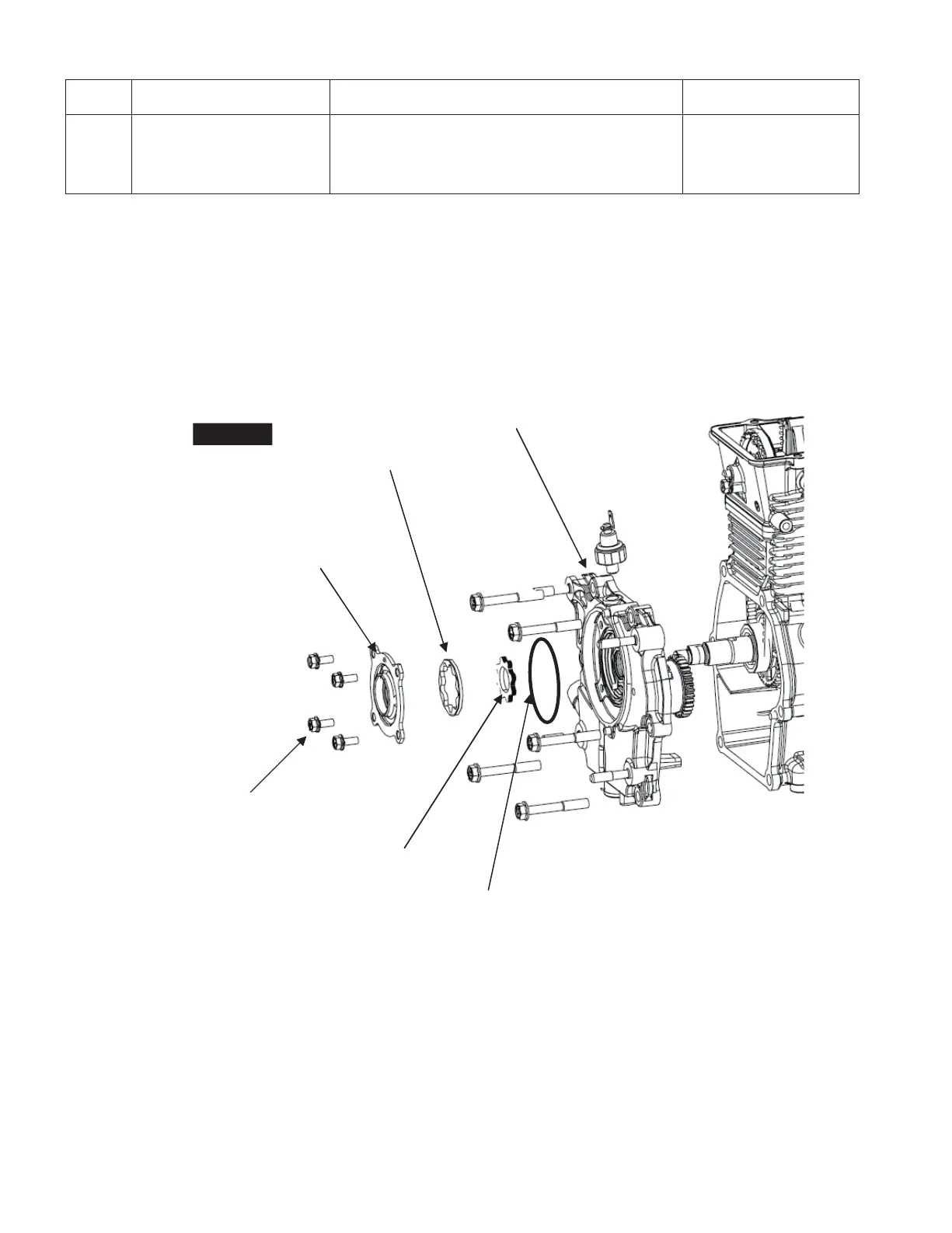

STEP 14
MAIN BEARING COVER
OUTER ROTOR
OIL PUMP COVER
M6×12
FLANGE BOLT:4pcs.
INNER ROTOR
O-RING
(SYNTHETIC RUBBER)
